azmater.com Fiber reinforced polymers (FRPs) offer lightweight, high strength, and corrosion resistance, making them suitable for brake discs in performance vehicles. Ceramic matrix composites (CMCs) provide superior thermal stability, wear resistance, and high-temperature performance, ideal for high-demand braking applications.
Table of Comparison
| Property | Fiber Reinforced Polymer (FRP) | Ceramic Matrix Composite (CMC) |
|---|---|---|
| Material Composition | Polymer matrix reinforced with fibers (carbon, glass) | Ceramic matrix reinforced with ceramic fibers (silicon carbide) |
| Temperature Resistance | Up to 150degC - 200degC | Up to 1200degC - 1400degC |
| Weight | Lightweight, 1.2 - 1.6 g/cm3 | Lightweight to moderate, 2.7 - 3.3 g/cm3 |
| Thermal Conductivity | Low (0.2 - 0.5 W/m*K) | Moderate to high (10 - 30 W/m*K) |
| Mechanical Strength | High tensile strength, moderate compressive strength | High compressive and tensile strength, excellent fracture toughness |
| Wear Resistance | Moderate, prone to wear under high friction | Excellent, suitable for extreme brake conditions |
| Cost | Lower cost, mass producible | Higher cost, complex manufacturing |
| Corrosion Resistance | Good, polymer matrix resists corrosion | Excellent, ceramic nature resists oxidation and corrosion |
| Typical Applications | Passenger car brake discs, moderate performance | High-performance brake discs, aerospace, racing |
Introduction to Advanced Brake Disc Materials
Fiber reinforced polymers (FRPs) and ceramic matrix composites (CMCs) represent cutting-edge materials for advanced brake discs, offering superior performance under extreme conditions. FRPs provide high strength-to-weight ratios and excellent corrosion resistance, making them ideal for lightweight, high-efficiency braking systems. CMCs excel in thermal stability and wear resistance at elevated temperatures, surpassing traditional metals to improve braking reliability and lifespan in high-performance automotive and aerospace applications.
Overview of Fiber Reinforced Polymer (FRP) Composites
Fiber Reinforced Polymer (FRP) composites are engineered materials consisting of a polymer matrix reinforced with fibrous materials such as carbon, glass, or aramid fibers, offering high strength-to-weight ratios and excellent corrosion resistance. Commonly utilized in brake discs, FRP composites provide enhanced thermal stability and fatigue resistance compared to traditional metals, reducing overall vehicle weight and improving fuel efficiency. Their tailored mechanical properties and cost-effective manufacturing processes make FRP composites a versatile choice for automotive braking systems.
Overview of Ceramic Matrix Composites (CMC)
Ceramic Matrix Composites (CMCs) for brake discs offer superior thermal stability and wear resistance compared to Fiber Reinforced Polymers (FRPs), making them ideal for high-performance applications requiring extreme heat dissipation. CMCs consist of ceramic fibers embedded in a ceramic matrix, providing enhanced fracture toughness and reduced weight while maintaining strength at elevated temperatures exceeding 1000degC. Their inherent resistance to oxidation and thermal shock extends brake disc lifespan under rigorous conditions, outperforming conventional polymer-based composites.
Mechanical Properties Comparison: FRP vs CMC
Fiber reinforced polymers (FRPs) exhibit high tensile strength and excellent toughness but have lower thermal stability compared to ceramic matrix composites (CMCs), which offer superior hardness and wear resistance under high temperatures. CMCs demonstrate exceptional mechanical performance in brake discs due to their ability to maintain structural integrity and resist thermal degradation at elevated temperatures above 1000degC. While FRPs provide lightweight characteristics and good impact resistance, CMCs outperform them in stiffness, compressive strength, and thermal conductivity, crucial for high-performance braking applications.
Thermal Performance and Heat Resistance
Fiber reinforced polymers (FRPs) exhibit excellent thermal insulation properties and moderate heat resistance, making them suitable for brake discs requiring reduced thermal conductivity and weight savings. Ceramic matrix composites (CMCs) provide superior thermal stability and can sustain extreme temperatures exceeding 1200degC without degradation, ensuring consistent braking performance under high thermal loads. The high heat resistance and thermal shock tolerance of CMCs make them preferable for high-performance and heavy-duty brake applications where prolonged exposure to intense heat is common.
Wear Resistance and Longevity
Fiber reinforced polymers (FRPs) in brake discs offer moderate wear resistance but generally degrade faster under high thermal loads compared to ceramic matrix composites (CMCs). Ceramic matrix composites demonstrate superior wear resistance due to their hardness and thermal stability, significantly enhancing brake disc longevity in high-performance applications. CMCs maintain structural integrity under extreme temperatures, reducing wear rates and extending service life beyond what FRPs can typically achieve.
Weight, Density, and Impact on Vehicle Efficiency
Fiber reinforced polymers (FRPs) offer significantly lower weight and density compared to ceramic matrix composites (CMCs), contributing to reduced unsprung mass in brake disc applications. FRPs typically have densities around 1.5-2.0 g/cm3, while CMCs range from 2.7 to 3.2 g/cm3, making FRPs advantageous for lightweight vehicle design. The lower mass of FRP brake discs enhances vehicle efficiency by improving acceleration, braking response, and fuel economy through decreased rotational inertia and overall weight.
Cost Analysis and Manufacturing Considerations
Fiber reinforced polymer (FRP) brake discs offer lower material and manufacturing costs due to scalable production techniques like molding and curing, whereas ceramic matrix composites (CMC) involve higher costs driven by complex sintering and machining processes. FRPs provide weight savings beneficial for performance vehicles but may require more frequent replacement, impacting long-term cost-efficiency compared to the superior wear resistance and thermal stability of CMCs. Manufacturing CMC brake discs demands specialized high-temperature processing and stringent quality control, significantly increasing initial investment and lead time relative to the more established, cost-effective FRP fabrication methods.
Applications in Automotive and Aerospace Sectors
Fiber reinforced polymer (FRP) brake discs offer lightweight properties and excellent corrosion resistance, making them ideal for automotive applications focused on fuel efficiency and cost-effectiveness. Ceramic matrix composites (CMCs) provide superior thermal stability and wear resistance, essential for high-performance aerospace braking systems subjected to extreme temperatures and repeated thermal cycling. The automotive sector benefits from FRP's adaptability and lower production costs, while aerospace leverages CMCs for enhanced durability and performance in demanding flight conditions.
Future Trends and Innovations in Brake Disc Materials
Fiber reinforced polymer (FRP) brake discs offer lightweight advantages and corrosion resistance, but future innovations are shifting toward ceramic matrix composites (CMCs) due to their superior thermal stability and wear resistance at high temperatures. Advances in nanoparticle reinforcement and hybrid material designs aim to enhance the mechanical properties and lifespan of CMC brake discs while maintaining reduced weight compared to traditional metals. Emerging additive manufacturing techniques also enable intricate CMC structures, promoting improved heat dissipation and performance in high-demand automotive and aerospace braking systems.

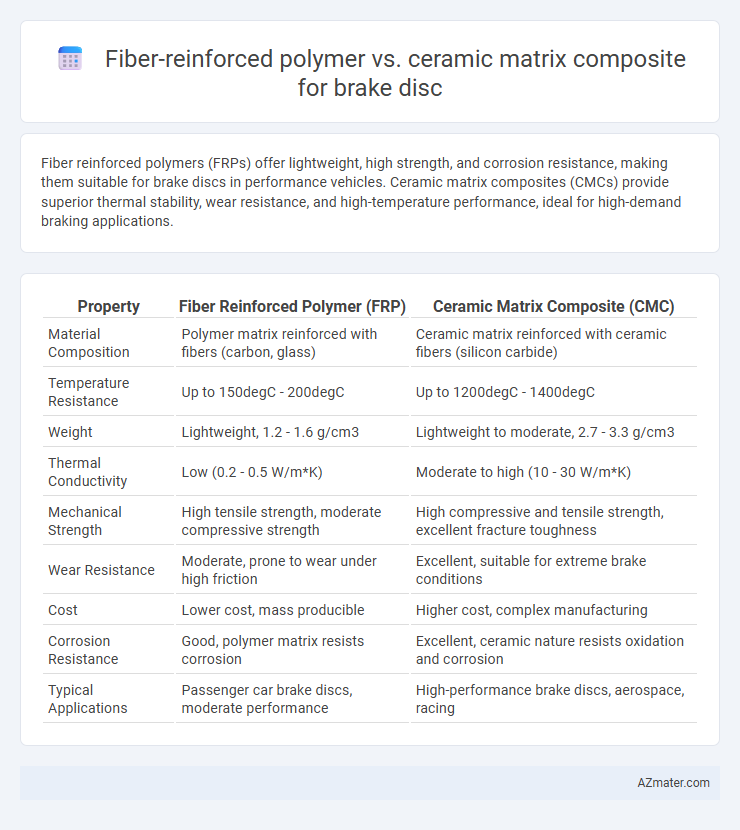

Infographic: Fiber reinforced polymer vs Ceramic matrix composite for Brake disc
