azmater.com Structural insulated panels (SIPs) offer superior thermal insulation with R-values typically ranging from 14 to 28, providing fast installation and high strength-to-weight ratio. Insulated concrete forms (ICFs) combine massive thermal mass and airtightness with R-values around 20 to 25, delivering excellent soundproofing and durability for wall construction.
Table of Comparison
| Feature | Structural Insulated Panel (SIP) | Insulated Concrete Form (ICF) |
|---|---|---|
| Material Composition | Foam core sandwiched between OSB (or plywood) | Plastic foam blocks filled with reinforced concrete |
| Thermal Insulation (R-Value) | R-14 to R-28 per panel thickness | R-20 to R-40, varies with block type and thickness |
| Structural Strength | High tensile strength, load-bearing panel | Very high compressive strength from concrete core |
| Installation Speed | Fast assembly, prefabricated panels | Moderate, requires block stacking and concrete pouring |
| Moisture Resistance | Good when properly sealed; potential for water intrusion if damaged | Excellent; concrete core resists water and mold |
| Fire Resistance | Moderate; foam core can be fire-retardant treated | High; concrete core provides superior fire rating |
| Cost | Moderate initial cost; labor-efficient | Higher material and labor cost |
| Energy Efficiency | Excellent due to continuous insulation | Superior thermal mass and insulation combined |
| Common Applications | Residential walls, roofs, floors | Basements, exterior walls, hurricane-resistant buildings |
Introduction to Modern Wall Construction Methods
Structural insulated panels (SIPs) employ a sandwich of rigid foam insulation between oriented strand board (OSB) layers, offering high thermal performance and rapid assembly ideal for energy-efficient buildings. Insulated concrete forms (ICFs) consist of hollow foam blocks or panels filled with reinforced concrete, providing superior strength, excellent insulation, and enhanced soundproofing. Both methods represent advancements in modern wall construction, emphasizing sustainability, durability, and improved thermal resistance for residential and commercial projects.
What Are Structural Insulated Panels (SIPs)?
Structural Insulated Panels (SIPs) consist of a rigid foam core sandwiched between two structural facings, typically oriented strand board (OSB), offering superior thermal insulation and structural strength for walls. SIPs provide airtight building envelopes, reducing energy loss and accelerating construction time compared to traditional framing methods. Their engineered design enhances load-bearing capacity and moisture resistance, making them an efficient option for residential and commercial wall systems.
Understanding Insulated Concrete Forms (ICFs)
Insulated Concrete Forms (ICFs) are modular units made of rigid foam insulation that are stacked and filled with reinforced concrete to create energy-efficient, durable walls with high thermal mass. ICF walls provide superior air sealing and insulation compared to Structural Insulated Panels (SIPs), making them ideal for extreme climates and soundproofing applications. The combination of continuous insulation and concrete core in ICFs delivers enhanced fire resistance, moisture control, and structural strength over traditional wood or SIP construction methods.
Thermal Performance: SIPs vs ICFs
Structural insulated panels (SIPs) offer superior thermal performance due to their continuous rigid foam core that minimizes thermal bridging and enhances insulation uniformity. Insulated concrete forms (ICFs) provide strong thermal mass benefits with their hollow foam blocks filled with concrete, maintaining stable indoor temperatures by absorbing and slowly releasing heat. SIPs typically achieve higher R-values per inch compared to ICFs, but ICFs excel in thermal inertia, making both efficient choices depending on climate and energy goals.
Structural Strength and Durability Comparison
Structural insulated panels (SIPs) offer high structural strength due to their rigid foam core sandwiched between oriented strand board (OSB), providing excellent load-bearing capacity and resistance to shear forces. Insulated concrete forms (ICFs) deliver superior durability with reinforced concrete cores that resist wind, fire, and pests, while maintaining excellent compressive strength and longevity. Comparing both, SIPs provide faster construction and consistent insulation with good structural integrity, whereas ICFs excel in robustness, impact resistance, and long-term durability for walls subjected to extreme conditions.
Installation Process: SIPs vs ICFs
Structural insulated panels (SIPs) offer a faster, more straightforward installation process due to their prefabricated nature, which allows walls to be erected quickly with fewer tools and labor compared to insulated concrete forms (ICFs). ICF installation requires stacking foam blocks and then filling them with concrete, demanding skilled labor and additional curing time, which can extend the overall construction schedule. SIPs provide a more precise fit and reduced on-site waste, while ICFs excel in structural robustness and sound insulation but require more complex handling during installation.
Cost Analysis: Initial Investment and Long-Term Savings
Structural insulated panels (SIPs) typically have a higher initial investment due to factory fabrication and specialized installation, but they offer superior thermal performance that can reduce energy costs over time. Insulated concrete forms (ICFs) may require lower upfront material costs and provide exceptional durability and thermal mass, contributing to long-term energy savings and reduced maintenance expenses. Analyzing lifecycle costs reveals that SIPs often yield faster returns on investment through improved insulation efficiency, while ICFs deliver savings through enhanced structural resilience and longevity.
Energy Efficiency and Sustainability Factors
Structural insulated panels (SIPs) offer exceptional energy efficiency due to their continuous insulation and airtight construction, significantly reducing thermal bridging and heat loss. Insulated concrete forms (ICFs) provide superior thermal mass and airtightness, enhancing energy conservation by stabilizing indoor temperatures and minimizing heating and cooling demands. Both systems contribute to sustainability by reducing operational energy use, with SIPs typically using less embodied energy in manufacturing, while ICFs offer enhanced durability and potential for recycled content in concrete materials.
Common Applications and Suitability
Structural insulated panels (SIPs) are commonly used in residential and light commercial construction due to their superior thermal performance and quick installation, making them ideal for walls requiring high energy efficiency and airtightness. Insulated concrete forms (ICFs) are favored in foundations, load-bearing walls, and extreme climate zones because of their strength, durability, and excellent thermal mass properties, suitable for buildings demanding enhanced structural integrity and soundproofing. Both systems excel in energy efficiency, but SIPs are better suited for faster construction timelines, while ICFs provide enhanced resistance to natural disasters and longer-lasting structural performance.
Choosing the Best Wall System: SIPs or ICFs?
Structural insulated panels (SIPs) offer superior thermal insulation and faster installation with prefabricated panels composed of rigid foam sandwiched between oriented strand board, making them ideal for energy-efficient walls. Insulated concrete forms (ICFs) combine reinforced concrete with insulating foam blocks to provide exceptional strength, soundproofing, and resistance to extreme weather, suited for durable and disaster-resistant construction. Selecting between SIPs and ICFs depends on priorities like energy performance, construction speed, durability, and budget, with SIPs excelling in rapid assembly and ICFs offering long-term structural resilience.

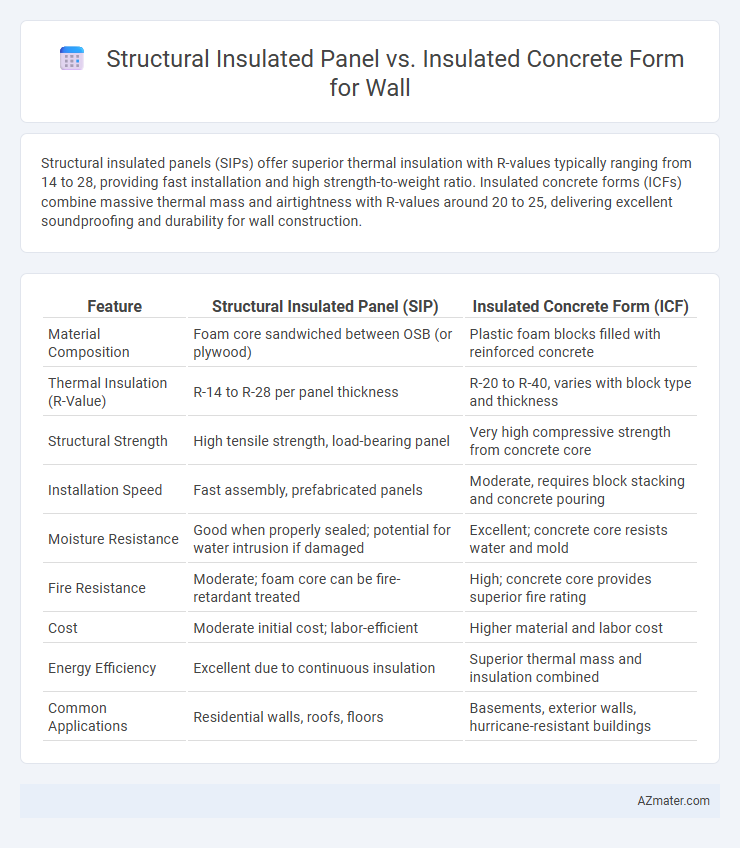

Infographic: Structural insulated panel vs Insulated concrete form for Wall
