Silicon nitride vs. porcelain for ball bearings - What is The Difference?

Silicon nitride ball bearings offer superior hardness, high-temperature resistance, and lower density compared to porcelain, making them ideal for high-speed and high-precision applications. Porcelain bearings provide excellent corrosion resistance and electrical insulation but lack the mechanical strength and thermal stability of silicon nitride.

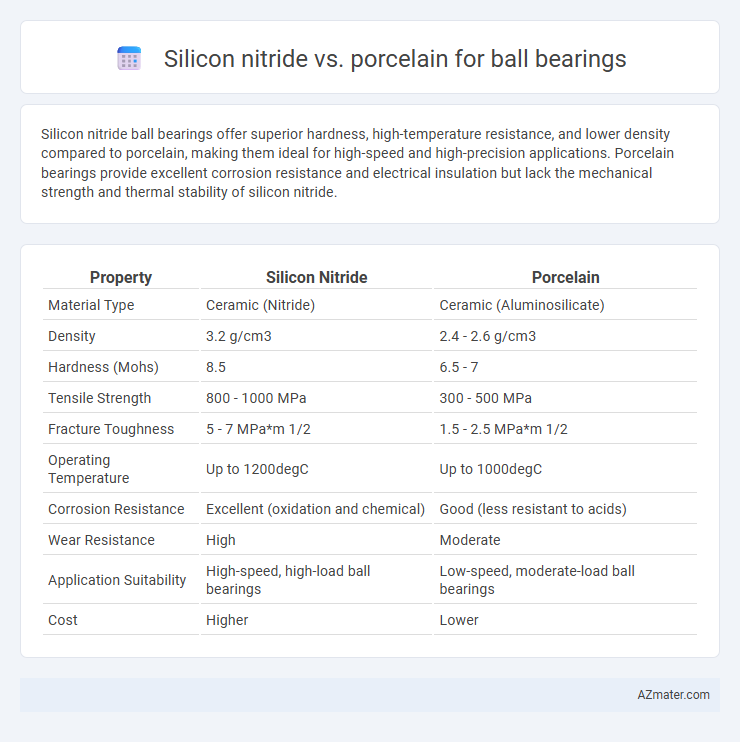

Table of Comparison

Introduction to Ball Bearing Materials

Silicon nitride and porcelain represent two distinct materials used in ball bearings, each offering unique properties for varied applications. Silicon nitride is a high-performance ceramic known for its exceptional hardness, low density, and excellent thermal stability, making it ideal for high-speed and high-temperature environments. Porcelain, typically composed of alumina and kaolin, provides good wear resistance and corrosion resistance in more traditional, low-to-moderate load applications but lacks the advanced mechanical strength of silicon nitride.

Overview of Silicon Nitride Ball Bearings

Silicon nitride ball bearings offer superior performance due to their high hardness, low density, and excellent thermal stability compared to porcelain counterparts. These ceramic bearings provide enhanced wear resistance, lower friction, and increased speed capabilities, making them ideal for high-precision and high-speed applications. Their corrosion resistance and ability to operate in extreme environments further distinguish silicon nitride from porcelain materials in ball bearing manufacturing.

Overview of Porcelain Ball Bearings

Porcelain ball bearings are made from high-quality ceramic materials, primarily alumina, offering excellent corrosion resistance and electrical insulation properties. These bearings provide lower density compared to steel, resulting in reduced weight and improved speed capabilities, but they generally exhibit higher brittleness than silicon nitride alternatives. Porcelain ball bearings are widely used in electrical motors, pumps, and applications where chemical stability and resistance to harsh environments are critical.

Material Composition and Structure Comparison

Silicon nitride ball bearings consist of a dense ceramic material composed primarily of silicon and nitrogen atoms bonded in a covalent network, providing high hardness, low density, and excellent thermal stability. Porcelain ball bearings are made from alumina (aluminum oxide) mixed with other ceramic additives, resulting in a material with a crystalline structure that offers good wear resistance but higher density and lower fracture toughness compared to silicon nitride. The covalent bonding in silicon nitride creates a smoother surface finish and greater resistance to thermal shock, while porcelain's microstructure leads to increased brittleness and susceptibility to cracking under high-stress conditions.

Strength and Durability Analysis

Silicon nitride ball bearings exhibit superior strength and durability compared to porcelain due to their exceptional fracture toughness and resistance to thermal shock. The intrinsic hardness of silicon nitride enhances wear resistance, ensuring longer lifespan under high-load and high-speed conditions. Porcelain, while corrosion-resistant and chemically stable, demonstrates lower mechanical strength and is more prone to brittle failure under impact or fluctuating stress.

Wear and Friction Performance

Silicon nitride ball bearings exhibit superior wear resistance and significantly lower friction coefficients compared to porcelain bearings, enhancing durability and efficiency in high-speed applications. The ceramic structure of silicon nitride provides excellent hardness and thermal stability, reducing adhesive wear and extending service life under extreme operating conditions. Porcelain bearings, while corrosion-resistant, generally show higher friction losses and faster wear rates, limiting their effectiveness in precision or high-load environments.

Thermal Resistance and Operating Temperatures

Silicon nitride ball bearings exhibit superior thermal resistance with an operating temperature range up to approximately 1000degC, compared to porcelain bearings, which generally withstand temperatures only up to around 600degC. The high thermal stability of silicon nitride reduces the risk of deformation and maintains hardness at elevated temperatures, enhancing bearing performance in high-speed and high-temperature applications. Porcelain bearings, while corrosion-resistant, have lower thermal conductivity and are more prone to thermal expansion, limiting their use in extreme heat environments.

Corrosion and Chemical Resistance

Silicon nitride ball bearings exhibit superior corrosion and chemical resistance compared to porcelain due to their non-porous, chemically inert ceramic structure, which prevents degradation in harsh environments. Porcelain bearings, while resistant to some chemicals, tend to absorb moisture and can crack or weaken under prolonged exposure to aggressive substances or fluctuating pH conditions. The inherent durability of silicon nitride against acidic and alkaline environments makes it the preferred choice for applications requiring exceptional chemical stability and minimal corrosion risk.

Cost and Availability Considerations

Silicon nitride ball bearings typically have a higher upfront cost than porcelain bearings due to advanced manufacturing processes and material properties that enhance performance under high-speed and high-temperature conditions. Porcelain bearings offer more widespread availability and lower initial expense, making them suitable for applications with less demanding mechanical requirements. Cost efficiency and procurement speed often make porcelain the preferred choice where extreme durability and efficiency from silicon nitride are not critical factors.

Application Suitability and Industry Use Cases

Silicon nitride ball bearings excel in high-speed, high-temperature, and corrosive environments due to their low density, high hardness, and excellent thermal stability, making them ideal for aerospace, automotive turbochargers, and semiconductor manufacturing. Porcelain ball bearings feature superior electrical insulation and chemical resistance, commonly used in electrical motor applications, food processing, and chemical industries where contamination and electrical conductivity must be minimized. The application suitability of silicon nitride emphasizes mechanical performance and longevity under extreme conditions, while porcelain bearings prioritize chemical resistance and insulating properties for specialized industrial use cases.
