azmater.com Ceramic foam offers superior porosity and lightweight properties, enhancing sensitivity in piezoelectric sensors. Barium titanate ceramic provides high dielectric constant and excellent piezoelectric coefficients, making it ideal for precise signal detection.
Table of Comparison
| Property | Ceramic Foam | Barium Titanate Ceramic |
|---|---|---|
| Structure | Porous, lightweight, high surface area | Dense, crystalline perovskite structure |
| Piezoelectric Coefficient (d33) | Low to moderate (typically <50 pC/N) | High (up to 191 pC/N) |
| Dielectric Constant | Low, dependent on porosity | High (er 1000 - 5000) |
| Mechanical Strength | Lower, fragile due to porosity | High mechanical durability |
| Sensitivity | Lower sensitivity due to structure | High sensitivity, ideal for sensors |
| Application Suitability | Lightweight filters, low-cost sensors | High-performance piezoelectric sensors |
| Operating Temperature | Variable, limited by matrix | Up to ~130degC in typical use |
Introduction to Piezoelectric Sensors
Piezoelectric sensors convert mechanical stress into electrical signals using materials with strong piezoelectric properties like barium titanate ceramic, known for high dielectric constant and sensitivity. Ceramic foam structures enhance sensor performance by providing lightweight, porous geometries that improve energy absorption and signal response. Comparing ceramic foam to dense barium titanate ceramic highlights trade-offs between mechanical flexibility and piezoelectric efficiency critical in sensor design.
Overview of Ceramic Foam Materials
Ceramic foam materials, characterized by their porous structure and high surface area, offer lightweight and flexible options for piezoelectric sensors, enhancing sensitivity and mechanical compliance. Compared to dense barium titanate ceramics, ceramic foams exhibit improved energy absorption and noise reduction, making them suitable for dynamic sensing applications. The interconnected pores in ceramic foams facilitate efficient stress distribution, which is critical for optimizing piezoelectric performance in lightweight sensor designs.
Properties of Barium Titanate Ceramic
Barium titanate ceramic exhibits high dielectric constant and excellent ferroelectric properties, making it highly sensitive for piezoelectric sensor applications. Its strong piezoelectric coefficients and stability under varying temperature conditions enhance sensor precision and durability. Compared to ceramic foam, barium titanate offers superior electrical insulation and mechanical strength, critical for high-performance piezoelectric devices.
Structural Differences: Ceramic Foam vs. Barium Titanate
Ceramic foam features a highly porous, sponge-like structure that provides lightweight properties and increased mechanical damping, ideal for applications requiring vibration isolation. Barium titanate ceramic, in contrast, possesses a dense, crystalline perovskite structure with uniform grain distribution, enabling strong piezoelectric responses due to its intrinsic ferroelectric domains. These structural differences significantly impact sensor performance, where ceramic foam excels in robustness and flexibility, while barium titanate offers superior sensitivity and electromechanical coupling in piezoelectric sensors.
Piezoelectric Response Comparison
Ceramic foam exhibits a lower piezoelectric response compared to barium titanate ceramic due to its porous structure, which reduces the material's effective piezoelectric coefficient. Barium titanate ceramics provide a high d33 coefficient, often exceeding 200 pC/N, resulting in stronger electromechanical coupling and enhanced sensitivity in piezoelectric sensors. The dense microstructure and intrinsic ferroelectric properties of barium titanate lead to superior piezoelectric performance, making it more suitable for high-precision sensing applications than ceramic foam.
Sensitivity and Performance Metrics
Ceramic foam offers a lightweight, porous structure that enhances mechanical sensitivity but may suffer from lower dielectric constants compared to dense ceramics like Barium titanate. Barium titanate ceramic exhibits high piezoelectric coefficients (d33 values up to 200 pC/N) and superior electromechanical coupling, resulting in elevated sensitivity and stability in sensor applications. Performance metrics such as signal-to-noise ratio and frequency response are typically higher in Barium titanate sensors, making them more suitable for precision piezoelectric sensing than ceramic foam composites.
Durability and Mechanical Strength
Ceramic foam exhibits high mechanical strength due to its porous structure, providing excellent durability under compression but limited rigidity compared to dense materials. Barium titanate ceramic offers superior piezoelectric properties combined with high mechanical strength, ensuring long-term durability in dynamic sensing applications. The dense microstructure of barium titanate ceramic enhances resistance to mechanical fatigue and fracture, making it more reliable for precision piezoelectric sensors than ceramic foam.
Cost and Manufacturing Considerations
Ceramic foam typically offers lower production costs due to simpler manufacturing processes and reduced material usage compared to dense Barium titanate ceramic, which requires precise sintering and high-purity raw materials. Barium titanate ceramics, while more expensive, provide superior piezoelectric properties essential for high-sensitivity sensors, justifying their higher manufacturing complexity. Cost-efficiency in ceramic foam makes it suitable for large-scale, less sensitive applications, whereas Barium titanate's advanced characteristics dominate in precision-demanding piezoelectric sensor markets.
Application Suitability in Sensor Design
Ceramic foam offers a lightweight, porous structure that enhances sensitivity by increasing surface area, making it ideal for applications requiring flexible and low-density piezoelectric sensors. Barium titanate ceramic exhibits superior dielectric properties and high piezoelectric coefficients, providing precise and stable sensor outputs suitable for high-accuracy pressure and ultrasonic sensors. Choosing between ceramic foam and barium titanate depends on application demands: ceramic foam excels in wearable and flexible sensors, while barium titanate is preferred for rigid, high-performance sensor designs.
Future Trends in Piezoelectric Material Development
Ceramic foam offers lightweight structures with enhanced mechanical flexibility, making it suitable for next-generation piezoelectric sensors requiring high sensitivity and durability in flexible applications. Barium titanate ceramic remains a pivotal material due to its strong ferroelectric properties, enabling precise energy conversion and miniaturized device integration. Future trends in piezoelectric material development emphasize hybrid composites combining ceramic foam's porosity with barium titanate's high permittivity to achieve improved electromechanical coupling and multifunctional sensor capabilities.

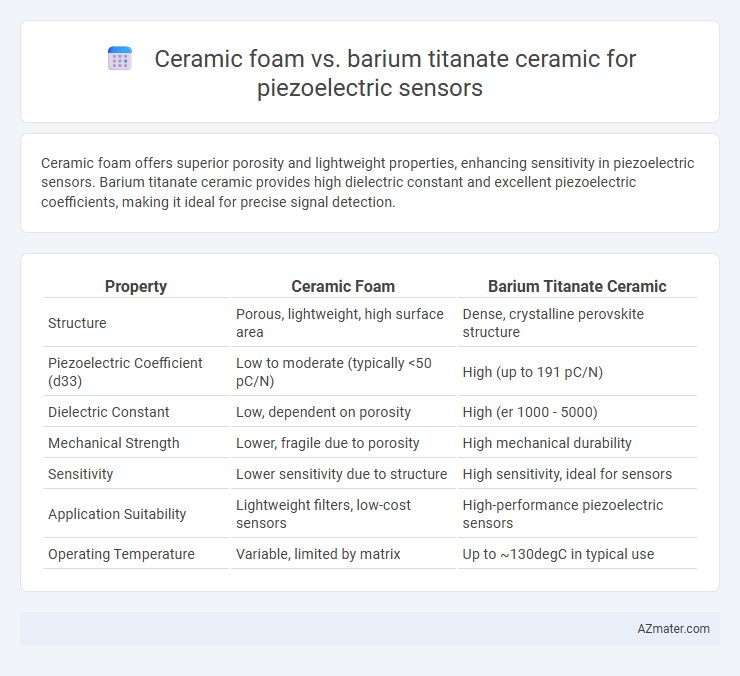

Infographic: Ceramic foam vs Barium titanate ceramic for Piezoelectric sensor
