azmater.com Polyphenylene oxide (PPO) offers superior thermal stability and dielectric strength compared to Polyvinyl chloride (PVC), making it more suitable for high-performance electrical insulation applications. PPO also demonstrates better chemical resistance and dimensional stability, enhancing its reliability in demanding electrical environments.
Table of Comparison
| Property | Polyphenylene Oxide (PPO) | Polyvinyl Chloride (PVC) |
|---|---|---|
| Electrical Insulation | High dielectric strength, excellent insulating properties | Good dielectric strength, commonly used in electrical cables |
| Thermal Stability | High thermal resistance up to 200degC | Moderate thermal stability up to 80degC |
| Moisture Resistance | Low moisture absorption, stable in humid conditions | Moderate moisture resistance, can degrade over time |
| Mechanical Strength | High impact resistance and dimensional stability | Good flexibility but lower impact strength |
| Chemical Resistance | Excellent resistance to oils and solvents | Resistant to acids and alkalis, but less so to solvents |
| Flame Retardancy | Self-extinguishing, UL 94 V-0 rating | Flame retardant grades available, often requires additives |
| Typical Applications | High-performance electrical connectors, circuit boards | Wiring insulation, cable jacketing, general-purpose insulation |
| Cost | Higher cost, specialized applications | Lower cost, widely used |
Introduction to Polyphenylene Oxide and Polyvinyl Chloride
Polyphenylene oxide (PPO) is a high-performance thermoplastic known for its excellent electrical insulating properties, thermal stability, and resistance to moisture and chemicals, making it ideal for demanding electrical applications. Polyvinyl chloride (PVC) is a widely used polymer in electrical insulation due to its cost-effectiveness, flexibility, and good resistance to electrical breakdown and flame retardancy. Comparing PPO with PVC, PPO offers superior thermal endurance and dimensional stability, while PVC remains favored for its versatility and ease of processing in general electrical insulation tasks.
Chemical Structure and Composition Comparison
Polyphenylene oxide (PPO) features a rigid aromatic backbone composed of phenylene rings connected by oxygen atoms, providing excellent thermal stability and electrical insulating properties. In contrast, polyvinyl chloride (PVC) consists of a saturated hydrocarbon chain with pendant chloride groups, which impart flame retardancy but limit thermal resistance. The aromatic ether structure of PPO results in superior dielectric strength and aging resistance compared to the semi-rigid vinyl polymer structure of PVC, making PPO more suitable for high-performance electrical insulation applications.
Thermal Stability and Heat Resistance
Polyphenylene oxide (PPO) offers superior thermal stability and heat resistance compared to polyvinyl chloride (PVC), with a continuous use temperature often exceeding 120degC, whereas PVC typically maxes out around 70-80degC. PPO maintains its mechanical integrity and electrical insulating properties at elevated temperatures, making it ideal for high-temperature electrical insulation applications. In contrast, PVC tends to degrade, soften, and release harmful fumes under sustained heat exposure, limiting its use in high-heat environments.
Electrical Insulation Properties
Polyphenylene oxide (PPO) exhibits superior electrical insulation properties compared to polyvinyl chloride (PVC), including higher dielectric strength and lower dielectric constant, which enhances its performance in high-frequency applications. PPO's excellent thermal stability ensures consistent insulation integrity under elevated temperatures, making it ideal for demanding electrical environments. In contrast, PVC tends to have higher dielectric losses and lower thermal resistance, limiting its effectiveness in advanced electrical insulation systems.
Mechanical Strength and Durability
Polyphenylene oxide (PPO) offers superior mechanical strength and excellent durability compared to polyvinyl chloride (PVC) when used for electrical insulation, ensuring resistance to impact and deformation under stress. PPO maintains dimensional stability and resists thermal aging, chemical exposure, and environmental degradation better than PVC, which is prone to plasticizer migration and embrittlement over time. These characteristics make PPO ideal for high-performance electrical insulation applications requiring long-lasting mechanical resilience.
Moisture Absorption and Environmental Resistance
Polyphenylene oxide (PPO) offers superior moisture absorption resistance compared to polyvinyl chloride (PVC), maintaining electrical insulation properties in high-humidity conditions. PPO exhibits enhanced environmental resistance, including better thermal stability and chemical inertness, which prolongs insulation performance under harsh environmental stresses. PVC, while cost-effective, tends to absorb more moisture and degrade faster when exposed to UV radiation and chemicals, limiting its reliability in demanding electrical insulation applications.
Flame Retardancy and Safety Considerations
Polyphenylene oxide (PPO) exhibits superior flame retardancy compared to Polyvinyl chloride (PVC) due to its inherent thermal stability and low smoke emission during combustion, making it a safer choice for electrical insulation. PVC, while cost-effective and widely used, tends to release hydrochloric acid and toxic gases when exposed to fire, posing significant safety hazards. PPO's higher limiting oxygen index (LOI) and resistance to ignition enhance its suitability in applications demanding stringent fire safety standards.
Processing and Manufacturing Differences
Polyphenylene oxide (PPO) offers superior thermal stability and dimensional stability compared to polyvinyl chloride (PVC), making it well-suited for high-performance electrical insulation applications requiring consistent dielectric properties under heat stress. PPO processes through injection molding and extrusion with higher melt temperatures around 270-300degC, demanding advanced equipment and controlled cooling to maintain mechanical integrity, whereas PVC processes at lower temperatures (160-200degC) with greater ease but may require plasticizers and stabilizers affecting long-term electrical performance. Manufacturing with PPO involves fewer additives, resulting in cleaner processing and improved environmental resistance, while PVC's extensive use of additives can introduce variability in insulation resistance and thermal degradation behavior over time.
Cost Analysis and Market Availability
Polyphenylene oxide (PPO) offers superior thermal stability and electrical insulation properties compared to polyvinyl chloride (PVC), but its higher raw material and processing costs limit its adoption in cost-sensitive applications. PVC remains the dominant choice in electrical insulation due to its low cost, ease of processing, and widespread market availability, accounting for a significant share in global insulation markets. Market data indicates PVC's price advantage and scalability position it as a preferred material for mass production, while PPO's niche applications justify its premium pricing in high-performance insulation sectors.
Applications in Electrical Insulation Industry
Polyphenylene oxide (PPO) offers superior thermal stability and electrical insulating properties compared to polyvinyl chloride (PVC), making it ideal for high-performance electrical insulation applications such as connectors, switches, and circuit breakers. PPO's low dielectric constant and high heat distortion temperature enhance durability and safety in electrical housings and components subjected to elevated temperatures. In contrast, PVC is commonly used for general-purpose wire insulation due to its cost-effectiveness and flexibility but lacks the thermal resistance required for advanced electronic applications.

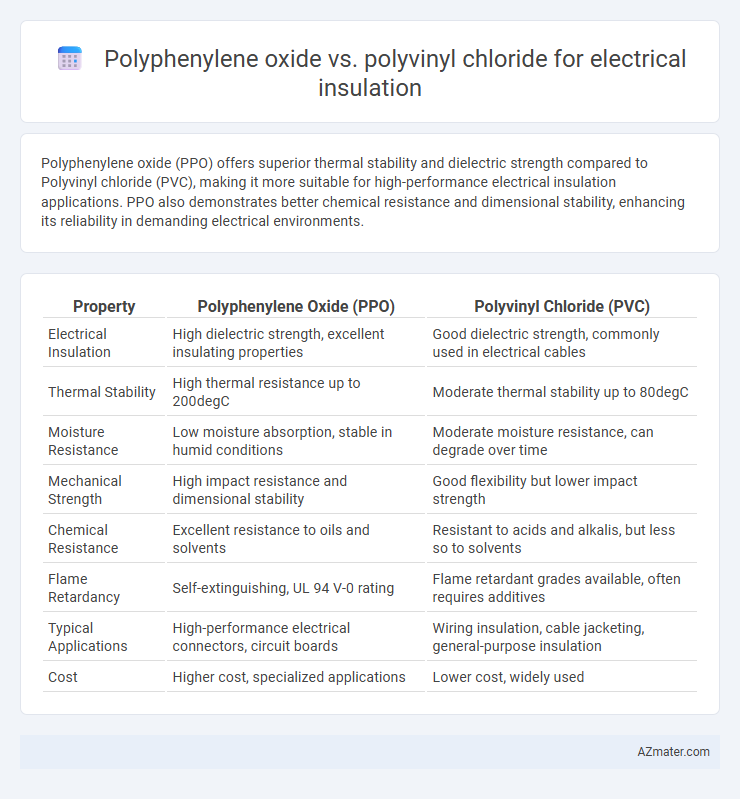

Infographic: Polyphenylene oxide vs Polyvinyl chloride for Electrical insulation
