azmater.com Polymethyl methacrylate (PMMA) offers excellent optical clarity and rigidity but limited thermal stability, making it less ideal for flexible printed circuits (FPCs) subjected to high temperatures. Polyimide provides superior thermal resistance, mechanical flexibility, and chemical stability, making it the preferred substrate for durable and high-performance flexible printed circuits.
Table of Comparison
| Property | Polymethyl Methacrylate (PMMA) | Polyimide (PI) |
|---|---|---|
| Flexibility | Moderate, limited bending endurance | High, excellent bending and flex durability |
| Thermal Stability | Up to 100degC | Up to 400degC |
| Dielectric Strength | 15-20 kV/mm | 50-300 kV/mm |
| Moisture Absorption | Low, around 0.3% | Very Low, less than 0.1% |
| Chemical Resistance | Moderate resistance to solvents | High resistance to chemicals and solvents |
| Transparency | High (transparent) | Opaque |
| Typical Applications | Rigid lenses, displays | Flexible printed circuits, insulators |
| Cost | Lower cost | Higher cost |
Introduction to Flexible Printed Circuits
Flexible printed circuits (FPCs) require materials that balance flexibility, thermal stability, and dielectric properties, making polymethyl methacrylate (PMMA) and polyimide critical candidates. Polyimide offers exceptional thermal resistance up to 400degC and excellent mechanical flexibility, ideal for high-performance FPC applications. In contrast, PMMA provides good optical clarity and electrical insulation but with lower thermal endurance, limiting its use in high-temperature flexible electronics.
Overview of Polymethyl Methacrylate (PMMA)
Polymethyl methacrylate (PMMA) is a transparent thermoplastic commonly used as a flexible printed circuit substrate due to its excellent optical clarity, high tensile strength, and resistance to UV radiation. It offers superior dimensional stability and ease of processing compared to polyimide, making it suitable for applications where rigidity and transparency are critical. PMMA's lower thermal resistance compared to polyimide limits its use in high-temperature environments but provides a lightweight, cost-effective alternative for flexible electronics.
Overview of Polyimide (PI)
Polyimide (PI) is a high-performance polymer widely used in flexible printed circuits (FPC) due to its exceptional thermal stability, chemical resistance, and mechanical strength. Unlike polymethyl methacrylate (PMMA), polyimide can withstand continuous operating temperatures above 200degC without degradation, making it ideal for high-temperature electronics applications. Its excellent dielectric properties and flexibility contribute to superior reliability and longevity in demanding flexible circuit designs.
Mechanical Properties Comparison
Polymethyl methacrylate (PMMA) exhibits high rigidity and excellent tensile strength but limited flexibility, making it less ideal for highly dynamic flexible printed circuits (FPCs). Polyimide offers superior mechanical flexibility, outstanding thermal stability, and excellent resistance to mechanical fatigue, enabling it to endure repeated bending and flexing without degradation. The intrinsic toughness and elongation capabilities of polyimide surpass those of PMMA, making it the preferred substrate for flexible electronic applications requiring durability and mechanical resilience.
Thermal Stability and Heat Resistance
Polymethyl methacrylate (PMMA) exhibits moderate thermal stability with a glass transition temperature around 105degC, making it less suitable for high-temperature applications in flexible printed circuits. Polyimide, on the other hand, demonstrates exceptional heat resistance and thermal stability, withstanding continuous exposure up to 260degC and short-term peaks exceeding 400degC. The superior thermal endurance of polyimide ensures reliable performance and longevity in flexible printed circuits subjected to harsh thermal environments.
Electrical Performance Analysis
Polymethyl methacrylate (PMMA) exhibits lower dielectric constant and loss tangent, enhancing signal integrity for high-frequency Flexible Printed Circuits (FPCs), while Polyimide demonstrates superior thermal stability and dielectric strength, enabling reliable electrical performance under harsh operating conditions. PMMA's electrical resistivity ranges around 10^16 ohm*cm, favoring low leakage currents, whereas Polyimide offers a dielectric constant typically between 3.4 and 3.5 with excellent insulation resistance, critical for minimizing cross-talk and signal attenuation. The choice between PMMA and Polyimide for FPC substrates hinges on balancing electrical conductivity requirements with thermal and mechanical endurance, optimizing overall circuit performance.
Flexibility and Bending Endurance
Polymethyl methacrylate (PMMA) offers moderate flexibility but lower bending endurance compared to polyimide, which exhibits superior mechanical resilience and maintains structural integrity under repeated flexing. Polyimide's exceptional thermal stability and high tensile strength contribute to its ability to endure millions of bending cycles without cracking, making it ideal for flexible printed circuits (FPCs) in demanding applications. While PMMA is cost-effective and transparent, its relatively brittle nature limits performance in high-flex environments where durability and long-term flexibility are critical.
Chemical Resistance and Environmental Stability
Polymethyl methacrylate (PMMA) offers moderate chemical resistance but is susceptible to degradation when exposed to strong solvents and UV radiation, which limits its environmental stability in flexible printed circuits. Polyimide exhibits superior chemical resistance against acids, bases, and solvents, maintaining mechanical integrity and electrical performance under extreme thermal and environmental conditions. The enhanced thermal stability and resistance to moisture and chemicals make polyimide the preferred choice for flexible printed circuits requiring long-term durability in harsh environments.
Cost Analysis and Availability
Polymethyl methacrylate (PMMA) offers a lower-cost solution for flexible printed circuits due to its widespread commercial availability and simpler production processes compared to polyimide, which is significantly more expensive because of its high-performance thermal and chemical resistance properties. Polyimide, while pricier, provides superior mechanical flexibility and thermal stability, making it ideal for high-reliability applications despite limited supplier options and longer lead times. Cost analysis reveals that PMMA enables cost-effective prototyping and low-volume manufacturing, whereas polyimide's availability challenges and premium pricing justify its selection primarily in advanced electronics requiring enhanced durability.
Application Suitability in Flexible Electronics
Polymethyl methacrylate (PMMA) offers excellent optical clarity and good mechanical strength, making it suitable for flexible displays and touchscreens in flexible electronics. Polyimide provides superior thermal stability, chemical resistance, and flexibility, which are critical for high-performance flexible printed circuits (FPCs) used in wearable devices and medical sensors. The choice between PMMA and polyimide depends on specific application requirements such as heat resistance, flexibility, and environmental durability in flexible electronic components.

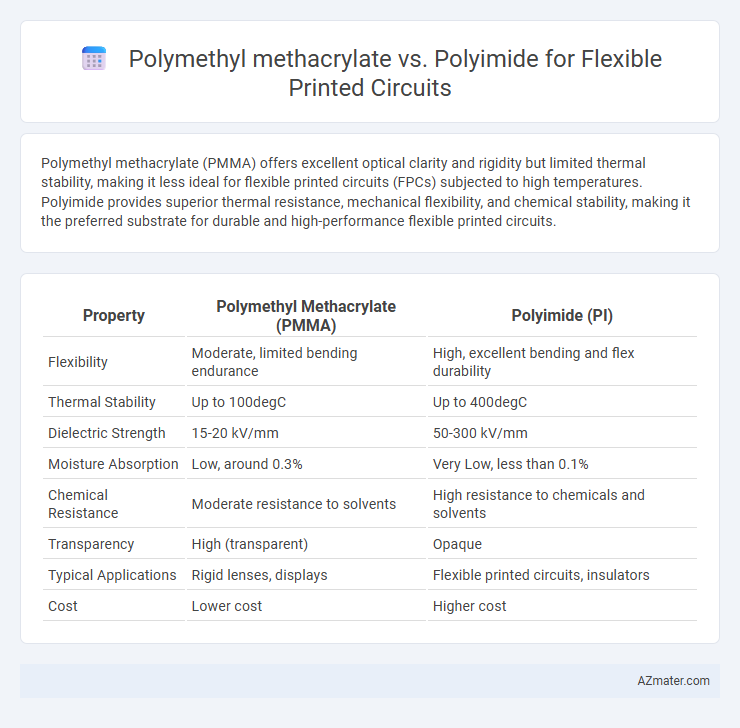

Infographic: Polymethyl methacrylate vs Polyimide for Flexible Printed Circuit
