Polylactic Acid vs. Polyphenylene Sulfide for Electronic Components - What is The Difference?

Polylactic acid (PLA) offers biodegradability and ease of processing for electronic components but has lower thermal stability and mechanical strength compared to Polyphenylene sulfide (PPS). Polyphenylene sulfide provides superior chemical resistance, high heat tolerance up to 260degC, and excellent dimensional stability, making it ideal for high-performance electronic applications.

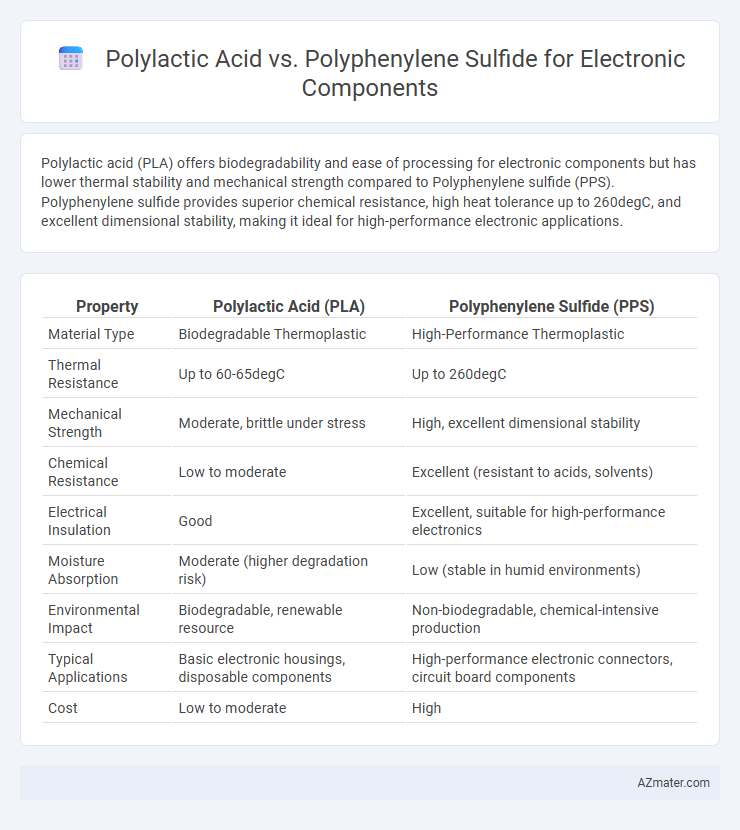

Table of Comparison

Introduction to Polylactic Acid and Polyphenylene Sulfide

Polylactic acid (PLA) is a biodegradable thermoplastic derived from renewable resources like corn starch, frequently used in electronic components for its environmental benefits and ease of processing. Polyphenylene sulfide (PPS) is a high-performance engineering thermoplastic known for its excellent thermal stability, chemical resistance, and mechanical strength, making it ideal for demanding electronic applications. The distinct properties of PLA and PPS influence their selection based on requirements such as sustainability, durability, and electrical insulation in electronic component manufacturing.

Material Composition and Chemical Structure Comparison

Polylactic acid (PLA) is a biodegradable thermoplastic derived from renewable resources like corn starch, consisting of linear aliphatic polyester chains with ester linkages that provide moderate thermal resistance but limited chemical stability. Polyphenylene sulfide (PPS), an aromatic polymer with a backbone of repeating phenylene rings linked by sulfur atoms, offers exceptional chemical inertness, high thermal stability, and excellent dimensional stability suitable for demanding electronic components. The rigid aromatic structure and sulfur linkages in PPS enable superior performance in harsh environments compared to the more flexible, hydrolyzable ester bonds in PLA.

Mechanical Properties in Electronic Applications

Polylactic acid (PLA) exhibits high stiffness and biodegradability, making it suitable for lightweight electronic housings but lacks thermal resistance and impact strength compared to Polyphenylene sulfide (PPS). PPS offers superior mechanical properties including excellent dimensional stability, high tensile strength, and outstanding chemical resistance, which are critical for electronic components exposed to harsh environments. The choice between PLA and PPS depends on whether biodegradability or durability under thermal and chemical stress is prioritized in electronic applications.

Thermal Stability and Heat Resistance

Polyphenylene sulfide (PPS) exhibits superior thermal stability and heat resistance compared to polylactic acid (PLA), with PPS maintaining structural integrity at continuous service temperatures up to 240degC, while PLA degrades above 60degC. PPS's high melting point (~280degC) and excellent dimensional stability under thermal stress make it ideal for electronic components exposed to high operational temperatures. In contrast, PLA's lower thermal resistance limits its use to low-temperature applications, especially where thermal endurance and long-term heat exposure are critical.

Electrical Insulation Performance

Polylactic acid (PLA) demonstrates moderate electrical insulation properties with a dielectric strength typically around 20-30 kV/mm, making it suitable for low-stress electronic components. Polyphenylene sulfide (PPS) outperforms PLA with superior electrical insulation, exhibiting a higher dielectric strength of approximately 35-45 kV/mm and excellent resistance to high temperature and chemical exposure. PPS is preferred in demanding electronic applications requiring durability and consistent dielectric performance under thermal and environmental stress.

Environmental Impact and Sustainability

Polylactic acid (PLA) offers significant environmental benefits for electronic components due to its biodegradability and derivation from renewable resources like corn starch, reducing reliance on fossil fuels and lowering carbon emissions. In contrast, polyphenylene sulfide (PPS) is a petroleum-based thermoplastic with high thermal and chemical resistance but poses challenges for sustainability because it is non-biodegradable and difficult to recycle. Choosing PLA supports eco-friendly manufacturing practices and aligns with circular economy principles, while PPS emphasizes durability and performance at the expense of environmental impact.

Processing and Manufacturability

Polylactic acid (PLA) offers ease of processing with low melting temperatures around 150-160degC, enabling cost-effective injection molding for electronic components with good dimensional stability. Polyphenylene sulfide (PPS) has a higher melting point near 285degC, requiring specialized high-temperature processing equipment but providing superior chemical resistance and thermal stability in manufacturing. PPS's robust manufacturability supports complex, high-performance electronic parts, whereas PLA suits applications demanding biodegradable materials with simpler processing.

Cost Analysis and Economic Viability

Polylactic acid (PLA) offers a biodegradable and cost-effective alternative for electronic components, with raw material costs significantly lower than polyphenylene sulfide (PPS), which is a high-performance thermoplastic known for its superior thermal stability and chemical resistance. Although PPS demands higher initial investment due to complex synthesis and processing expenses, its enhanced durability and resistance contribute to longer component life and reduced maintenance costs, justifying the premium pricing in high-reliability applications. Cost analysis reveals PLA's economic viability in low to moderate thermal environments where sustainable materials are prioritized, whereas PPS remains the preferred choice for cost-intensive, high-performance electronics requiring stringent thermal and chemical robustness.

Application Suitability in Electronics

Polylactic acid (PLA) offers biodegradable and environmentally friendly properties ideal for low-stress electronic component housings, especially in consumer electronics where thermal resistance requirements are moderate. Polyphenylene sulfide (PPS) excels in high-performance electronic applications requiring excellent chemical resistance, thermal stability up to 260degC, and dimensional integrity under continuous electrical load, making it suitable for connectors, circuit boards, and automotive electronics. PPS outperforms PLA in durability and electrical insulation, positioning it as the preferred material for demanding industrial and high-temperature electronic environments.

Conclusion: Choosing the Right Polymer for Electronic Components

Polylactic acid (PLA) offers biodegradability and ease of processing, making it suitable for environmentally conscious electronic components with moderate thermal requirements. Polyphenylene sulfide (PPS) delivers superior thermal stability, chemical resistance, and mechanical strength, ideal for high-performance, durable electronic applications. Selecting the right polymer depends on balancing environmental impact with the specific thermal and mechanical demands of the electronic component's operating environment.
