azmater.com Tool steel offers superior hardness, wear resistance, and thermal stability essential for die applications, while alloy steel provides enhanced toughness and easier machinability. Selecting tool steel improves die longevity under high-stress conditions, whereas alloy steel is preferred for cost-effective, less demanding die tasks.
Table of Comparison
| Property | Tool Steel | Alloy Steel |
|---|---|---|
| Composition | High carbon, chromium, tungsten, vanadium | Iron with multiple alloying elements (e.g., manganese, nickel, chromium) |
| Hardness | Very high, suitable for cutting and shaping tools | Moderate to high, depends on alloying content |
| Wear Resistance | Excellent wear resistance, ideal for dies | Good wear resistance, but generally lower than tool steel |
| Toughness | Moderate, brittle under high stress | Higher toughness, more impact resistant |
| Heat Treatment | Requires precise heat treatment for optimal performance | Flexible heat treatment, improves toughness and strength |
| Cost | Higher due to specialized alloying and processing | Generally lower, more economical for bulk production |
| Application in Dies | Preferred for precision and durability in cutting dies | Used when toughness and impact resistance are prioritized |
Introduction to Tool Steel and Alloy Steel for Dies
Tool steel is a specialized steel primarily used for manufacturing dies due to its high hardness, wear resistance, and ability to retain shape at elevated temperatures. Alloy steel contains various alloying elements such as chromium, nickel, and molybdenum, enhancing strength, toughness, and corrosion resistance, making it suitable for less demanding die applications. The selection between tool steel and alloy steel for dies depends on the specific requirements of hardness, durability, and operational conditions.
Key Characteristics of Tool Steel
Tool steel is distinguished by its high hardness, excellent wear resistance, and ability to retain a sharp edge at elevated temperatures, making it ideal for die applications requiring precision and durability. It typically contains elements such as tungsten, molybdenum, and chromium, which enhance its toughness and heat resistance compared to alloy steel. Unlike alloy steel, tool steel maintains superior dimensional stability under repeated thermal cycling, ensuring longer die life and consistent performance in high-stress manufacturing environments.
Primary Properties of Alloy Steel
Alloy steel for dies exhibits enhanced hardness, toughness, and wear resistance due to added elements like chromium, molybdenum, and vanadium, which improve strength and oxidation resistance. Unlike tool steel, alloy steel offers better ductility and impact resistance, making it suitable for components subjected to high stress and dynamic loads. Its improved machinability and heat treatment response optimize performance in precision die applications.
Types of Tool Steels Used in Die Applications
Tool steels used in die applications primarily include water-hardening (W-grade), cold-work (A, D, O grades), and hot-work steels (H grades), each selected based on the specific die requirements such as wear resistance, hardness, and thermal stability. Alloy steels, while generally tougher and more ductile, are less common in high-wear die environments compared to tool steels, which offer superior hardness and resistance to abrasion and deformation. High-carbon, high-chromium tool steels like D2 and A2 are favored for cutting and forming dies due to their excellent wear resistance and dimensional stability during heat treatment.
Common Alloy Steels for Die Manufacturing
Common alloy steels used in die manufacturing include 4140, 4340, and AISI H13, known for their balance of toughness, wear resistance, and machinability. Tool steels like D2 and O1 offer higher hardness and wear resistance, making them ideal for cutting and forming dies requiring extended life. Alloy steels provide versatility and cost-effectiveness for less demanding die applications, while tool steels excel in high-stress environments with frequent impact and abrasion.
Hardness and Wear Resistance Comparison
Tool steel exhibits superior hardness and wear resistance compared to alloy steel, making it ideal for die applications that require high durability under repetitive stress. The high carbon and alloying elements such as tungsten and vanadium in tool steel enhance its ability to maintain a sharp edge and resist deformation during machining. Alloy steel, while offering good toughness and flexibility, typically falls short in hardness and wear resistance essential for long-lasting dies in high-impact environments.
Toughness and Durability in Die Performance
Tool steel offers superior toughness and durability compared to alloy steel, making it ideal for die applications that require high wear resistance and impact strength. Its composition, enriched with elements such as tungsten, molybdenum, and vanadium, enhances hardness retention and resistance to deformation under heavy loads. Alloy steel, while versatile and cost-effective, generally lacks the specialized properties necessary for the prolonged cyclic stresses encountered in die performance, resulting in shorter service life.
Machinability and Fabrication Differences
Tool steel exhibits superior hardness and wear resistance compared to alloy steel, making it ideal for dies subjected to high stress and abrasion. Alloy steel offers better machinability due to its lower carbon content and more uniform microstructure, allowing easier cutting, shaping, and welding processes. Fabrication of tool steel requires specialized techniques such as preheating and controlled cooling to avoid cracking, whereas alloy steel is more forgiving and versatile in common manufacturing operations.
Cost Considerations: Tool Steel vs Alloy Steel
Tool steel typically incurs higher upfront costs than alloy steel due to its superior hardness, wear resistance, and ability to maintain a sharp edge under high stress, making it ideal for die applications requiring precision and durability. Alloy steel offers a more cost-effective option with enhanced toughness and flexibility but may experience faster wear and require more frequent maintenance or replacement in demanding die environments. Evaluating total lifecycle expenses, including material cost, machining, heat treatment, and tool longevity, is crucial when choosing between tool steel and alloy steel for die manufacturing.
Choosing the Right Steel for Your Die Applications
Tool steel offers superior hardness, wear resistance, and toughness essential for die applications requiring precision and durability under high-stress conditions. Alloy steel provides greater flexibility with enhanced strength and machinability, making it suitable for dies subjected to moderate wear and impact. Selecting the right steel depends on specific die functions, load conditions, and desired lifespan, where tool steel excels in demanding environments while alloy steel suits cost-effective, general-purpose applications.

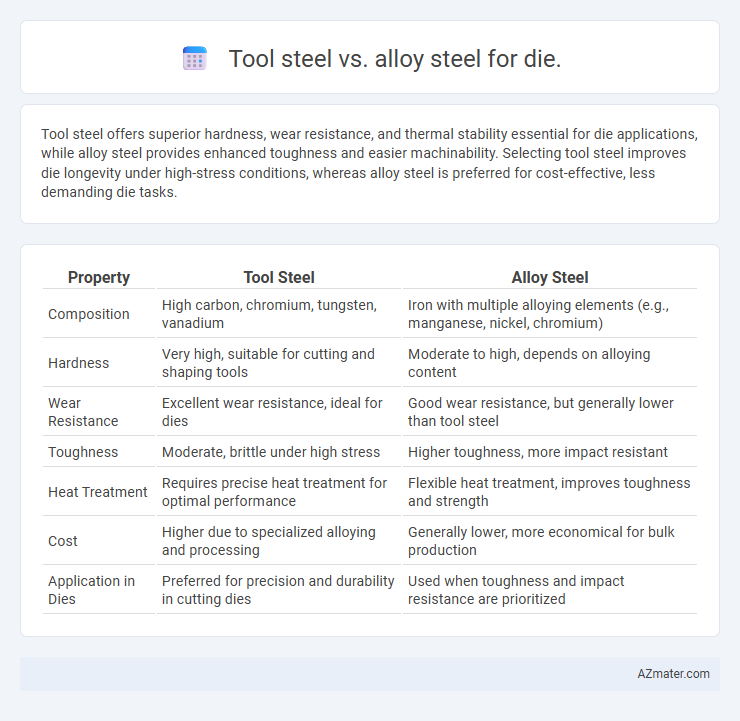

Infographic: Tool steel vs Alloy steel for Die
