Soda-lime glass vs. fused silica glass for optical lenses - What is The Difference?

Soda-lime glass offers cost-effective optical lenses with moderate thermal resistance and typical refractive index around 1.52, while fused silica glass provides superior UV transparency, low thermal expansion, and a higher damage threshold, making it ideal for precision optical applications requiring durability and clarity. Optical systems demanding high performance in harsh environments benefit significantly from fused silica's enhanced thermal stability and optical purity over soda-lime glass.

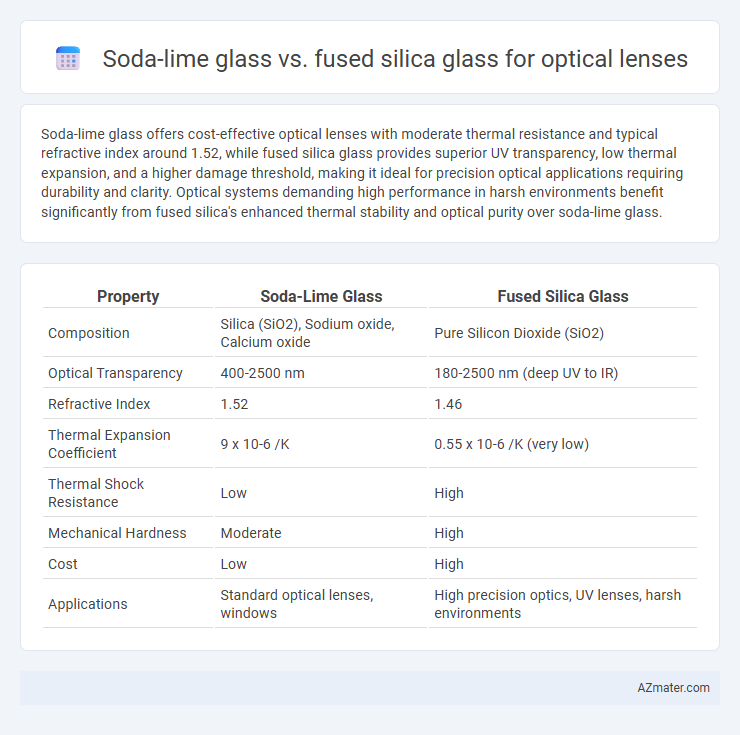

Table of Comparison

Introduction to Optical Lens Materials

Soda-lime glass, a common optical lens material, offers cost-effective manufacturing with moderate optical clarity and durability but has higher thermal expansion and lower UV transmission compared to fused silica glass. Fused silica glass provides superior optical performance due to its high purity, excellent UV transparency, low thermal expansion, and exceptional resistance to thermal shock, making it ideal for precision lenses in demanding optical applications. The choice between soda-lime and fused silica glass depends on balancing cost constraints with performance requirements in optical lens design.

Overview of Soda-Lime Glass

Soda-lime glass is the most common, cost-effective optical material composed mainly of silica, soda, and lime, offering moderate optical clarity and durability for lens applications. Its refractive index typically ranges between 1.5 and 1.52, providing adequate light transmission but lower thermal and chemical resistance compared to fused silica glass. Due to its affordability and ease of manufacturing, soda-lime glass is widely used in consumer-grade lenses and optical components where extreme performance is not critical.

Overview of Fused Silica Glass

Fused silica glass, composed primarily of high-purity silicon dioxide (SiO2), offers exceptional optical clarity and transmission across a wide ultraviolet to infrared spectrum, significantly outperforming soda-lime glass in thermal and chemical stability. Its low thermal expansion coefficient and superior resistance to thermal shock make it ideal for high-precision lenses used in lasers, photolithography, and scientific instrumentation. Unlike soda-lime glass, fused silica maintains consistent refractive index and minimal birefringence under extreme environmental conditions, ensuring enhanced image quality and durability in demanding optical applications.

Optical Properties Comparison

Soda-lime glass exhibits a refractive index around 1.5 and a dispersion (Abbe number) typically between 58 and 60, making it suitable for general optical applications but with moderate chromatic aberration control. Fused silica glass offers superior optical clarity with a refractive index near 1.46 and an exceptionally low dispersion (Abbe number approximately 67), resulting in minimized chromatic aberration and enhanced image resolution. Additionally, fused silica provides high UV transmission and thermal stability, outperforming soda-lime glass in precision optical lens applications.

Transmission and Transparency Differences

Soda-lime glass exhibits a visible light transmission rate of approximately 90%, with reduced transparency in the ultraviolet (UV) range due to higher absorption, making it less suitable for UV optics. Fused silica glass offers superior transmission exceeding 92% across a broad spectrum, including deep UV and infrared wavelengths, attributed to its high purity and low impurity content. The higher transparency and lower absorption of fused silica ensure enhanced optical performance and minimal signal loss in precision lens applications.

Thermal and Chemical Resistance

Soda-lime glass exhibits moderate thermal resistance with a typical softening point around softening point of 720degC, making it less suitable for high-temperature optical applications compared to fused silica glass, which withstands temperatures up to 1200degC due to its amorphous silicon dioxide structure. Chemically, fused silica glass offers superior resistance to acids and alkalis, maintaining stability in harsh environments, whereas soda-lime glass is more prone to chemical attack and degradation over time. These properties make fused silica the preferred choice for precision optical lenses requiring high durability in extreme thermal and chemical conditions.

Cost and Availability Factors

Soda-lime glass offers a significantly lower cost and higher availability compared to fused silica glass, making it a preferred choice for budget-sensitive optical lens applications. Fused silica glass, while more expensive due to its superior thermal and optical properties, is less commonly stocked and requires specialized manufacturing processes. The widespread production and distribution networks of soda-lime glass ensure rapid procurement and cost efficiency in large-scale optical lens fabrication.

Mechanical Strength and Durability

Soda-lime glass exhibits lower mechanical strength and reduced durability compared to fused silica glass due to its higher susceptibility to thermal and mechanical stress. Fused silica glass offers superior resistance to cracking and deformation, boasting a high tensile strength of approximately 48 MPa and excellent stability under extreme temperature fluctuations. The enhanced durability and strength of fused silica make it ideal for high-precision optical lenses requiring long-term reliability in harsh environments.

Typical Applications in Optics

Soda-lime glass is commonly used in low-cost, mass-produced optical lenses for applications like eyeglasses, camera lenses, and basic laboratory instruments due to its good optical clarity and affordability. Fused silica glass, with its superior thermal stability, high UV transmission, and low thermal expansion, is preferred in precision optical systems such as high-power laser optics, ultraviolet lithography, and scientific instrumentation. The enhanced durability and optical performance of fused silica make it ideal for demanding environments where minimal distortion and high resolution are critical.

Choosing the Right Material for Your Lens

Soda-lime glass offers affordability and ease of manufacturing with moderate optical clarity, making it suitable for general-purpose lenses where cost-effectiveness is crucial. Fused silica glass provides superior optical transparency, high thermal stability, and resistance to thermal shock, ideal for high-precision lenses in demanding environments such as UV and laser optics. Selecting the right material depends on balancing performance requirements, environmental conditions, and budget constraints for your specific optical application.
