azmater.com Recycled glass offers an eco-friendly and cost-effective material option but has lower UV transmittance and durability compared to fused quartz. Fused quartz provides superior UV transparency, thermal stability, and chemical resistance, making it the preferred choice for high-performance UV lamps.
Table of Comparison
| Property | Recycled Glass | Fused Quartz |
|---|---|---|
| UV Transmission | Limited, poor below 300 nm | Excellent, transmits down to 160 nm |
| Thermal Stability | Moderate, may deform at high heat | Very high, withstands up to 1200degC |
| Chemical Resistance | Moderate, prone to damage by acids | High resistance to chemicals and UV degradation |
| Cost | Lower, environmentally friendly | Higher, premium material |
| Durability | Lower, more brittle under stress | High mechanical strength and durability |
Introduction: Understanding UV Lamps
UV lamps utilize specific materials like recycled glass and fused quartz to optimize ultraviolet light transmission and durability. Recycled glass offers an eco-friendly option with moderate UV transmittance suitable for general purposes, while fused quartz provides superior UV clarity and heat resistance, essential for high-performance and industrial UV applications. Understanding the material properties directly influences the efficiency and lifespan of UV lamps in sterilization, curing, and analytical instruments.
What is Recycled Glass?
Recycled glass is made by melting down used glass materials such as bottles and jars, then reshaping them into new products. It offers environmental benefits by reducing raw material consumption and energy use compared to producing fused quartz, which is a highly pure, synthetic silica glass used for UV lamps due to its superior thermal and optical properties. While fused quartz provides optimal UV transmission and durability, recycled glass serves as a cost-effective, sustainable alternative in less demanding UV lamp applications.
What is Fused Quartz?
Fused quartz is a high-purity glass made from pure silica (SiO2) known for its exceptional transmission of ultraviolet (UV) light and outstanding thermal stability. Unlike recycled glass, which may contain impurities and variable UV transmittance, fused quartz offers superior durability and resistance to UV-related degradation, making it ideal for UV lamp applications. Its low coefficient of thermal expansion also ensures minimal distortion under high UV lamp operating temperatures.
UV Transmission Efficiency: Recycled Glass vs Fused Quartz
Fused quartz offers superior UV transmission efficiency, typically exceeding 90% in the UV range, making it ideal for high-performance UV lamps. Recycled glass has lower UV transmission, often between 60-80%, due to impurities and varying chemical compositions that absorb UV light. The superior purity and uniform structure of fused quartz minimize UV absorption, enhancing lamp output and longevity compared to recycled glass.
Durability and Lifespan Comparison
Recycled glass for UV lamps generally offers moderate durability with a typical lifespan of 1 to 2 years due to its susceptibility to thermal shock and chemical degradation. Fused quartz, by contrast, exhibits exceptional durability and can endure high temperatures and intense UV exposure for 5 to 10 years or more without significant degradation. The superior thermal stability and chemical resistance of fused quartz make it the preferred material for long-lasting UV lamp applications.
Cost Analysis of Materials
Recycled glass offers a cost-effective alternative to fused quartz for UV lamp production, typically reducing material expenses by 30-50% due to lower raw material and processing costs. Fused quartz, while more expensive, provides superior UV transmission and thermal stability, which can justify its higher price in high-performance applications. Manufacturers must balance initial material costs against long-term durability and efficiency to determine the optimal choice for specific UV lamp requirements.
Environmental Impact and Sustainability
Recycled glass used in UV lamps significantly reduces landfill waste and lowers the carbon footprint by repurposing existing materials, contributing to circular economy goals. Fused quartz, while offering superior UV transparency and durability, requires energy-intensive manufacturing processes that result in higher greenhouse gas emissions and resource depletion. Choosing recycled glass improves environmental sustainability through material conservation and reduced energy consumption, aligning with eco-friendly production practices.
Performance in High-Temperature Applications
Recycled glass exhibits lower thermal stability and a higher coefficient of thermal expansion compared to fused quartz, limiting its performance in high-temperature UV lamp applications. Fused quartz offers exceptional thermal shock resistance and maintains optical clarity at temperatures exceeding 1100degC, making it ideal for sustained exposure to intense UV radiation. Its superior durability and minimal devitrification ensure consistent performance and longer lifespan in demanding thermal conditions.
Common Uses and Industry Preference
Recycled glass is commonly used in UV lamp manufacturing due to its cost-effectiveness and sufficient UV transmission for general applications such as water purification and HVAC systems. Fused quartz, preferred in high-performance industries like semiconductor manufacturing and advanced medical sterilization, offers superior UV transmission and thermal stability critical for intense UV exposure. Industry preference favors fused quartz when durability and maximum UV efficiency are essential, while recycled glass suits budget-conscious projects with moderate UV requirements.
Choosing the Right Material for UV Lamps
Recycled glass offers cost-effective and eco-friendly properties but may have variable UV transmittance depending on its purity and composition. Fused quartz provides superior UV transparency, exceptional thermal stability, and durability, making it ideal for high-performance UV lamps. Selecting fused quartz over recycled glass ensures optimal UV output and longevity in applications requiring precise UV radiation management.

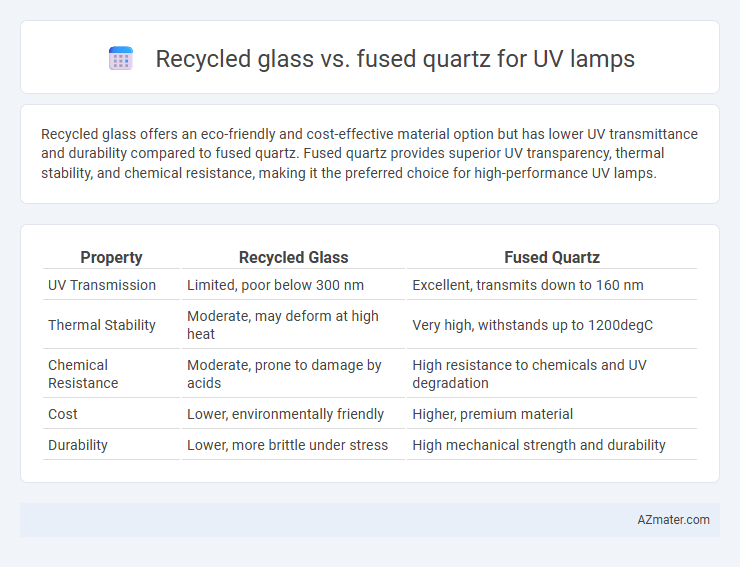

Infographic: Recycled glass vs Fused quartz for UV lamp
