Potash-lime glass offers cost-effective optical lenses with moderate refractive index and dispersion, suitable for everyday applications. Fused silica glass provides superior UV transparency, high thermal stability, and low thermal expansion, making it ideal for precision optics in demanding environments.

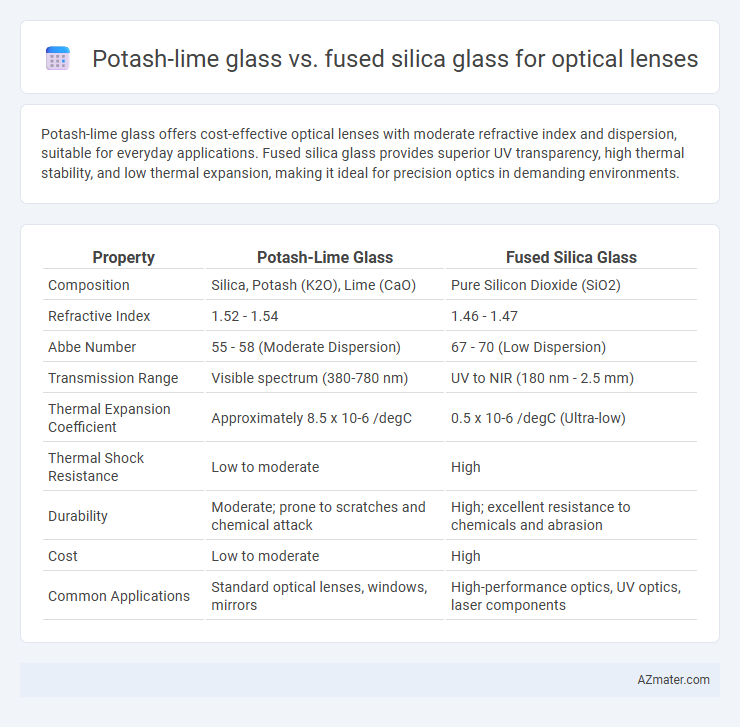

Table of Comparison

Introduction to Optical Lens Materials

Potash-lime glass offers moderate refractive index and dispersion, making it suitable for cost-effective optical lenses with acceptable image quality. Fused silica glass provides superior optical clarity, low thermal expansion, and high resistance to ultraviolet radiation, ideal for precision lenses in high-performance applications. Selection between potash-lime and fused silica glass depends on specific requirements such as durability, wavelength transmission, and manufacturing costs.

Overview of Potash-Lime Glass

Potash-lime glass is a common type of optical glass composed primarily of potassium oxide (K2O), calcium oxide (CaO), and silica (SiO2), offering good refractive properties suitable for lenses. Its higher refractive index and moderate dispersion make it effective for reducing chromatic aberration in optical systems compared to fused silica glass. Potash-lime glass is more cost-effective but has lower thermal and chemical resistance than fused silica, which limits its use in high-precision or high-temperature optical applications.

Overview of Fused Silica Glass

Fused silica glass, composed primarily of high-purity silicon dioxide, offers superior optical clarity, low thermal expansion, and exceptional resistance to thermal shock compared to potash-lime glass. Its high transmittance in ultraviolet wavelengths and excellent durability make it ideal for precision optical lens applications requiring stability under varying environmental conditions. Fused silica's ability to maintain optical performance at elevated temperatures outperforms potash-lime glass, supporting advanced uses in scientific instrumentation and high-power laser systems.

Transparency and Optical Clarity Comparison

Potash-lime glass typically exhibits high transparency in the visible spectrum but often has lower optical clarity compared to fused silica glass, which offers superior transmission with minimal internal defects and inclusions. Fused silica glass provides exceptional clarity and low birefringence, making it ideal for precision optical lenses requiring minimal distortion and high UV transmission. The inherent purity and homogeneity of fused silica result in better light transmission and reduced chromatic aberrations compared to potash-lime glass.

Refractive Index and Dispersion Differences

Potash-lime glass typically has a refractive index around 1.52 to 1.54 with moderate dispersion (Abbe number approximately 55), making it suitable for standard optical lenses requiring balanced image clarity and color correction. Fused silica glass exhibits a lower refractive index near 1.46 but features exceptionally low dispersion (Abbe number around 67), resulting in minimal chromatic aberration and superior wavelength stability for high-precision optical applications. The refractive index difference affects lens curvature design, while the dispersion disparity is critical in minimizing color fringing and enhancing image sharpness in complex optical systems.

Thermal Stability and Resistance

Potash-lime glass exhibits moderate thermal stability and resistance, with a coefficient of thermal expansion around 8.5 x 10^-6 /degC, which can lead to deformation under rapid temperature changes, limiting its use in high-precision optical lenses. Fused silica glass offers superior thermal stability and resistance due to its extremely low thermal expansion coefficient of approximately 0.5 x 10^-6 /degC, making it ideal for applications requiring minimal thermal distortion and high resistance to thermal shock. Its exceptional resistance to high temperatures and chemical corrosion makes fused silica the preferred material for demanding optical lenses in scientific and industrial settings.

Chemical Durability and Longevity

Potash-lime glass exhibits moderate chemical durability and is prone to surface degradation when exposed to moisture and acidic environments, which can shorten the lifespan of optical lenses. Fused silica glass offers superior chemical resistance due to its high purity silicon dioxide composition, making it highly resistant to corrosion and environmental wear, thereby ensuring greater longevity for optical applications. The enhanced stability and low thermal expansion of fused silica contribute to maintaining optical precision over extended periods under harsh conditions.

Cost-Effectiveness and Availability

Potash-lime glass offers a cost-effective solution for optical lenses due to its widespread availability and lower manufacturing expenses compared to fused silica glass. Fused silica glass, while significantly more expensive, provides superior optical clarity and thermal stability, making it ideal for high-precision applications. The choice between potash-lime and fused silica largely depends on budget constraints and performance requirements, with potash-lime favored in cost-sensitive projects and fused silica preferred for demanding optical environments.

Common Applications in Optics

Potash-lime glass is frequently used in low-cost optical lenses, including eyeglasses, camera lenses, and simple magnifiers, due to its moderate refractive index and ease of manufacture. Fused silica glass excels in high-precision optics such as laser systems, UV optical components, and high-performance lenses, prized for its exceptional thermal stability, low dispersion, and high transmission in ultraviolet and infrared wavelengths. The inherent differences in durability and optical clarity make potash-lime suitable for everyday applications, while fused silica is preferred in scientific and industrial optics requiring superior performance.

Choosing the Right Material for Optical Lenses

Potash-lime glass offers cost-effective manufacturing and moderate optical clarity, making it suitable for consumer-grade optical lenses, while fused silica glass provides superior thermal stability, extremely low thermal expansion, and high UV transparency essential for precision optics in scientific and industrial applications. The refractive index of potash-lime glass typically ranges from 1.52 to 1.54, whereas fused silica glass has a refractive index around 1.46, influencing lens design and performance. Selecting the right material depends on balancing factors such as budget, optical clarity requirements, thermal resilience, and wavelength transmission for optimal lens functionality.
