Ion-exchange glass vs. Fused silica glass for optical fiber - What is The Difference?

Ion-exchange glass offers enhanced refractive index control and mechanical strength compared to fused silica glass in optical fibers. Fused silica glass provides superior UV transparency and thermal stability, making it ideal for high-performance fiber optic applications.

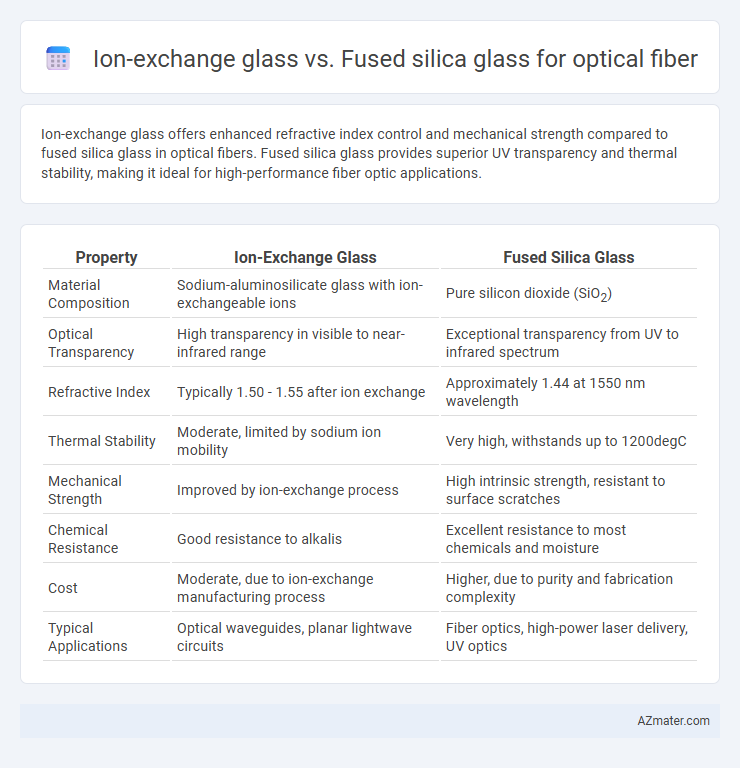

Table of Comparison

Introduction to Optical Fiber Materials

Ion-exchange glass and fused silica glass represent two critical materials in optical fiber manufacturing, each offering distinct properties for light transmission. Ion-exchange glass enhances refractive index profiles through the substitution of ions, optimizing signal propagation and reducing attenuation in fiber cores. Fused silica glass provides exceptional purity and low attenuation levels, making it ideal for long-distance optical communication due to its high transparency and thermal stability.

Overview of Ion-Exchange Glass

Ion-exchange glass utilizes a chemical process where smaller ions in the glass matrix are replaced by larger ions from a molten salt bath, enhancing the refractive index and mechanical strength of optical fibers. This method produces fibers with improved durability and lower attenuation compared to fused silica glass, which is primarily composed of pure silicon dioxide and offers high transparency and low signal loss. Ion-exchange glass is particularly advantageous in applications requiring robust fiber optic cables with tailored optical properties for telecommunications and sensing technologies.

Overview of Fused Silica Glass

Fused silica glass, a highly pure form of silicon dioxide, exhibits exceptional optical transmission, low thermal expansion, and superior chemical durability, making it ideal for optical fiber manufacturing. Its intrinsic low attenuation and high resistance to UV radiation ensure minimal signal loss over long distances, outperforming ion-exchange glass in fiber performance. The homogeneity and precise refractive index control of fused silica enhance data transmission quality, critical for telecommunications and high-speed internet infrastructure.

Key Optical Properties Comparison

Ion-exchange glass offers enhanced refractive index modulation and improved mechanical strength, making it suitable for specialized waveguides in optical fiber applications. Fused silica glass provides superior transparency over a broad wavelength range, exceptionally low optical attenuation, and high resistance to thermal and radiation-induced damage. The choice between ion-exchange and fused silica glasses depends on the required balance of refractive index control, transmission efficiency, and durability in the targeted optical fiber system.

Thermal and Mechanical Performance

Ion-exchange glass offers improved mechanical strength through compressive stress layers formed during ion-exchange processes, enhancing resistance to micro-cracks and surface damage compared to fused silica glass. Fused silica glass excels in thermal stability, exhibiting minimal thermal expansion (around 0.55 x 10^-6 /degC) and high softening temperature (~1670degC), ensuring superior performance under extreme temperature variations. The combination of ion-exchange treatment with fused silica substrates can optimize mechanical durability while preserving the exceptional thermal properties critical for high-performance optical fibers.

Transmission Losses and Signal Integrity

Ion-exchange glass in optical fibers typically exhibits higher transmission losses compared to fused silica glass due to increased Rayleigh scattering and absorption from dopant impurities. Fused silica glass offers superior signal integrity, benefiting from ultra-low attenuation coefficients around 0.2 dB/km at 1550 nm, which makes it the preferred choice for long-haul fiber optic communication. The intrinsic purity and thermomechanical stability of fused silica reduce modal dispersion and nonlinear effects, thereby maintaining optimal signal quality over extended distances.

Fabrication Processes and Scalability

Ion-exchange glass fabrication for optical fibers involves exchanging alkali ions in a glass matrix with larger ions through molten salt baths, enabling precise refractive index control suitable for waveguide applications. Fused silica glass fabrication relies on high-purity silica deposition via methods like chemical vapor deposition (CVD) followed by sintering, producing ultra-low-loss fibers ideal for long-distance communication. Scalability of ion-exchange processes is limited by batch processing and slower diffusion rates, while fused silica fibers benefit from continuous draw processes, supporting high-volume production and consistent material quality.

Cost Considerations and Availability

Ion-exchange glass used in optical fibers is generally more expensive due to the complex manufacturing process involving ion substitution to enhance fiber properties. Fused silica glass, being the primary material for most optical fibers, benefits from widespread availability and established mass production techniques that reduce costs significantly. Cost considerations favor fused silica for large-scale deployments, while ion-exchange glass is typically reserved for specialized applications requiring enhanced performance despite higher material expenses.

Application Suitability in Optical Networks

Ion-exchange glass offers enhanced refractive index control and mechanical strength, making it highly suitable for creating precise waveguides in high-performance optical networks. Fused silica glass provides superior transparency and low optical attenuation, ideal for long-haul fiber optic communication requiring minimal signal loss. The choice between ion-exchange and fused silica glass depends on network demands for flexibility, durability, and signal integrity in varying environmental conditions.

Future Trends in Optical Fiber Glass Materials

Ion-exchange glass offers enhanced strength and durability through surface ion substitution, making it ideal for robust optical fiber applications, while fused silica glass provides superior transparency and low attenuation across a broad wavelength range. Future trends in optical fiber materials emphasize hybrid approaches combining ion-exchange techniques with advanced doped fused silica to optimize mechanical resilience and signal clarity in next-generation telecommunications. Innovations focus on nanostructured coatings and novel glass compositions to meet increasing demands for higher bandwidth, longer transmission distances, and improved environmental stability.
