Borosilicate glass vs. fused quartz glass for semiconductor manufacturing - What is The Difference?

Borosilicate glass offers excellent thermal shock resistance and chemical durability, making it suitable for semiconductor manufacturing processes requiring rapid temperature changes. Fused quartz glass provides superior purity and a higher melting point, ideal for high-temperature semiconductor applications demanding minimal contamination and exceptional optical clarity.

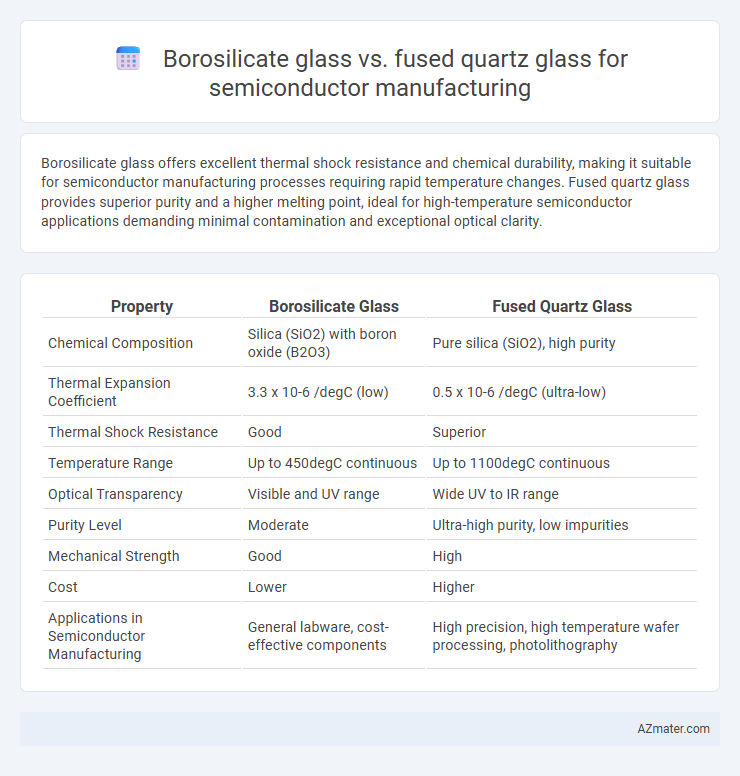

Table of Comparison

Introduction to Semiconductor Glass Materials

Borosilicate glass and fused quartz glass are critical materials in semiconductor manufacturing due to their excellent thermal stability and chemical resistance. Borosilicate glass contains boron trioxide, enhancing its thermal shock resistance and reducing expansion, while fused quartz glass, composed primarily of high-purity silica, offers superior optical clarity and ultra-low thermal expansion. These properties make fused quartz ideal for photolithography and high-temperature process environments, whereas borosilicate glass suits applications requiring moderate thermal resistance and cost-effectiveness.

Overview of Borosilicate Glass

Borosilicate glass in semiconductor manufacturing offers superior chemical resistance and thermal stability, with a typical thermal expansion coefficient of about 3.3 x 10^-6 /degC, making it ideal for precision applications such as photomask substrates and wafer carriers. Its high durability against thermal shock and low alkali content minimize contamination risks during wafer processing, ensuring cleanroom compatibility. Compared to fused quartz glass, borosilicate is more economical while providing sufficient optical clarity and mechanical strength for a wide range of semiconductor fabrication processes.

Overview of Fused Quartz Glass

Fused quartz glass, composed of high-purity silicon dioxide, offers superior thermal stability and low thermal expansion, making it ideal for semiconductor manufacturing processes that demand precise temperature control. Its exceptional chemical resistance and optical clarity enable reliable performance in photolithography and wafer processing applications. Compared to borosilicate glass, fused quartz provides enhanced durability under extreme thermal cycling and reduced contamination risk, which are crucial for maintaining semiconductor fabrication quality.

Key Material Properties Comparison

Borosilicate glass offers excellent thermal shock resistance and a lower coefficient of thermal expansion (~3.3 x 10^-6 /degC), making it suitable for processes requiring rapid temperature changes. Fused quartz glass provides superior purity, higher melting point (~1,650degC), and exceptional UV transparency, crucial for photolithography and high-temperature semiconductor fabrication. While borosilicate glass is cost-effective with good chemical durability, fused quartz glass excels in thermal stability and minimal impurity levels, ensuring enhanced device performance and yield in semiconductor manufacturing.

Thermal Stability and Expansion Differences

Borosilicate glass offers moderate thermal stability with a coefficient of thermal expansion (CTE) around 3.3 x 10^-6 /degC, making it suitable for semiconductor processes requiring controlled thermal expansion. Fused quartz glass exhibits superior thermal stability and an ultra-low CTE of approximately 0.5 x 10^-6 /degC, minimizing stress and deformation during high-temperature semiconductor fabrication. This significant difference in thermal expansion ensures fused quartz is preferred for critical applications involving extreme temperature fluctuations and precise dimensional stability.

Chemical Resistance in Semiconductor Processes

Borosilicate glass offers moderate chemical resistance suitable for less aggressive semiconductor processes, withstanding acids like HF and HCl to some extent. Fused quartz glass exhibits superior chemical resistance, especially against hydrofluoric acid and high-purity semiconductor chemicals, making it ideal for high-purity etching and cleansing steps. The higher purity and thermal stability of fused quartz reduce contamination risks critical in advanced semiconductor manufacturing environments.

Optical Transparency and Purity Levels

Borosilicate glass offers high optical transparency with excellent resistance to thermal shock, ideal for semiconductor lithography applications requiring consistent light transmission. Fused quartz glass surpasses borosilicate in purity levels, featuring ultra-low impurity content critical for minimizing contamination in semiconductor fabrication processes. The superior UV transparency and minimal fluorescence of fused quartz enhance precision in photolithography compared to the slightly lower purity borosilicate alternatives.

Cost and Availability Considerations

Borosilicate glass offers a cost-effective solution with widespread availability, making it suitable for various semiconductor manufacturing applications where budget constraints are critical. Fused quartz glass, although significantly more expensive, provides superior thermal stability and purity, which can justify its higher cost in high-precision semiconductor processes. The choice between borosilicate and fused quartz glass largely depends on balancing cost efficiency with the specific manufacturing requirements related to temperature tolerance and chemical purity.

Typical Applications in Semiconductor Manufacturing

Borosilicate glass is commonly used in semiconductor manufacturing for photomask substrates, wafer carriers, and chemical-resistant laboratory glassware due to its thermal stability and resistance to chemical corrosion. Fused quartz glass is preferred for high-precision optical components, photolithography masks, and furnace tubes because of its exceptional purity, high melting point, and superior ultraviolet (UV) transparency. Both materials are essential in semiconductor fabrication, with borosilicate suited for general chemical processes and fused quartz critical for applications requiring extreme thermal and optical performance.

Choosing the Right Glass for Semiconductor Equipment

Borosilicate glass offers excellent thermal shock resistance and chemical durability, making it suitable for general semiconductor processing equipment where moderate thermal stability is required. Fused quartz glass provides superior thermal purity, high melting point, and ultra-low thermal expansion, essential for high-precision semiconductor manufacturing applications such as photolithography and wafer processing. Selecting the right glass depends on specific process demands, with fused quartz preferred for critical high-temperature and high-purity environments, while borosilicate is cost-effective for less stringent conditions.
