Stamped concrete vs. shotcrete for tunnel lining - What is The Difference?

Stamped concrete offers durable, textured finishes ideal for aesthetic tunnel linings, while shotcrete provides rapid application and superior adhesion for structural tunnel reinforcement. Shotcrete's versatility suits complex tunnel geometries, whereas stamped concrete excels in decorative surface treatments.

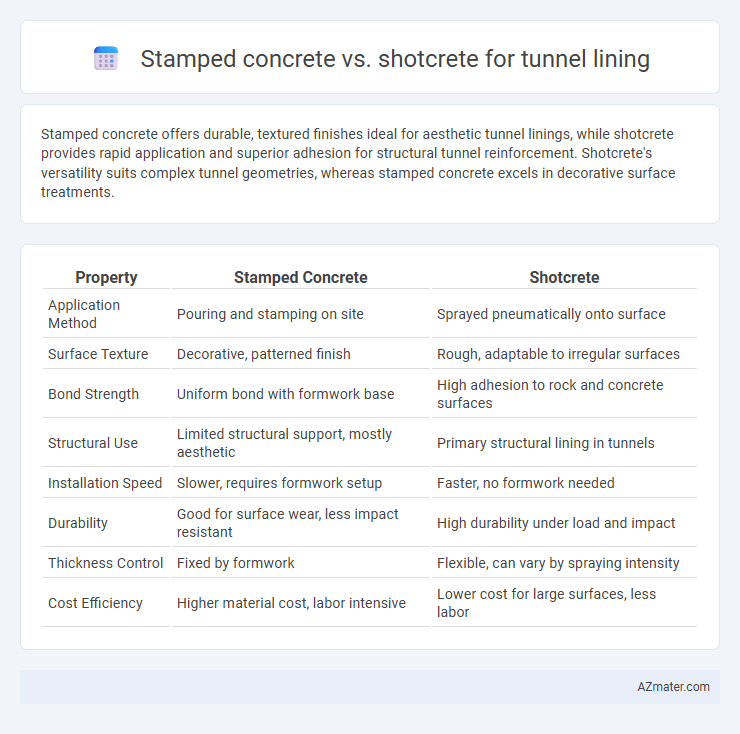

Table of Comparison

Introduction to Tunnel Lining Methods

Stamped concrete and shotcrete represent two advanced tunnel lining methods widely utilized in underground construction for structural support and durability. Stamped concrete involves the application of patterned, pre-cast concrete panels that provide a strong, aesthetically customizable finish, while shotcrete is a pneumatically sprayed, fast-curing concrete that conforms seamlessly to complex tunnel geometries for rapid stabilization. The selection depends on factors such as tunnel size, geological conditions, construction speed, and long-term maintenance requirements.

What is Stamped Concrete?

Stamped concrete is a textured concrete surface created by pressing mold patterns into freshly poured concrete to mimic materials such as stone, brick, or tile, often used for decorative tunnel lining finishes. It offers superior aesthetic versatility and slip resistance but requires meticulous installation and curing to ensure durability in tunnel environments. Compared to shotcrete, stamped concrete is less commonly used structurally in tunnels due to its emphasis on surface appearance rather than structural reinforcement.

What is Shotcrete?

Shotcrete is a sprayed concrete mixture applied at high velocity onto tunnel linings to provide structural support and surface stability. Its ability to conform to complex shapes and rapid application make it ideal for reinforcing irregular tunnel surfaces and ensuring safety during excavation. This method contrasts with stamped concrete, which is typically poured and patterned on flat surfaces, making shotcrete the preferred choice for tunnel lining due to its adaptability and strength.

Material Composition and Application Techniques

Stamped concrete for tunnel lining primarily consists of a traditional concrete mix with added color hardeners and release agents that create textured patterns post-placement, enhancing aesthetic appeal and surface durability. Shotcrete uses a dry or wet concrete mix, sprayed at high velocity through a nozzle, allowing rapid application and better adhesion to complex tunnel geometries, often reinforced with fibers or steel mesh for structural support. The material composition of shotcrete is optimized for quick setting and reduced rebound, while stamped concrete emphasizes surface finish and controlled curing processes.

Structural Strength and Durability

Stamped concrete offers enhanced aesthetic appeal but typically has lower structural strength compared to shotcrete, which is specifically engineered for tunnel lining applications. Shotcrete provides superior bonding and uniform application, ensuring higher durability and resistance to cracking under geological stress. Its fiber reinforcement and high compressive strength make shotcrete the preferred choice for maintaining long-term structural integrity in tunnel environments.

Waterproofing and Crack Resistance

Stamped concrete and shotcrete both serve tunnel lining applications, with shotcrete offering superior waterproofing due to its dense, sprayed application that minimizes porosity and enhances adhesion to irregular surfaces. Stamped concrete, while visually customizable, typically requires additional waterproof membranes or sealants to achieve comparable moisture resistance. Shotcrete also provides enhanced crack resistance through its ability to conform closely to complex geometries and its strong bonding properties, reducing the risk of water ingress and structural deterioration.

Installation Speed and Construction Efficiency

Shotcrete offers faster installation speeds for tunnel lining due to its ability to be sprayed directly onto irregular surfaces, reducing formwork and excavation time. Stamped concrete requires extensive preparation and curing periods, which can delay project timelines and increase labor costs. Efficient tunnel construction benefits from shotcrete's adaptability and rapid application, enhancing overall productivity and minimizing downtime.

Cost Comparison: Stamped Concrete vs Shotcrete

Stamped concrete typically incurs higher upfront costs due to the detailed molds and labor required to create textured surfaces, whereas shotcrete offers a more cost-efficient solution with quicker application and less formwork. Shotcrete's reduced material waste and faster curing times can lower overall project expenses, especially in extensive tunnel lining projects. Evaluating long-term maintenance costs, shotcrete often proves more economical given its superior adhesion and durability under tunnel environmental stresses.

Maintenance and Long-Term Performance

Stamped concrete offers enhanced aesthetic appeal and surface texture beneficial for tunnel lining but requires regular maintenance to prevent wear and surface degradation in harsh tunnel environments. Shotcrete provides superior adhesion and durability with minimal maintenance due to its dense application and high compressive strength, making it ideal for long-term structural support in tunnels. Long-term performance heavily favors shotcrete for its resistance to cracking, water ingress, and chemical attack, reducing repair frequency and lifecycle costs.

Choosing the Best Tunnel Lining Solution

Stamped concrete offers enhanced aesthetic appeal and surface texture, making it ideal for tunnels where visual design and slip resistance are priorities. Shotcrete provides superior speed of application and adaptability to complex shapes, ensuring structural integrity and rapid stabilization in challenging tunnel environments. Selecting the best tunnel lining solution depends on project-specific factors such as load requirements, environmental conditions, and finishing preferences.
