azmater.com Lightweight concrete offers a density range of 1200-1840 kg/m3, reducing dead loads and improving thermal insulation in structural applications. Reinforced concrete, with a density of about 2400 kg/m3, provides higher compressive strength and tensile reinforcement essential for load-bearing structures.
Table of Comparison
| Aspect | Lightweight Concrete | Reinforced Concrete |
|---|---|---|
| Density | Approx. 1,600-1,800 kg/m3 | Approx. 2,400 kg/m3 |
| Strength | Moderate compressive strength (10-40 MPa) | High compressive strength (20-50 MPa) with steel reinforcement |
| Weight Reduction | Reduces structural load by 20-35% | No significant weight reduction |
| Thermal Insulation | Good thermal insulation properties | Poor thermal insulation, conducts heat |
| Durability | Moderate, suitable for non-heavy load-bearing elements | High durability and load-bearing capacity |
| Cost | Generally higher material cost, lower transportation cost | Moderate material and construction cost |
| Application | Used in roof decks, partitions, low-load structural elements | Used in beams, columns, slabs for heavy structural loads |
Introduction to Lightweight and Reinforced Concrete
Lightweight concrete is crafted using lightweight aggregates such as expanded clay, shale, or pumice, resulting in a lower density material ideal for reducing dead load and improving thermal insulation in structural applications. Reinforced concrete incorporates steel reinforcement bars (rebar) within the concrete matrix, significantly enhancing tensile strength and making it suitable for load-bearing elements like beams, columns, and slabs. Both materials serve critical roles in construction; lightweight concrete optimizes weight and energy efficiency, while reinforced concrete ensures structural integrity and durability under high stress conditions.
Material Composition Comparison
Lightweight concrete is composed of lightweight aggregates such as expanded clay, shale, or pumice, resulting in lower density and improved thermal insulation compared to traditional concrete. Reinforced concrete integrates steel bars or mesh within a conventional concrete matrix, enhancing tensile strength and structural durability. The distinct material compositions influence their applications, with lightweight concrete favored for reduced structural load and reinforced concrete chosen for high load-bearing capacity and resistance to tensile stresses.
Structural Performance and Load-Bearing Capacity
Lightweight concrete offers reduced dead load, making it ideal for structures needing lower self-weight while maintaining adequate compressive strength for moderate load-bearing applications. Reinforced concrete excels in structural performance by combining concrete's compressive strength with steel reinforcement's tensile capacity, enabling it to support higher loads and resist bending, shear, and tension forces effectively. The load-bearing capacity of reinforced concrete surpasses lightweight concrete in heavy structural elements due to its enhanced durability and ability to accommodate substantial structural stresses.
Weight and Density Differences
Lightweight concrete typically has a density ranging from 1,400 to 1,900 kg/m3, significantly lower than reinforced concrete, which usually ranges between 2,400 and 2,500 kg/m3. This reduction in density results in lighter structural elements, improving seismic performance and reducing dead load on foundations. Reinforced concrete, with higher density, offers greater compressive strength and durability, making it suitable for heavy-load-bearing structures where weight is less of a constraint.
Durability and Lifespan
Lightweight concrete offers enhanced durability in seismic and thermal conditions due to its lower density and improved insulation properties, reducing stress on structural elements and extending lifespan in specific environments. Reinforced concrete provides superior mechanical strength and resistance to tensile stresses through embedded steel reinforcement, resulting in a longer structural lifespan under heavy loads and dynamic forces. Both materials require proper curing and maintenance, but reinforced concrete typically outperforms lightweight concrete in durability for high-load structural applications.
Thermal and Acoustic Insulation Properties
Lightweight concrete offers superior thermal insulation due to its lower density and higher air content, reducing heat transfer and improving energy efficiency in buildings. Reinforced concrete, while stronger structurally, has higher thermal conductivity, making it less effective for insulation but better suited for load-bearing applications. Acoustic insulation is enhanced in lightweight concrete because of its porous structure, which absorbs sound waves more effectively than the dense matrix of reinforced concrete.
Cost and Economic Considerations
Lightweight concrete reduces dead load, resulting in lower foundation and structural steel costs, making it economically advantageous for high-rise buildings. Reinforced concrete generally has higher material and labor expenses due to steel reinforcement and formwork requirements but provides superior structural strength and durability. Evaluating project specifics, such as load demands and long-term performance, determines which concrete type offers better cost efficiency and return on investment.
Construction Methods and Workability
Lightweight concrete offers easier handling and faster placement due to its reduced density and improved workability, making it ideal for complex forms and rapid construction methods such as precasting and tilt-up panels. Reinforced concrete requires careful coordination of steel rebar placement before pouring, often demanding more labor-intensive casting and curing processes to ensure structural integrity under heavy loads. Both materials require specific mix designs and curing techniques, but lightweight concrete generally enhances constructability by reducing dead load, while reinforced concrete provides superior strength and stiffness for high-load structural applications.
Common Applications in Structural Work
Lightweight concrete is commonly used in structural work for non-load-bearing walls, floors, and roof decks due to its reduced density, which enhances thermal insulation and reduces overall structural weight. Reinforced concrete, incorporating steel bars or mesh, is preferred for load-bearing columns, beams, and slabs where high tensile strength and durability are crucial. Both materials serve distinct roles in construction, with lightweight concrete optimizing energy efficiency and reinforced concrete providing essential structural support.
Sustainability and Environmental Impact
Lightweight concrete reduces structural load, resulting in lower material consumption and decreased transportation emissions, enhancing sustainability compared to traditional reinforced concrete. Reinforced concrete, while offering superior strength and durability, typically involves higher carbon emissions due to cement and steel production, posing greater environmental concerns. Choosing lightweight concrete can significantly lower the carbon footprint and energy use in construction projects, supporting eco-friendly building practices.

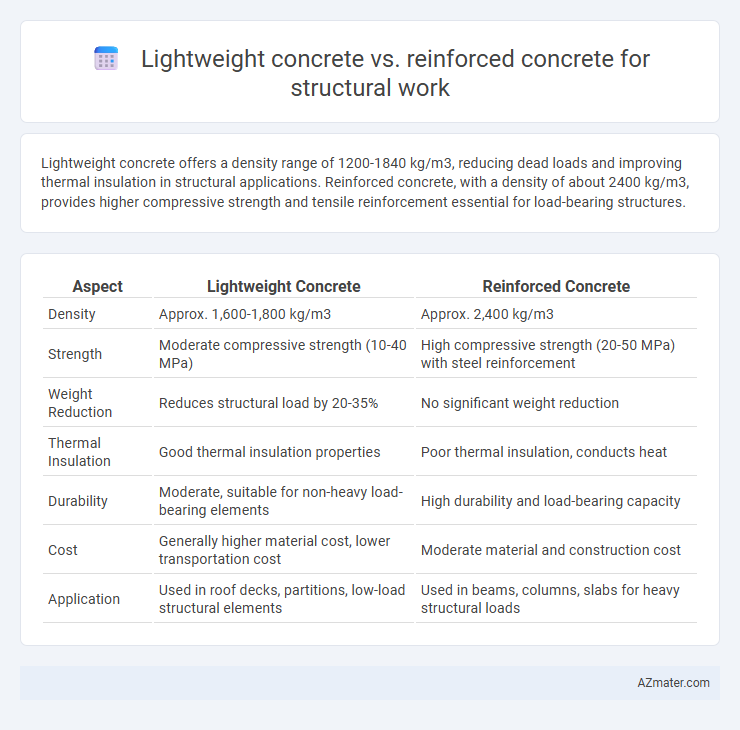

Infographic: Lightweight concrete vs Reinforced concrete for Structural work
