azmater.com Cellular concrete offers lightweight insulation and ease of installation for architectural facades, while ultra-high performance concrete provides superior strength, durability, and intricate design capabilities. Selecting between these materials depends on project priorities such as thermal performance versus structural excellence.
Table of Comparison
| Property | Cellular Concrete | Ultra-High Performance Concrete (UHPC) |
|---|---|---|
| Density | Low (400-1600 kg/m3) | High (2200-2500 kg/m3) |
| Compressive Strength | 1-10 MPa | 150-250 MPa |
| Thermal Insulation | Excellent (low thermal conductivity) | Poor (high thermal conductivity) |
| Durability | Moderate | Exceptional (resistant to corrosion, abrasion) |
| Workability | Easy to shape and cut | Requires specialized mixing and placing |
| Application in Facades | Lightweight cladding, insulation panels | Structural facade elements, thin veneer panels |
| Cost | Low to moderate | High |
| Finish Quality | Rough texture | High-quality smooth finish |
Introduction to Cellular Concrete and Ultra-High Performance Concrete in Façade Design
Cellular concrete features lightweight, insulating properties and excellent fire resistance, making it ideal for energy-efficient architectural facades requiring thermal regulation and sound insulation. Ultra-high performance concrete (UHPC) offers exceptional strength, durability, and sleek aesthetics, allowing for slim, intricate facade designs that withstand extreme environmental conditions with minimal maintenance. Both materials enhance facade performance, with cellular concrete emphasizing insulation and UHPC prioritizing structural integrity and design flexibility.
Composition and Material Properties Comparison
Cellular concrete consists of cement, fine aggregates, water, and a foaming agent that creates air bubbles, resulting in a lightweight and thermally insulating material with low density ranging from 400 to 1600 kg/m3 and compressive strength typically between 1 to 10 MPa. Ultra-high performance concrete (UHPC) features a dense matrix of cement, silica fume, fine sand, and superplasticizers with steel or synthetic fibers, achieving compressive strengths above 150 MPa and exceptional durability, tensile strength, and fracture toughness. The lightweight, insulating properties of cellular concrete contrast sharply with UHPC's superior mechanical performance, making cellular concrete ideal for energy-efficient facades while UHPC suits intricate, highly durable architectural elements that require minimal thickness and high load-bearing capacity.
Strength and Structural Performance: A Technical Overview
Cellular concrete exhibits low compressive strength ranging from 3 to 15 MPa, making it suitable for lightweight, non-load-bearing architectural facades that prioritize thermal insulation and ease of installation. Ultra-high performance concrete (UHPC) offers compressive strengths exceeding 150 MPa, providing exceptional load-bearing capacity and durability for complex facade geometries subjected to significant structural demands. The superior tensile strength and enhanced ductility of UHPC enable slender, innovative facade designs, whereas cellular concrete primarily serves insulation and weight reduction purposes with limited structural contribution.
Thermal Insulation and Energy Efficiency Analysis
Cellular concrete offers superior thermal insulation due to its lightweight, porous structure that reduces heat transfer, making it ideal for energy-efficient architectural facades. Ultra-high performance concrete (UHPC), while significantly stronger and more durable, has a denser matrix with lower thermal insulation properties, resulting in higher energy consumption for temperature regulation. Integrating cellular concrete in facade design can enhance building energy performance by minimizing heat loss and gain, whereas UHPC is often selected for structural robustness rather than thermal efficiency.
Aesthetic Versatility and Design Flexibility
Cellular concrete offers exceptional aesthetic versatility for architectural facades through its lightweight nature and customizable texture, enabling seamless integration of intricate patterns and varied finishes. Ultra-high performance concrete (UHPC) provides superior design flexibility with its high strength-to-weight ratio and capacity for ultra-thin, complex geometries, allowing architects to create sleek, minimalist facades with enhanced durability. Both materials support innovative facade solutions, but cellular concrete excels in texture variation while UHPC enables cutting-edge structural expressiveness.
Sustainability and Environmental Impact Assessment
Cellular concrete offers superior insulation properties and reduced material usage, significantly lowering the embodied carbon footprint in architectural facades, making it a sustainable alternative to traditional materials. Ultra-high performance concrete (UHPC) delivers exceptional durability and reduced permeability, extending facade lifespan and minimizing maintenance-related environmental impacts. Life cycle assessments indicate that while UHPC has higher initial environmental costs due to energy-intensive production, its longevity and structural benefits can offset these through reduced replacement and repair needs.
Durability and Weather Resistance Considerations
Cellular concrete offers excellent thermal insulation and lightweight properties but typically exhibits lower compressive strength and durability compared to ultra-high performance concrete (UHPC), making it less ideal for long-term weather resistance in architectural facades. UHPC provides superior durability with high compressive strength, low permeability, and exceptional resistance to freeze-thaw cycles, chemicals, and abrasion, ensuring enhanced weather resistance and structural longevity. For facades exposed to harsh climates and demanding environmental conditions, UHPC is the preferred choice due to its robustness and minimal maintenance requirements.
Installation Methods and Construction Efficiency
Cellular concrete offers lightweight properties and ease of installation through spray or pump methods, reducing labor time and improving thermal insulation for architectural facades. Ultra-high performance concrete (UHPC) requires precision casting or mold techniques, demanding skilled labor but delivering superior durability and design flexibility for complex facade elements. Both materials enhance construction efficiency; cellular concrete excels in quick application and insulation, while UHPC provides long-term performance with thinner, lighter facade components.
Cost Analysis: Material and Long-Term Savings
Cellular concrete offers significant cost advantages in material price and ease of installation compared to ultra-high performance concrete (UHPC), which is considerably more expensive due to its advanced mix design and specialized additives. UHPC provides superior durability and lower maintenance costs, resulting in long-term savings through enhanced lifespan and reduced repairs, while cellular concrete may incur higher upkeep expenses over time. Evaluating facade projects requires balancing UHPC's premium upfront investment against cellular concrete's initial affordability and potential lifecycle costs.
Choosing the Right Concrete for Different Architectural Façade Applications
Cellular concrete offers lightweight insulation and excellent thermal properties, making it ideal for non-load-bearing facade panels where energy efficiency is prioritized. Ultra-high performance concrete (UHPC) provides exceptional strength, durability, and design flexibility for complex, load-bearing architectural facades requiring slender profiles and extended service life. Selecting between cellular concrete and UHPC depends on factors such as structural requirements, aesthetic goals, thermal performance, and budget constraints to ensure optimal facade performance and longevity.

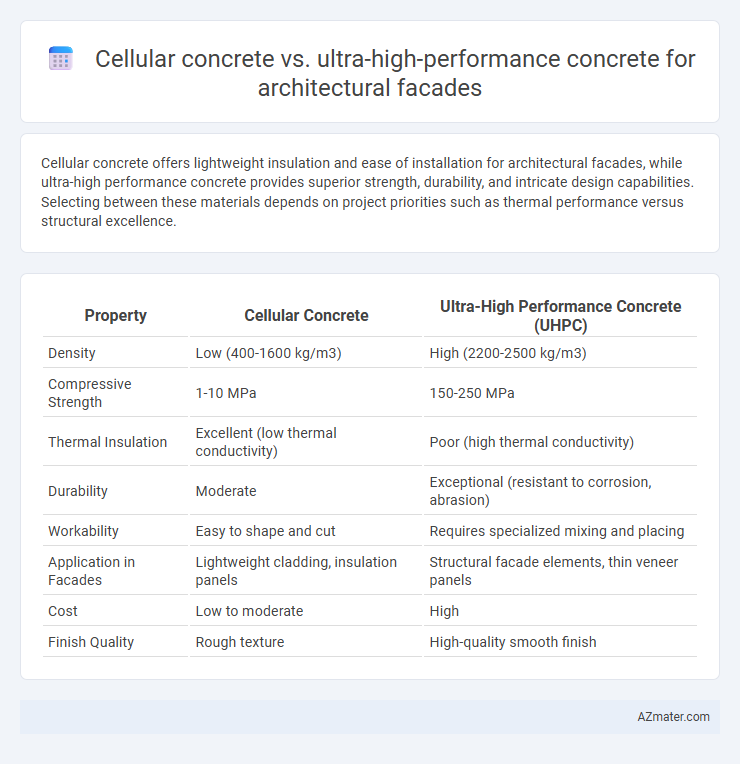

Infographic: Cellular concrete vs Ultra-high performance concrete for Architectural façade
