azmater.com Geo-polymer concrete offers sustainable benefits with lower carbon emissions and excellent chemical resistance, while Ultra-high-performance concrete provides superior compressive strength exceeding 150 MPa and exceptional durability for critical structural elements. Choosing between them depends on balancing environmental impact and mechanical performance requirements in construction projects.
Table of Comparison
| Property | Geo-polymer Concrete | Ultra-High-Performance Concrete (UHPC) |
|---|---|---|
| Binder Type | Alkali-activated industrial by-products (fly ash, slag) | Portland cement with silica fume and additives |
| Compressive Strength | 40-80 MPa | 120-200 MPa |
| Durability | High resistance to chemical attack and heat | Exceptional durability; high resistance to abrasion, chloride, and freeze-thaw |
| Environmental Impact | Low CO2 footprint; uses industrial waste | Higher CO2 emissions; energy-intensive materials |
| Workability | Moderate; requires precise mix design | High; self-compacting properties |
| Curing | Ambient to elevated temperature curing | Standard curing; some formulations require steam curing |
| Cost | Lower material cost; less available globally | Higher cost; specialized materials and processing |
| Applications | Structural elements with environmental focus | High-performance structural and architectural elements |
Introduction to Geo-polymer Concrete and Ultra-high-performance Concrete
Geo-polymer concrete utilizes industrial by-products like fly ash or slag, forming a binder through alkaline activation that offers high chemical resistance and reduced carbon footprint, making it environmentally sustainable for structural elements. Ultra-high-performance concrete (UHPC) is engineered with a dense microstructure, incorporating fine powders, fibers, and low water-to-cement ratios, resulting in exceptional compressive strengths above 150 MPa and superior durability. Both materials enhance structural efficiency but differ significantly in composition, mechanical properties, and environmental impact, influencing their application in modern construction.
Material Composition and Chemical Properties
Geo-polymer concrete consists primarily of industrial by-products like fly ash or slag combined with alkaline activators such as sodium hydroxide and sodium silicate, resulting in a binder with high chemical resistance and low calcium content. Ultra-high-performance concrete (UHPC) features a dense matrix made from a blend of Portland cement, silica fume, fine quartz sand, superplasticizers, and steel fibers, offering exceptional compressive strength and enhanced durability due to its low porosity. The chemical properties of geo-polymer concrete provide superior resistance to acids and alkalis, while UHPC exhibits increased hydration strength and microstructural refinement that improve mechanical performance in structural elements.
Mechanical Strength Comparison
Geo-polymer concrete exhibits compressive strengths ranging from 40 to 80 MPa, offering notable chemical resistance and sustainability advantages. Ultra-high-performance concrete (UHPC) delivers superior mechanical strength with compressive strengths exceeding 150 MPa and tensile strengths above 10 MPa, driven by optimized particle packing and steel fiber reinforcement. Comparative studies highlight UHPC's exceptional durability and load-bearing capacity, making it more suitable for high-stress structural elements than geo-polymer concrete, which is preferred in eco-friendly construction with moderate load demands.
Durability and Longevity in Structural Elements
Geo-polymer concrete exhibits exceptional chemical resistance and reduced permeability, enhancing durability in aggressive environments, making it highly suitable for structural elements requiring longevity. Ultra-high-performance concrete (UHPC) delivers superior compressive strength and dense microstructure, significantly minimizing crack propagation and improving structural lifespan. Both materials outperform traditional concrete in durability, with geo-polymer concrete excelling in environmental sustainability and UHPC in mechanical resilience for long-term structural applications.
Sustainability and Environmental Impact
Geo-polymer concrete significantly reduces carbon emissions by utilizing industrial by-products like fly ash and slag, which lowers the dependence on traditional Portland cement known for high CO2 output. Ultra-high-performance concrete (UHPC) offers exceptional durability and strength, extending the lifespan of structural elements and minimizing maintenance-related environmental costs. Despite UHPC's higher initial energy consumption, its long-term sustainability benefits stem from reduced material usage and enhanced structural resilience, while geo-polymer concrete excels in lowering embodied carbon and waste utilization.
Workability and Construction Techniques
Geo-polymer concrete offers enhanced workability due to its chemical composition, enabling easier molding and placement in complex structural elements, while utilizing traditional casting techniques with minimal adjustments. Ultra-high-performance concrete (UHPC) requires precision in mixing and placement, often demanding advanced construction methods such as high-pressure casting or self-compacting processes to achieve its superior strength and durability. Both materials necessitate specialized curing regimes, but Geo-polymer concrete is more adaptable to ambient curing, influencing construction timelines and labor management.
Performance in Extreme Conditions
Geo-polymer concrete demonstrates superior chemical resistance and thermal stability under extreme conditions, making it ideal for structures exposed to highly acidic or fire-prone environments. Ultra-high-performance concrete (UHPC) exhibits exceptional compressive strength and durability, with outstanding resistance to freeze-thaw cycles and mechanical abrasion, suitable for critical load-bearing elements in harsh climates. Both materials offer enhanced performance in extreme conditions, but geo-polymer concrete provides greater environmental sustainability, while UHPC excels in mechanical robustness and longevity.
Cost Analysis and Economic Considerations
Geo-polymer concrete offers significant cost savings over ultra-high-performance concrete (UHPC) due to its use of industrial by-products like fly ash and slag, reducing raw material expenses and carbon footprint. UHPC demands higher manufacturing costs driven by specialized materials, complex mixing processes, and extended curing times, which increase labor and energy consumption. Economic considerations favor geo-polymer concrete for large-scale structural elements where sustainability and budget constraints are critical, while UHPC suits applications requiring exceptional mechanical properties despite its higher cost.
Case Studies and Real-world Applications
Geo-polymer concrete demonstrates enhanced durability and environmental benefits in structural elements, as evidenced by the Australian road infrastructure projects where it showed superior resistance to chemical attacks and thermal stability. Ultra-high-performance concrete (UHPC) offers exceptional compressive strength and ductility, validated by bridge construction case studies in Europe and the United States, enabling longer spans and slimmer cross-sections with improved load-bearing capacity. Real-world applications reveal geo-polymer concrete's sustainability advantage with lower carbon emissions, while UHPC's advanced mechanical properties support innovative design solutions in high-stress environments.
Future Trends and Innovations in Concrete Technology
Geo-polymer concrete, leveraging industrial by-products like fly ash and slag, offers sustainable and low-carbon alternatives for structural elements with enhanced chemical resistance and durability, positioning it as a key material in future green construction trends. Ultra-high-performance concrete (UHPC) demonstrates exceptional mechanical properties, including compressive strengths exceeding 150 MPa and superior ductility, driving innovations in slender and lightweight structural designs that demand both high strength and durability. Emerging research focuses on hybrid composites combining geo-polymer matrices with UHPC reinforcement to optimize sustainability and performance, highlighting a transformative future in concrete technology emphasizing eco-efficiency and structural resilience.

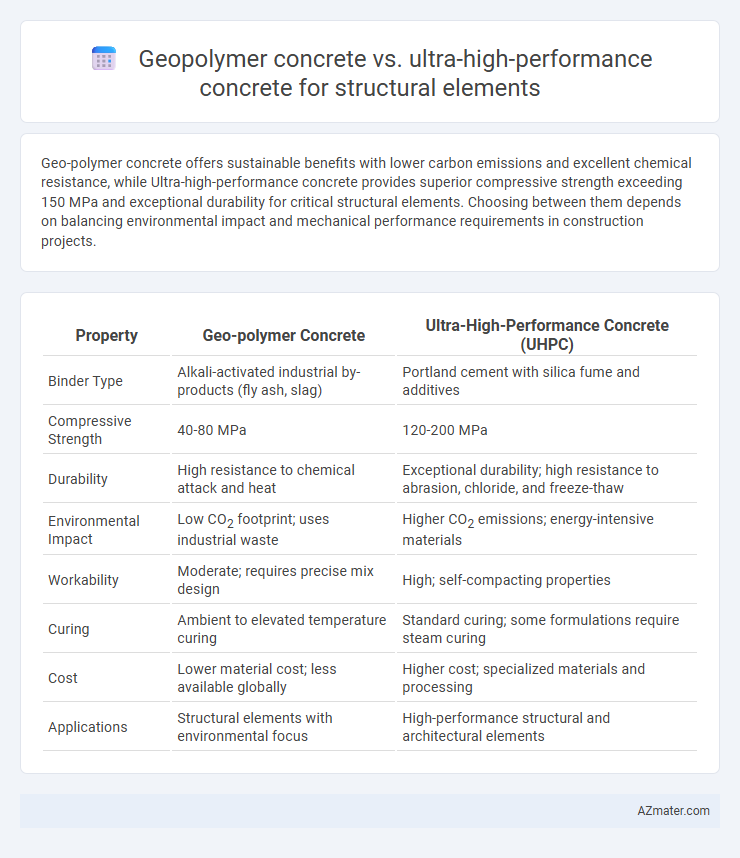

Infographic: Geo-polymer concrete vs Ultra-high-performance concrete for Structural element
