Foam concrete vs. lightweight aggregate concrete for flooring - What is The Difference?

Foam concrete offers superior thermal insulation and lightweight properties ideal for flooring applications, while lightweight aggregate concrete provides higher compressive strength and durability. Selecting foam concrete enhances energy efficiency, whereas lightweight aggregate concrete ensures greater load-bearing capacity and long-term performance.

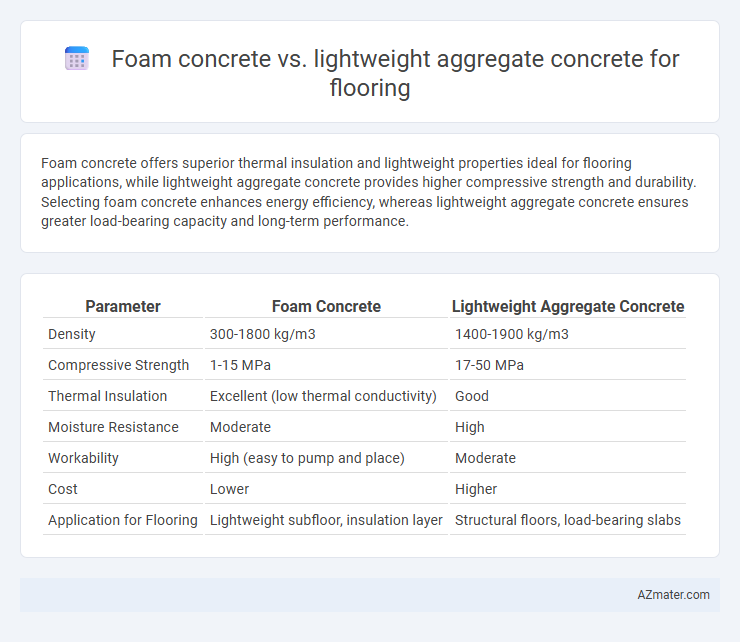

Table of Comparison

Introduction to Foam Concrete and Lightweight Aggregate Concrete

Foam concrete is a lightweight material created by mixing cement slurry with stable, air-filled foam, resulting in high thermal insulation and reduced structural load. Lightweight aggregate concrete incorporates natural or synthetic lightweight aggregates such as expanded clay, shale, or slag to achieve enhanced durability and reduced density. Both types provide effective solutions for flooring applications requiring weight reduction and energy efficiency while maintaining adequate strength.

Composition and Materials Used

Foam concrete consists of cement, water, fine sand, and a foaming agent that introduces air bubbles, resulting in lightweight, porous material ideal for insulation and soundproofing in flooring. Lightweight aggregate concrete incorporates expanded clay, shale, or slate aggregates, reducing density while maintaining higher structural strength compared to foam concrete. The choice of materials impacts compressive strength, thermal conductivity, and workability, making foam concrete suitable for non-structural floors and lightweight aggregate concrete better for load-bearing flooring applications.

Key Differences in Manufacturing Process

Foam concrete is produced by mixing a cement slurry with pre-formed stable foam, resulting in a uniform cellular structure, while lightweight aggregate concrete incorporates lightweight aggregates like expanded clay or shale mixed with conventional cement. The manufacturing process of foam concrete involves aerating a foam agent separately before blending with the cement paste, ensuring controlled air void distribution, whereas lightweight aggregate concrete relies on the natural porosity of lightweight aggregates to reduce density. This difference in production leads to foam concrete having a lower density and improved thermal insulation properties compared to lightweight aggregate concrete used for flooring applications.

Strength and Load-Bearing Capabilities

Foam concrete offers lower compressive strength, typically ranging from 1 to 8 MPa, making it suitable for non-load-bearing flooring applications, while lightweight aggregate concrete provides higher strength values between 15 to 40 MPa, supporting moderate to heavy load-bearing requirements. The cellular structure of foam concrete reduces density and thermal conductivity but compromises load-bearing capacity compared to the denser, aggregate-filled lightweight concrete. For flooring that demands robust strength and durability under heavy loads, lightweight aggregate concrete remains the preferred choice due to its superior compressive strength and structural integrity.

Thermal and Acoustic Insulation Properties

Foam concrete offers superior thermal insulation with a lower thermal conductivity typically around 0.1-0.2 W/m*K compared to lightweight aggregate concrete, which ranges from 0.2-0.4 W/m*K, making it more effective for energy-efficient flooring solutions. Acoustic insulation in foam concrete is enhanced by its high porosity and closed-cell structure, resulting in better sound absorption and noise reduction than lightweight aggregate concrete, which has a denser matrix and lower air void content. Both materials provide lightweight characteristics beneficial for structural load reduction, but foam concrete is preferred for optimizing thermal and acoustic performance in flooring applications.

Weight and Density Comparisons

Foam concrete typically exhibits a lower density ranging from 400 to 1600 kg/m3, making it significantly lighter than lightweight aggregate concrete, which usually has a density between 1400 and 1900 kg/m3. The reduced weight of foam concrete contributes to easier handling and decreased dead load on the structure, ideal for flooring applications requiring lightweight solutions. Despite its lower density, foam concrete maintains adequate strength for many flooring uses, whereas lightweight aggregate concrete offers higher compressive strength at a modestly increased weight.

Installation and Workability for Flooring

Foam concrete offers superior workability due to its lightweight, flowable consistency that simplifies placement and reduces the need for extensive vibration during flooring installation. Lightweight aggregate concrete, while providing good strength, requires more careful handling and compaction techniques to ensure uniform density and surface finish. The ease of pumping and leveling foam concrete accelerates installation times, making it a preferred choice for complex flooring layouts and rapid project schedules.

Durability and Lifespan Considerations

Foam concrete offers superior durability for flooring due to its low density and high thermal insulation, reducing stress from temperature fluctuations and moisture ingress. Lightweight aggregate concrete provides enhanced compressive strength and resistance to abrasion, extending the lifespan in high-traffic areas. Both materials require proper curing and maintenance, but lightweight aggregate concrete typically exhibits longer service life under heavy load conditions.

Cost Analysis and Economic Feasibility

Foam concrete generally offers lower material and labor costs compared to lightweight aggregate concrete due to its simpler production and easier handling, making it economically feasible for large-scale flooring projects. Lightweight aggregate concrete, while typically more expensive, provides enhanced structural strength and durability, potentially reducing long-term maintenance expenses. Cost analysis indicates foam concrete is suitable for budget-sensitive applications, whereas lightweight aggregate concrete justifies its higher initial cost through improved performance in high-load flooring scenarios.

Suitability for Various Flooring Applications

Foam concrete offers excellent thermal insulation and sound absorption, making it suitable for non-structural flooring in residential and commercial buildings where weight reduction is essential. Lightweight aggregate concrete provides higher compressive strength and durability, ideal for structural flooring applications such as industrial floors and multi-story buildings. The choice depends on load-bearing requirements, with foam concrete preferred for insulation and lightweight benefits, while lightweight aggregate concrete suits heavy-duty and load-bearing floors.
