azmater.com Acid-resistant concrete offers superior chemical durability against acidic environments, making it ideal for tunnel linings exposed to corrosive substances. Shotcrete provides excellent adhesion and rapid application but requires additives to enhance acid resistance for long-term tunnel durability.
Table of Comparison
| Feature | Acid-resistant Concrete | Shotcrete |
|---|---|---|
| Primary Use | Corrosion and acid attack resistant tunnel lining | Rapid application for tunnel lining and repair |
| Composition | Specialized cement with acid-resistant aggregates and additives | Sprayed concrete mix with accelerators and binders |
| Acid Resistance | High resistance to sulfuric and hydrochloric acids | Moderate; depends on mix design |
| Application Method | Cast-in-place or precast segments | Wet or dry spray technique |
| Curing Time | Longer curing for full strength and durability | Faster setting allowing quicker tunnel lining progress |
| Durability | Excellent long-term durability under acidic conditions | Good durability; best for temporary or repair works |
| Cost | Higher due to specialized materials | Lower and cost-effective for fast deployment |
| Typical Thickness | 50-150 mm based on exposure levels | 25-100 mm depending on project requirement |
| Typical Applications | Permanent tunnel lining in aggressive chemical environments | Initial support lining, repairs, or secondary linings |
Introduction to Tunnel Lining Solutions
Acid-resistant concrete and shotcrete are essential tunnel lining solutions designed to enhance structural durability in aggressive chemical environments. Acid-resistant concrete offers superior chemical stability by incorporating silica-rich aggregates and acid-resistant cementitious materials, making it ideal for tunnels exposed to acidic water or industrial pollutants. Shotcrete provides rapid application and excellent adhesion to complex tunnel geometries, allowing for efficient lining installation with customizable thickness and reinforcement options to withstand mechanical stress and chemical attack.
What is Acid-Resistant Concrete?
Acid-resistant concrete is a specialized construction material formulated with chemical-resistant aggregates and cementitious components designed to withstand highly acidic environments commonly found in tunnels exposed to sulfuric acid or other corrosive substances. This type of concrete incorporates additives like silica fume, fly ash, and specific polymers to enhance durability, minimize permeability, and resist chemical degradation, ensuring long-term structural integrity. Acid-resistant concrete is essential for tunnel linings in wastewater treatment plants, chemical factories, and mining operations where acid corrosion poses a significant threat.
Overview of Shotcrete in Tunnel Construction
Shotcrete, a pneumatically applied concrete, offers rapid placement and excellent adhesion for tunnel lining, making it ideal for complex geometries and uneven surfaces. Its ability to achieve high early strength and reduced rebound minimizes construction time and waste compared to traditional acid-resistant concrete. Shotcrete's versatility in forming both temporary and permanent linings enhances structural stability and corrosion resistance in aggressive tunnel environments.
Key Properties: Acid Resistance vs. Durability
Acid-resistant concrete offers superior protection against aggressive chemical environments in tunnel linings, maintaining structural integrity through specialized cement mixes and additives that reduce permeability and resist acid attack. Shotcrete provides higher durability in terms of mechanical strength and adhesion to uneven surfaces, enabling rapid application and improved crack resistance under dynamic load conditions. Selecting between acid resistance and durability depends on the tunnel's exposure to acidic substances versus mechanical stress factors, influencing maintenance frequency and service life.
Installation Process: Conventional vs. Sprayed Applications
Acid-resistant concrete requires precise mixing and careful placement using conventional formwork to ensure consistent thickness and integrity in tunnel linings, with curing times impacting project timelines. Shotcrete employs a sprayed application method, allowing rapid installation directly onto tunnel surfaces, reducing formwork needs and adapting easily to complex geometries. The choice between conventional acid-resistant concrete and shotcrete depends on factors like project speed, surface complexity, and required chemical resistance.
Chemical Resistance in Aggressive Tunnel Environments
Acid-resistant concrete offers superior chemical resistance against aggressive tunnel environments by incorporating specialized cementitious materials and additives that withstand low pH levels and aggressive sulfates, ensuring long-term durability. Shotcrete, although versatile and providing excellent adhesion in complex tunnel geometries, typically requires additional coatings or admixtures to achieve comparable chemical resistance against acidic attacks. For tunnels exposed to highly corrosive substances such as sulfuric acid or acidic groundwater, acid-resistant concrete formulations deliver enhanced protection and prolong structural integrity more effectively than conventional shotcrete applications.
Structural Performance Comparison
Acid-resistant concrete demonstrates superior chemical durability and long-term structural integrity in tunnel linings exposed to highly corrosive environments, maintaining strength and reducing maintenance costs. Shotcrete offers high early strength and excellent adhesion properties, providing flexibility during tunnel construction and effectively resisting mechanical stresses. While acid-resistant concrete excels in chemical resistance and slow degradation under acidic attack, shotcrete is advantageous for rapid application and areas requiring complex shaping with immediate load-bearing capacity.
Cost Analysis and Lifecycle Considerations
Acid-resistant concrete typically involves higher initial material costs compared to shotcrete due to specialized additives that enhance chemical durability in tunnel linings exposed to aggressive environments. Shotcrete offers cost advantages in application speed and reduced formwork expenses, but may require more frequent maintenance or repairs, impacting long-term lifecycle costs. Evaluating total cost of ownership, acid-resistant concrete often provides better durability and lower lifecycle maintenance, making it more cost-effective for tunnels with severe acid exposure over extended service periods.
Maintenance and Longevity Factors
Acid-resistant concrete offers superior chemical resistance, significantly reducing degradation in highly acidic environments, thereby extending tunnel lining lifespan and minimizing maintenance frequency. Shotcrete provides faster application and excellent adhesion but may require more frequent inspections and repairs due to potential micro-cracks and porosity that reduce acid resistance over time. Long-term cost efficiency favors acid-resistant concrete, especially in tunnels exposed to aggressive chemical conditions, due to its enhanced durability and lower maintenance demands.
Choosing the Right Lining: Acid-Resistant Concrete or Shotcrete
Choosing the right tunnel lining hinges on chemical exposure and structural demands; acid-resistant concrete offers enhanced durability against aggressive environments due to its specialized chemical composition. Shotcrete provides rapid application and flexibility, making it ideal for irregular surfaces and complex geometries, though it may require additional protective coatings in acidic conditions. Evaluating the tunnel's exposure to corrosive agents and load-bearing requirements ensures optimal selection between acid-resistant concrete's longevity and shotcrete's versatility.

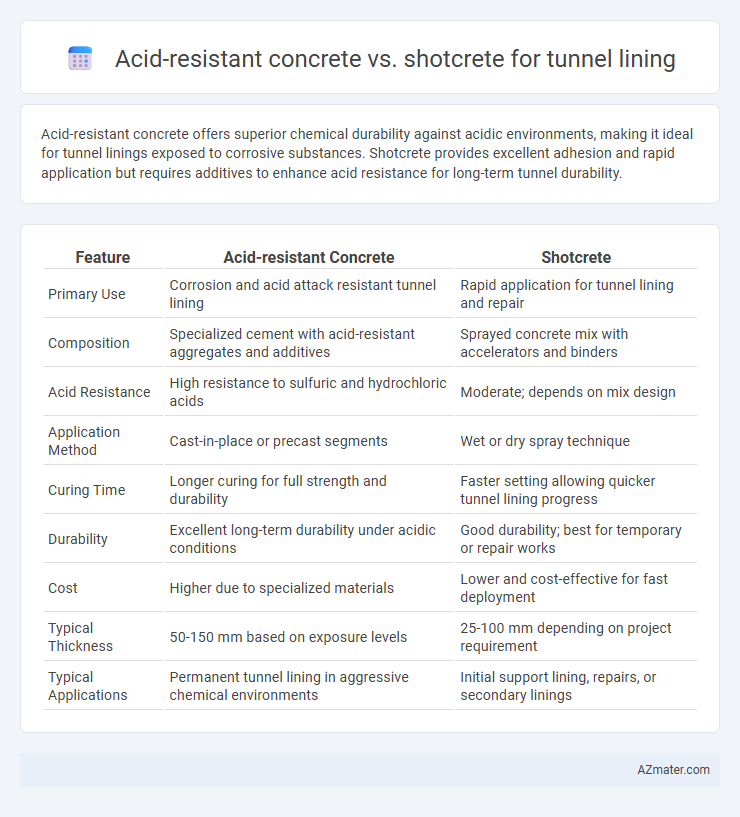

Infographic: Acid-resistant concrete vs Shotcrete for Tunnel lining
