Hybrid composite vs. metal matrix composite for bicycle frame - What is The Difference?

Hybrid composite bicycle frames offer superior strength-to-weight ratios and enhanced vibration damping compared to metal matrix composites, which provide higher thermal resistance and durability under extreme stress. Choosing between these materials depends on prioritizing lightweight performance or enhanced wear resistance for specific cycling conditions.

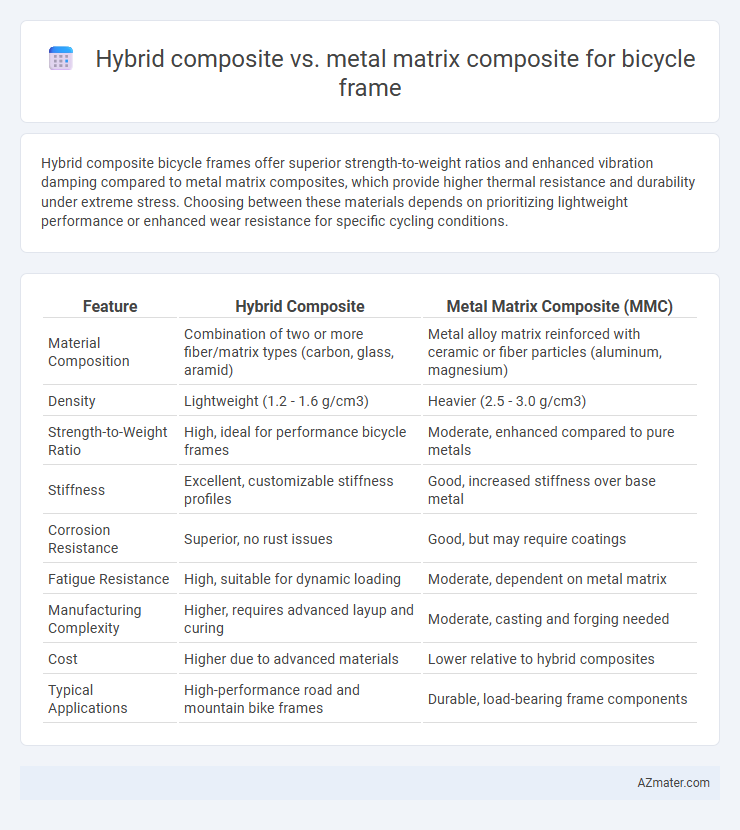

Table of Comparison

Introduction to Bicycle Frame Materials

Bicycle frames utilize advanced materials to optimize performance, with hybrid composites and metal matrix composites (MMCs) representing innovative options beyond traditional steel and aluminum. Hybrid composites, combining materials like carbon fiber and glass fiber, offer enhanced strength-to-weight ratios and improved vibration damping crucial for ride comfort and durability. Metal matrix composites, typically aluminum or titanium reinforced with ceramic fibers or particles, provide superior stiffness, wear resistance, and thermal stability, making them suitable for high-performance, lightweight frames requiring exceptional mechanical properties.

Overview of Hybrid Composites

Hybrid composites combine two or more fiber types, such as carbon and glass fibers, embedded in a polymer matrix to achieve an optimized balance of strength, stiffness, and weight for bicycle frames. These composites offer enhanced impact resistance and improved fatigue life compared to metal matrix composites, which typically use metal matrices like aluminum or magnesium reinforced with ceramic particles or fibers. The tailored properties of hybrid composites allow for customized performance characteristics, making them ideal for lightweight, durable, and high-performance bicycle frame applications.

Understanding Metal Matrix Composites

Metal matrix composites (MMCs) for bicycle frames combine lightweight metals such as aluminum or magnesium with ceramic reinforcements like silicon carbide or alumina to enhance strength, stiffness, and wear resistance. MMCs offer superior thermal stability and corrosion resistance compared to traditional alloys, providing increased durability and performance in demanding cycling conditions. Their high specific strength and improved fatigue resistance make MMCs a promising alternative to hybrid composites, which blend different fiber materials with polymer matrices but may lack the integrated toughness and thermal conductivity of metal-based composites.

Weight Comparison: Hybrid vs Metal Matrix

Hybrid composite bicycle frames typically offer significant weight advantages over metal matrix composites due to their use of lightweight fibers such as carbon or glass embedded in polymer matrices, resulting in lower density and improved strength-to-weight ratios. Metal matrix composites, often composed of aluminum or magnesium matrices reinforced with ceramic particles, exhibit higher density and thus tend to weigh more despite enhanced stiffness and durability. Consequently, hybrid composites are favored for ultralight, high-performance bicycle frames where minimizing weight is crucial to optimize speed and handling.

Strength and Durability Analysis

Hybrid composites for bicycle frames offer enhanced strength-to-weight ratios by combining fibers like carbon and glass, providing superior tensile strength and impact resistance compared to traditional metal matrix composites (MMCs). Metal matrix composites generally exhibit higher hardness and wear resistance due to metallic reinforcements such as silicon carbide or aluminum oxide but tend to have lower fatigue resistance under cyclic loads. Durability analysis indicates hybrid composites maintain structural integrity over prolonged stress cycles with reduced corrosion risk, while MMCs excel in thermal stability and stiffness but may experience microcracking over time in dynamic riding conditions.

Impact Resistance and Fatigue Performance

Hybrid composites offer superior impact resistance for bicycle frames by combining fibers such as carbon and aramid, which effectively absorb and dissipate energy during collisions. Metal matrix composites (MMCs), typically aluminum or titanium matrices reinforced with ceramic particles, provide excellent fatigue performance due to their enhanced stiffness and crack resistance under cyclic loading. Balancing these materials, hybrid composites excel in reducing frame weight while maintaining impact durability, whereas MMCs deliver longer fatigue life and structural integrity under repeated stress.

Manufacturing Processes and Cost Factors

Hybrid composite bicycle frames combine fibers like carbon and glass within a polymer matrix, utilizing processes such as resin transfer molding and filament winding, which offer flexibility but can be labor-intensive and costly due to material handling and curing times. Metal matrix composites (MMCs), typically aluminum reinforced with ceramic particles, are produced through powder metallurgy or stir casting, enabling higher thermal and mechanical properties but requiring expensive equipment and complex processing steps. Manufacturing costs for hybrid composites are influenced by raw fiber costs and labor-intensive layup, while MMCs incur higher expenses from metal alloy preparation and machining, making hybrid composites generally more cost-effective for lightweight bicycle frames.

Design Flexibility and Customization

Hybrid composites offer superior design flexibility and customization for bicycle frames by combining different fiber types and resin systems, allowing precise tailoring of mechanical properties, weight, and aesthetics to meet specific performance goals. Metal matrix composites, while providing excellent strength and thermal resistance, have more limited shaping capabilities and require complex manufacturing processes that restrict customization. The hybrid composite approach enables intricate frame geometries and optimized stiffness-to-weight ratios, catering to individual rider preferences and innovative design concepts.

Real-World Applications and Case Studies

Hybrid composites in bicycle frames offer enhanced impact resistance and improved vibration damping, ideal for off-road and mountain biking applications, as demonstrated in Trek's Fuel EX series. Metal matrix composites (MMCs), commonly aluminum reinforced with ceramic particles, provide superior stiffness-to-weight ratios and thermal stability, beneficial for high-performance racing bikes exemplified by specialized frame prototypes tested in competitive cycling events. Real-world case studies reveal that hybrid composites balance durability and comfort, while MMCs focus on maximizing structural rigidity and weight reduction under extreme racing conditions.

Future Trends in Bicycle Frame Materials

Hybrid composites and metal matrix composites (MMCs) represent cutting-edge advancements in bicycle frame materials, combining strength, lightweight properties, and durability. Future trends emphasize the integration of carbon fiber-reinforced polymers with metal matrices like aluminum or titanium to enhance impact resistance and reduce weight, optimizing performance for competitive cycling and urban commuting. Research focuses on improving recyclability and environmental sustainability while leveraging manufacturing technologies such as additive manufacturing and automated fiber placement to customize frame stiffness and rider ergonomics.
