Titanium diboride vs. tungsten carbide for armor plate - What is The Difference?

Titanium diboride offers superior hardness and lightweight properties compared to tungsten carbide, making it highly effective for armor plates requiring enhanced ballistic resistance and reduced weight. Tungsten carbide provides greater toughness and wear resistance but is significantly heavier, limiting mobility in armor applications.

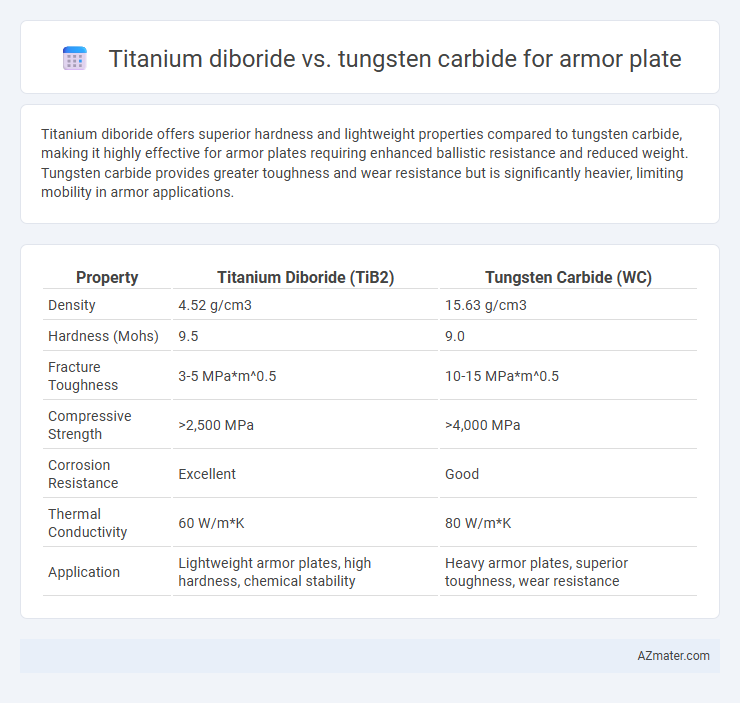

Table of Comparison

Overview of Titanium Diboride and Tungsten Carbide

Titanium diboride (TiB2) is an ultra-hard ceramic material known for its exceptional hardness, high melting point around 3225degC, and excellent wear and corrosion resistance, making it suitable for armor plates that require lightweight yet durable protection. Tungsten carbide (WC) is a dense, metal-ceramic composite with a melting point near 2870degC, offering superior toughness and high compressive strength commonly used in armor applications to resist high-velocity impact. Both materials provide advanced ballistic resistance, but TiB2 is favored for weight-sensitive armor systems while tungsten carbide excels in applications demanding extreme hardness and impact resistance.

Material Composition and Structure

Titanium diboride (TiB2) is a ceramic compound composed of titanium and boron, characterized by its high hardness, low density, and excellent corrosion resistance, which contributes to its superior ballistic performance in armor applications. Tungsten carbide (WC), composed of tungsten and carbon, offers exceptional toughness and wear resistance due to its densely packed hexagonal crystal structure but has a higher density compared to TiB2, affecting weight-sensitive designs. The polycrystalline structure of TiB2 enhances fracture toughness through grain boundary strengthening, while WC's cemented carbide matrix maximizes impact resistance, making TiB2 preferable for lightweight armor plates and WC suitable for high-impact environments where weight is less critical.

Hardness and Mechanical Strength Comparison

Titanium diboride (TiB2) exhibits a hardness of approximately 25-30 GPa, surpassing tungsten carbide (WC) which ranges around 18-23 GPa, making TiB2 highly resistant to abrasive wear. Mechanical strength in TiB2 is characterized by high compressive strength and excellent fracture toughness, often outperforming WC, which is more brittle despite its notable hardness. The superior hardness and combined mechanical properties of TiB2 make it a preferred choice for armor plates requiring enhanced durability and resistance to ballistic impact.

Ballistic Performance Against Projectiles

Titanium diboride exhibits superior ballistic performance against high-velocity projectiles compared to tungsten carbide due to its higher hardness (over 3500 HV) and lower density (4.52 g/cm3), resulting in enhanced weight efficiency and improved impact resistance. Tungsten carbide, while extremely hard (1600-2200 HV), has a higher density (15.6 g/cm3), leading to increased weight, which can reduce mobility but offers good resistance against penetration through mass. The ceramic nature of titanium diboride contributes to better spall resistance and energy dissipation, making it more effective in armor plates designed to defeat armor-piercing rounds and shaped charges.

Density and Weight Implications for Armor

Titanium diboride (TiB2) has a lower density of approximately 4.5 g/cm3 compared to tungsten carbide (WC), which has a density around 15.6 g/cm3, making TiB2 significantly lighter for armor applications. The reduced weight of TiB2 armor plates can enhance mobility and reduce overall system load without compromising hardness and ballistic resistance. Choosing TiB2 over WC impacts weight-sensitive armor designs by providing a favorable strength-to-weight ratio and improved fuel efficiency in armored vehicles.

Wear and Corrosion Resistance

Titanium diboride exhibits superior wear resistance compared to tungsten carbide, maintaining hardness under extreme conditions due to its strong covalent bonding and stability. Its exceptional corrosion resistance in aggressive environments surpasses tungsten carbide, which tends to degrade when exposed to acidic or oxidizing agents. This combination of high wear durability and chemical stability makes titanium diboride an ideal material for armor plates requiring prolonged service life in harsh operational settings.

Manufacturing and Processing Challenges

Titanium diboride (TiB2) offers superior hardness and wear resistance compared to tungsten carbide (WC), but its high melting point and chemical inertness pose significant manufacturing challenges, requiring advanced sintering techniques such as spark plasma sintering to achieve full densification. Tungsten carbide is easier to process through conventional powder metallurgy and carbide-cobalt sintering, yet its brittleness and lower thermal stability limit its performance in high-impact armor applications. The complex machining and joining of TiB2 armor plates necessitate specialized equipment and processes, increasing production costs relative to the more established and industrially mature WC-based armor solutions.

Cost and Availability of Both Materials

Titanium diboride offers high hardness and excellent wear resistance but remains expensive and less readily available due to complex manufacturing processes and limited suppliers. Tungsten carbide, widely used in armor plating, is more cost-effective and abundant, benefiting from established industrial production and larger-scale material availability. The choice between these materials often hinges on budget constraints and supply chain reliability, with tungsten carbide favored for cost-sensitive applications.

Real-World Applications in Modern Armor Plates

Titanium diboride (TiB2) offers exceptional hardness and high density, making it ideal for armor plates that require superior ballistic resistance and lightweight characteristics compared to tungsten carbide (WC). Tungsten carbide excels in abrasion resistance but typically results in heavier armor, which can limit mobility in military vehicles. Real-world applications prioritize TiB2 in advanced composite armor systems for personnel protection and lightweight vehicle armor where high strength-to-weight ratio is critical.

Future Prospects and Emerging Developments

Titanium diboride (TiB2) is gaining attention for armor applications due to its remarkable hardness, low density, and exceptional corrosion resistance, which contribute to lighter yet highly effective protective plates compared to traditional tungsten carbide (WC). Ongoing research explores nano-engineered TiB2 composites and additive manufacturing techniques to enhance toughness and scalability, addressing WC's limitations in weight and brittleness. Emerging developments in hybrid armor systems combine TiB2's ballistic performance with WC's high-density properties, promising next-generation armor with improved multi-threat resistance and reduced weight for military and aerospace applications.
