Silicon Nitride vs. Silicon Carbide for Turbine Blades - What is The Difference?

Silicon Nitride offers superior fracture toughness and thermal shock resistance compared to Silicon Carbide, making it ideal for turbine blades operating under rapid temperature fluctuations. Silicon Carbide excels in high-temperature strength and oxidation resistance, providing durability in extreme combustion environments.

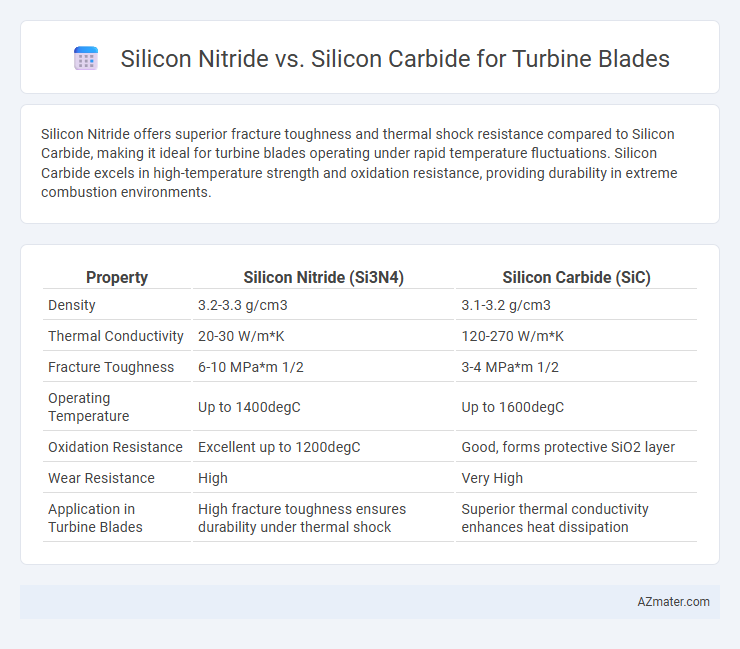

Table of Comparison

Introduction to Advanced Ceramics in Turbine Blades

Silicon nitride and silicon carbide are advanced ceramics widely used in turbine blades due to their exceptional mechanical strength, high thermal stability, and resistance to oxidation and corrosion. Silicon carbide offers superior hardness and thermal conductivity, making it ideal for withstanding extreme temperatures and thermal shock in turbine environments. Silicon nitride provides excellent fracture toughness and resistance to crack propagation, enhancing blade durability and reliability in high-stress operational conditions.

Overview of Silicon Nitride and Silicon Carbide

Silicon Nitride (Si3N4) and Silicon Carbide (SiC) are advanced ceramic materials extensively used in turbine blade applications due to their exceptional thermal stability and mechanical strength. Silicon Nitride offers superior fracture toughness, thermal shock resistance, and corrosion resistance, making it ideal for high-stress environments and rapid temperature fluctuations. Silicon Carbide provides outstanding hardness, high thermal conductivity, and exceptional oxidation resistance, which enhances wear resistance and reliability at elevated temperatures commonly experienced in turbine engine components.

Material Structure and Composition Differences

Silicon Nitride (Si3N4) features a dense, covalently bonded hexagonal crystal structure that grants high fracture toughness and thermal shock resistance, making it ideal for turbine blades subjected to rapid temperature changes. In contrast, Silicon Carbide (SiC) possesses a highly ordered, tetrahedral crystal lattice with strong covalent bonds, enhancing its hardness, thermal conductivity, and resistance to oxidation at elevated temperatures. The primary compositional difference is that Silicon Nitride incorporates nitrogen atoms bonded to silicon, creating a more flexible lattice that absorbs stress, while Silicon Carbide's structure consists of silicon and carbon atoms, resulting in higher stiffness and wear resistance suitable for harsher operational environments.

Mechanical Strength and Fracture Toughness Comparison

Silicon carbide exhibits higher mechanical strength with values reaching up to 600 MPa compared to silicon nitride, which typically ranges between 300-400 MPa, making it more suitable for high-stress turbine blade applications. Silicon nitride demonstrates superior fracture toughness, often around 10-12 MPa*m^0.5, exceeding that of silicon carbide, which generally falls between 3-5 MPa*m^0.5, providing improved resistance to crack propagation under thermal cycling conditions. The combination of silicon carbide's strength and silicon nitride's toughness influences material selection for turbine blades based on specific operational demands such as load-bearing capacity and thermal shock resistance.

Thermal Stability and Operating Temperature Ranges

Silicon Nitride offers excellent thermal stability with operating temperatures typically up to 1,370degC, making it suitable for high-stress turbine blade applications requiring resistance to thermal shock and oxidation. Silicon Carbide exhibits superior thermal conductivity and higher maximum operating temperatures, often exceeding 1,600degC, providing enhanced performance in extreme thermal environments. The choice between silicon nitride and silicon carbide depends on specific turbine conditions, balancing thermal stability, conductivity, and maximum temperature tolerance for optimal blade durability.

Wear and Corrosion Resistance Characteristics

Silicon carbide offers superior wear resistance for turbine blades due to its exceptional hardness and thermal stability, outperforming silicon nitride in high-stress environments. Silicon nitride provides excellent corrosion resistance, especially against oxidation and molten metal attacks, maintaining structural integrity at elevated temperatures. The combination of silicon carbide's abrasive wear resistance and silicon nitride's chemical durability makes material selection dependent on specific turbine operating conditions.

Manufacturing Processes for Silicon Nitride vs Silicon Carbide

Silicon Nitride turbine blades are primarily manufactured through hot isostatic pressing (HIP) or sintering, which enables fine microstructural control and high fracture toughness. Silicon Carbide blades are commonly produced via chemical vapor deposition (CVD) or reaction bonding, offering superior hardness and thermal conductivity but with more complex shaping challenges. The differing manufacturing processes impact blade performance, with Silicon Nitride allowing intricate geometries and better impact resistance, while Silicon Carbide provides higher temperature stability but requires advanced machining techniques.

Performance in High-Speed and High-Load Conditions

Silicon carbide exhibits superior thermal conductivity and fracture toughness compared to silicon nitride, making it more suitable for turbine blades operating under high-speed and high-load conditions. Its high wear resistance and ability to maintain mechanical strength at elevated temperatures enable enhanced durability and performance in demanding environments. Silicon nitride, while offering excellent thermal shock resistance and lower density, typically provides less mechanical strength under extreme stress, limiting its application in the most aggressive turbine scenarios.

Cost Analysis and Economic Feasibility

Silicon Nitride offers lower initial material costs and ease of machining compared to Silicon Carbide, making it more economically feasible for turbine blade production in cost-sensitive applications. Silicon Carbide provides superior thermal conductivity and wear resistance, but these performance benefits come with higher raw material and manufacturing expenses. Balancing durability with production costs is critical, and Silicon Nitride often presents a more favorable cost-benefit ratio for turbines operating under moderate stress conditions.

Applications and Future Trends in Turbine Technology

Silicon Nitride (Si3N4) and Silicon Carbide (SiC) are advanced ceramics extensively used in turbine blade applications due to their exceptional high-temperature strength, thermal shock resistance, and oxidation resistance. SiC offers superior thermal conductivity and wear resistance ideal for gas turbine blade coatings, while Si3N4 provides enhanced fracture toughness and thermal stability beneficial in aero-engine components. Future trends in turbine technology emphasize the integration of SiC and Si3N4 composites leveraging additive manufacturing and nanostructuring to improve blade lifespan, efficiency, and performance under extreme operating conditions.
