Silicon Nitride vs. Alumina for Bearings - What is The Difference?

Silicon Nitride bearings offer higher hardness, superior wear resistance, and better thermal stability compared to Alumina, making them ideal for high-speed and high-temperature applications. Alumina bearings provide cost-effective corrosion resistance and electrical insulation but have lower toughness and fracture resistance than Silicon Nitride.

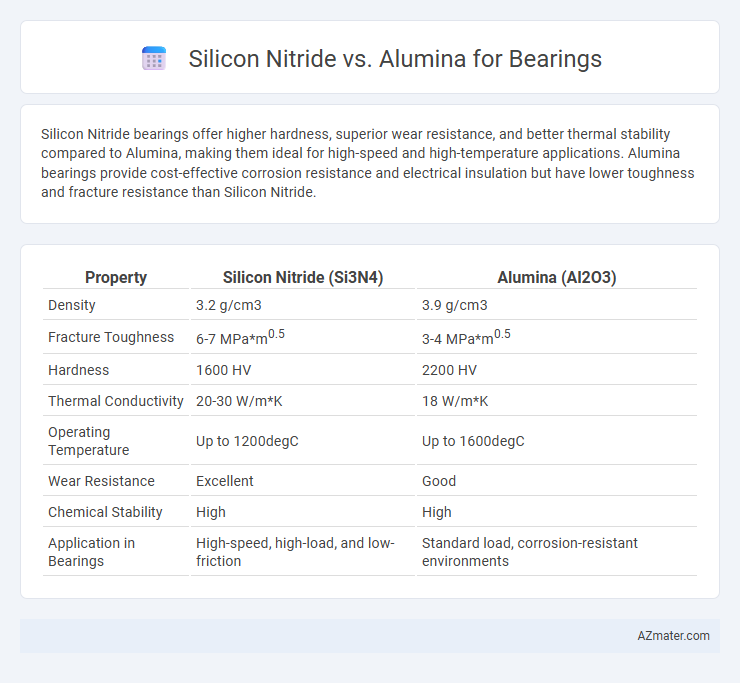

Table of Comparison

Overview of Silicon Nitride and Alumina

Silicon nitride bearings exhibit exceptional hardness, high fracture toughness, and excellent thermal shock resistance, making them ideal for high-speed and high-temperature applications. Alumina bearings offer superior wear resistance, chemical stability, and cost-effectiveness, commonly used in corrosive environments and electrical insulation. The choice between silicon nitride and alumina depends on operational demands, with silicon nitride favored for performance-intensive conditions and alumina preferred for durability and budget constraints.

Material Properties Comparison

Silicon nitride bearings exhibit superior wear resistance, higher fracture toughness, and lower density compared to alumina, resulting in enhanced performance in high-speed and high-temperature applications. Alumina offers excellent hardness and corrosion resistance but is more brittle and heavier, limiting its suitability for dynamic loads and impact stresses. The thermal conductivity of silicon nitride is significantly higher, improving heat dissipation and overall bearing lifespan in demanding environments.

Mechanical Strength and Toughness

Silicon Nitride exhibits superior mechanical strength and toughness compared to Alumina, with flexural strength values often exceeding 1,000 MPa versus Alumina's typical range of 300-600 MPa. The fracture toughness of Silicon Nitride, approximately 6-7 MPa*m^0.5, outperforms Alumina, which generally ranges around 3-4 MPa*m^0.5, resulting in better resistance to crack propagation. These properties make Silicon Nitride bearings more durable under high-stress, impact, and thermal shock conditions commonly found in advanced engineering applications.

Wear and Corrosion Resistance

Silicon nitride bearings exhibit superior wear resistance due to their high hardness, low friction coefficient, and excellent thermal stability, making them ideal for high-speed and high-load applications. Alumina bearings, while offering good wear resistance, typically display lower toughness and higher brittleness, which can lead to increased wear under extreme stresses. In terms of corrosion resistance, silicon nitride demonstrates exceptional resistance to chemical attack and oxidation, outperforming alumina, which may degrade in aggressive environments or under exposure to moisture.

Thermal Conductivity and Expansion

Silicon nitride bearings exhibit superior thermal conductivity, typically around 20 W/m*K, facilitating efficient heat dissipation during high-speed or high-temperature operations compared to alumina's lower thermal conductivity of approximately 30 W/m*K, which might vary depending on purity. Silicon nitride also has a lower coefficient of thermal expansion, roughly 3.2 x 10-6 /degC, enhancing dimensional stability under thermal cycling, whereas alumina's higher thermal expansion coefficient near 7 x 10-6 /degC can lead to greater thermal stress. These thermal properties make silicon nitride bearings better suited for high-performance applications requiring rapid heat transfer and minimal thermal deformation.

Performance in High-Speed Applications

Silicon nitride bearings exhibit superior performance in high-speed applications due to their lower density and higher hardness, resulting in reduced centrifugal forces and enhanced wear resistance compared to alumina. Their excellent thermal stability and lower thermal expansion minimize deformation under high rotational speeds, ensuring consistent precision and longer service life. Alumina bearings, while cost-effective and corrosion-resistant, typically lag in mechanical strength and thermal shock resistance, making silicon nitride the preferred choice for demanding high-speed environments.

Cost and Manufacturing Considerations

Silicon nitride bearings, though offering superior performance in high-speed and high-temperature applications, typically involve higher manufacturing costs due to complex sintering and machining processes compared to alumina. Alumina bearings present a cost-effective alternative with easier fabrication but may exhibit lower toughness and wear resistance under extreme conditions. Manufacturers must balance material cost, machining complexity, and application demands when choosing between silicon nitride and alumina for bearing production.

Typical Industrial Applications

Silicon Nitride bearings are preferred in high-speed, high-temperature, and corrosive environments such as aerospace, automotive turbochargers, and high-precision machine tools due to their exceptional hardness, thermal stability, and resistance to wear and corrosion. Alumina bearings are commonly used in industrial applications involving electrical insulation, chemical processing, and food processing machinery where moderate mechanical strength and excellent chemical resistance are required. Both materials enhance bearing performance, with Silicon Nitride excelling in demanding dynamic conditions and Alumina providing reliable service in chemically aggressive or electrically sensitive environments.

Lifespan and Reliability Analysis

Silicon nitride bearings exhibit superior lifespan and reliability compared to alumina bearings due to their higher fracture toughness and resistance to thermal shock, enabling prolonged operation under high-speed and high-load conditions. The dense microstructure of silicon nitride reduces wear and corrosion rates, significantly extending bearing service intervals and minimizing failure risks in demanding environments. Alumina bearings, while cost-effective and chemically stable, typically demonstrate lower durability and fatigue resistance, resulting in shorter operational lifespans and increased maintenance frequency under comparable stress conditions.

Choosing the Right Ceramic for Bearings

Silicon nitride bearings offer superior wear resistance, thermal stability, and lower density compared to alumina, making them ideal for high-speed, high-temperature, and corrosive environments. Alumina bearings are more cost-effective and provide excellent hardness and chemical resistance but typically exhibit lower fracture toughness than silicon nitride. Selecting the right ceramic for bearings depends on application-specific factors such as load, speed, temperature, and exposure to chemicals, where silicon nitride is preferred for demanding conditions and alumina suits less aggressive requirements.
