Silicon carbide vs. boron carbide for abrasives - What is The Difference?

Silicon carbide offers higher thermal conductivity and superior chemical resistance, making it ideal for high-speed abrasive applications. Boron carbide excels in hardness and fracture toughness, providing exceptional performance in grinding and cutting tools for extremely hard materials.

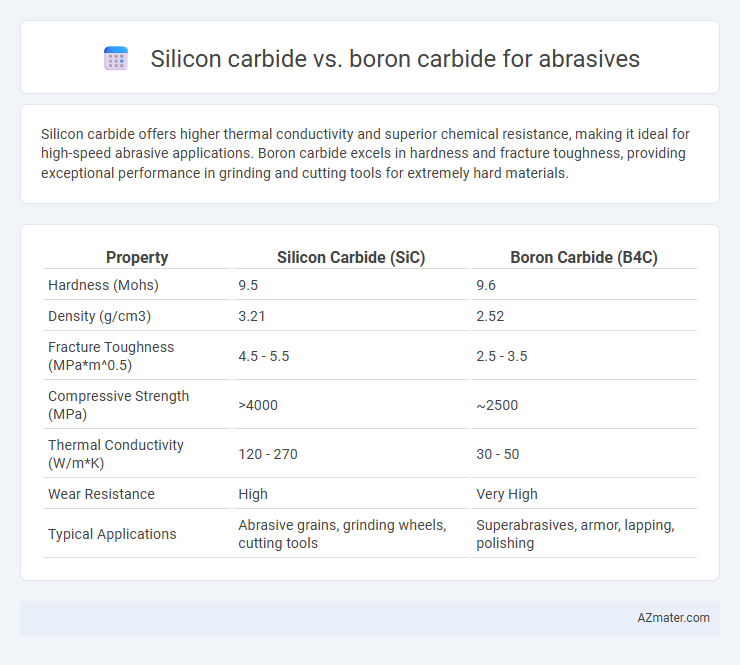

Table of Comparison

Introduction to Silicon Carbide and Boron Carbide Abrasives

Silicon carbide (SiC) and boron carbide (B4C) are renowned abrasives widely used for their hardness and thermal stability in industrial grinding and cutting applications. Silicon carbide offers exceptional hardness, sharpness, and chemical inertness, making it ideal for abrasive grains in sandpaper and grinding wheels. Boron carbide surpasses silicon carbide in hardness and impact resistance, excelling in ultra-hard abrasive applications such as lapping, polishing, and wear-resistant components.

Chemical Composition and Material Properties

Silicon carbide (SiC) is a compound of silicon and carbon known for its high hardness (Mohs scale ~9.5) and excellent thermal conductivity, making it ideal for precision abrasive applications. Boron carbide (B4C) features a complex structure of boron and carbon atoms, offering superior hardness (Mohs scale ~9.5-9.7) and exceptional chemical stability under acidic and basic conditions. The chemical composition of boron carbide provides higher fracture toughness and better performance in abrasive environments requiring resistance to wear and chemical corrosion compared to silicon carbide.

Hardness Comparison: Silicon Carbide vs Boron Carbide

Silicon carbide exhibits a Mohs hardness of approximately 9.5, making it one of the hardest synthetic abrasives, while boron carbide surpasses this with a hardness of about 9.6 to 9.7 on the Mohs scale, positioning it among the hardest materials after diamond and cubic boron nitride. The superior hardness of boron carbide translates to enhanced cutting performance and wear resistance, especially in applications demanding extreme abrasion resistance such as ballistic armor and industrial grinding. Silicon carbide remains economically advantageous for less demanding abrasive tasks, whereas boron carbide delivers superior durability and longevity in high-performance environments.

Abrasive Performance on Different Materials

Silicon carbide provides high hardness and sharpness making it ideal for grinding hard materials such as glass, ceramics, and cast iron, offering excellent abrasion resistance and thermal stability. Boron carbide surpasses silicon carbide in hardness and toughness, delivering superior performance on extremely hard and brittle materials like carbide tools, stone, and armor plating due to its exceptional wear resistance and low density. The choice between silicon carbide and boron carbide abrasives depends on the specific application material and desired balance between cost, cutting efficiency, and durability.

Wear Resistance and Longevity

Silicon carbide offers high hardness and thermal conductivity, making it effective for abrasive applications requiring moderate wear resistance and cost efficiency. Boron carbide exhibits superior wear resistance and exceptional hardness, significantly enhancing longevity in extreme abrasive environments. In highly abrasive and impact-intensive conditions, boron carbide outperforms silicon carbide, delivering longer service life despite higher material costs.

Cost Analysis and Economic Considerations

Silicon carbide is generally more cost-effective than boron carbide, offering a lower price per kilogram while maintaining high hardness and wear resistance suitable for abrasive applications. Boron carbide, although significantly more expensive due to complex manufacturing and rare raw materials, provides superior performance in extreme abrasion and cutting environments, which can justify its higher initial investment in specialized industries. Economic considerations depend on the balance between upfront material costs and the longevity or efficiency of the abrasive, with silicon carbide favored for budget-sensitive projects and boron carbide preferred for high-demand, precision operations.

Heat Resistance and Thermal Stability

Silicon carbide exhibits exceptional heat resistance with a melting point around 2,730degC, making it highly suitable for abrasive applications involving high temperatures. Boron carbide offers superior thermal stability and hardness but has a lower melting point near 2,350degC, limiting its heat resistance compared to silicon carbide. The choice between silicon carbide and boron carbide for abrasives depends on balancing the need for extreme heat endurance and hardness in specific industrial processes.

Applications in Industry and Manufacturing

Silicon carbide is widely utilized in abrasive applications such as grinding, cutting, and polishing due to its hardness and thermal conductivity, making it ideal for machining metals, ceramics, and glass. Boron carbide, with its exceptional hardness and low density, excels in abrasive blasting, lapping, and wear-resistant coatings, particularly in advanced manufacturing sectors like aerospace and nuclear industries. Both abrasives are critical for high-precision manufacturing, but boron carbide's superior toughness and chemical stability offer advantages in extreme conditions and specialized industrial processes.

Environmental Impact and Safety Factors

Silicon carbide and boron carbide are both highly effective abrasive materials distinguished by their environmental impact and safety profiles. Silicon carbide, derived primarily from sand and petroleum coke, has a relatively lower environmental footprint due to abundant raw materials and energy-efficient production, but it poses moderate inhalation risks as fine dust can irritate respiratory systems. Boron carbide, synthesized through more energy-intensive processes involving boron oxide and carbon sources, has a higher environmental cost but offers superior hardness and chemical stability with lower dust toxicity, making it safer for handling in abrasive applications.

Choosing the Best Abrasive: Decision Factors

Silicon carbide offers superior hardness and thermal conductivity, making it ideal for grinding metals and ceramics, while boron carbide excels in extreme wear resistance and fracture toughness, suited for cutting and blasting applications. Key decision factors include the material to be processed, required abrasive longevity, and cost efficiency, with silicon carbide favored for precision finishing and boron carbide for heavy-duty abrasion. Evaluating these properties ensures optimal performance and longevity in industrial abrasive use.
