Sapphire vs. Zirconia for LED substrate - What is The Difference?

Sapphire offers excellent thermal conductivity and chemical stability, making it the leading substrate material for high-performance LED production. Zirconia provides superior fracture toughness but lower thermal conductivity, limiting its use primarily to niche LED applications.

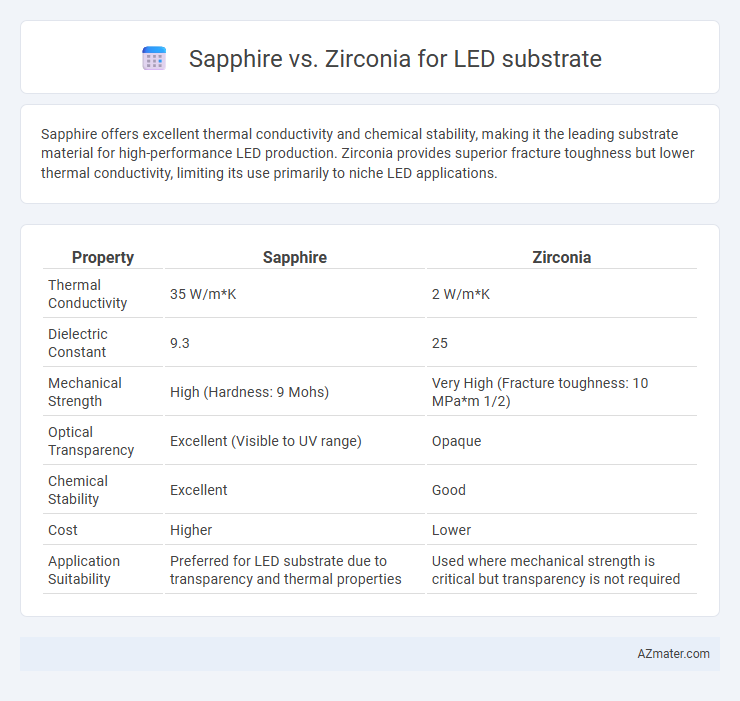

Table of Comparison

Introduction to LED Substrate Materials

Sapphire and zirconia are prominent materials used as substrates in LED manufacturing due to their thermal stability and lattice compatibility with gallium nitride (GaN) layers. Sapphire offers excellent optical transparency and cost-effectiveness, making it a popular choice for high-brightness LEDs, while zirconia provides superior mechanical strength and thermal conductivity, enhancing device reliability under high-power operation. Both substrates influence the crystalline quality and efficiency of LED devices by affecting epitaxial layer growth and heat dissipation.

Overview of Sapphire as an LED Substrate

Sapphire is a widely used LED substrate due to its excellent thermal conductivity, chemical stability, and high optical transparency within the visible and ultraviolet spectrum. Its hexagonal crystal structure supports epitaxial growth of gallium nitride (GaN), which is essential for efficient blue and white LED production. Despite its higher cost compared to alternatives like zirconia, sapphire's superior lattice matching and low defect density contribute to enhanced LED performance and longevity.

Overview of Zirconia as an LED Substrate

Zirconia as an LED substrate offers high fracture toughness and excellent thermal stability, making it a promising alternative to traditional sapphire substrates. Its superior resistance to thermal shock and mechanical stress supports improved LED device longevity and performance under high-power operation. Zirconia's compatibility with various epitaxial growth techniques further enhances its potential for efficient light emission and cost-effective manufacturing.

Key Material Properties: Sapphire vs Zirconia

Sapphire offers superior thermal conductivity and excellent chemical stability, making it ideal for high-power LED substrates that require efficient heat dissipation and durability. Zirconia provides higher fracture toughness and enhanced resistance to mechanical stress but has lower thermal conductivity compared to sapphire. Key properties such as optical transparency, dielectric strength, and lattice matching with LED materials favor sapphire in substrate applications, while zirconia's strength benefits niche LED designs requiring impact resistance.

Thermal Conductivity Comparison

Sapphire substrates exhibit a thermal conductivity of approximately 35 W/m*K, which is significantly higher than zirconia's thermal conductivity, typically around 2 W/m*K, making sapphire more effective for heat dissipation in LED applications. Efficient thermal management is critical for LED performance and longevity, and sapphire's superior thermal conductivity helps maintain lower junction temperatures during operation. Zirconia's lower thermal conductivity can lead to increased thermal resistance, potentially reducing LED efficiency and lifespan under high-power conditions.

Optical Transparency and Refractive Index

Sapphire substrates exhibit high optical transparency in the visible to ultraviolet spectrum, making them ideal for LED applications that require efficient light transmission. Their refractive index, approximately 1.76 at 550 nm, enables better light extraction compared to zirconia, which has a refractive index around 2.1 but lower transparency in the visible spectrum. The superior transparency of sapphire leads to enhanced LED efficiency despite zirconia's higher refractive index that can cause increased internal light scattering.

Mechanical Strength and Durability

Sapphire substrates offer superior mechanical strength with a high hardness rating of 9 on the Mohs scale, making them highly resistant to scratches and wear in LED applications. Zirconia, while slightly less hard, provides excellent fracture toughness and impact resistance, enhancing durability under mechanical stress. Both materials contribute to LED substrate longevity, but sapphire's combination of hardness and chemical stability typically makes it the preferred choice for high-performance and long-lasting LED devices.

Cost and Availability Considerations

Sapphire substrates offer high availability and proven performance in LED manufacturing but come at a higher cost due to complex crystal growth processes and limited suppliers. Zirconia presents a more cost-effective alternative with easier scalability and lower raw material expenses, although its availability is increasing as production methods improve. Choosing between sapphire and zirconia hinges on balancing the premium price of sapphire against the emerging availability and affordability of zirconia substrates.

Performance Impact on LED Devices

Sapphire substrates offer excellent thermal conductivity and high crystalline quality, enhancing LED efficiency and longevity by reducing dislocation densities in the epitaxial layers. Zirconia exhibits superior thermal expansion matching with LED materials, minimizing stress-induced defects but generally provides lower thermal conductivity compared to sapphire. The choice between sapphire and zirconia significantly impacts LED device performance, with sapphire favored for high-brightness applications and zirconia used where thermal expansion compatibility is critical.

Future Trends in LED Substrate Materials

Sapphire remains a dominant LED substrate due to its excellent thermal conductivity and chemical stability, but emerging advances in cubic zirconia are driving interest because of its superior refractive index and potential cost-effectiveness. Future trends indicate increased research into hybrid substrates combining sapphire's durability with zirconia's optical performance to enhance LED efficiency and lifespan. Innovations in material engineering and doping techniques aim to optimize these substrates for high-brightness, energy-efficient LED applications in automotive and consumer electronics.
