Porcelain vs. Ferrite for Magnetic Core - What is The Difference?

Porcelain cores offer high electrical insulation and mechanical strength but lack magnetic permeability, while ferrite cores provide excellent magnetic properties and low eddy current loss, making ferrite ideal for high-frequency magnetic applications. Choosing between porcelain and ferrite depends on the need for insulation versus magnetic performance in core materials.

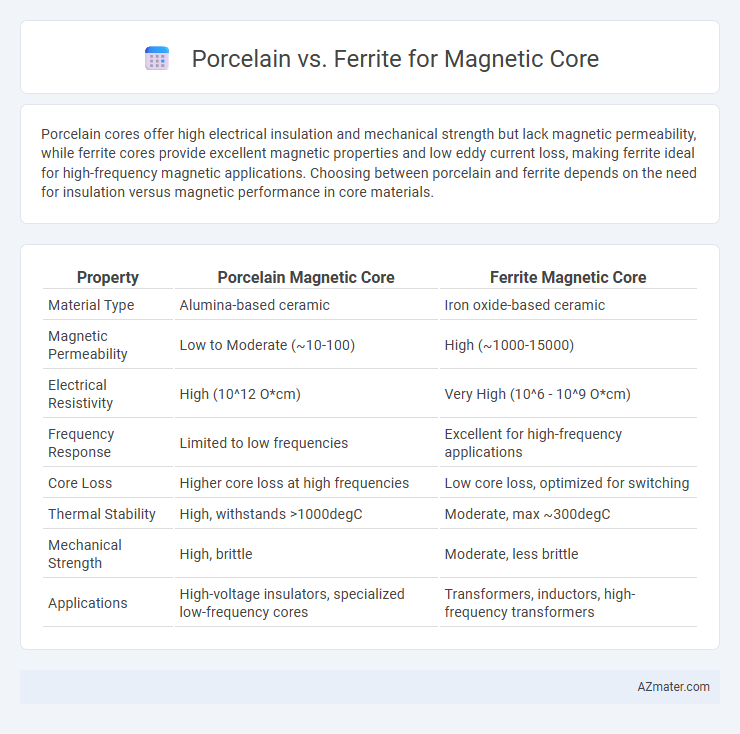

Table of Comparison

Introduction to Magnetic Core Materials

Magnetic core materials, such as porcelain and ferrite, play a crucial role in electromagnetic applications by influencing magnetic permeability and losses. Ferrite cores, composed of iron oxide combined with metallic elements like manganese or zinc, offer high magnetic permeability and low eddy current losses, making them ideal for high-frequency transformers and inductors. Porcelain cores, although less common, provide excellent mechanical strength and thermal stability but generally exhibit lower magnetic performance compared to ferrite cores.

Overview of Porcelain Magnetic Cores

Porcelain magnetic cores offer high electrical insulation and excellent mechanical strength, making them ideal for high-frequency applications and transformers. Their ceramic-based composition provides superior thermal stability compared to ferrite cores, allowing operation in harsh environments without significant performance degradation. Porcelain cores exhibit lower magnetic permeability but higher saturation flux density, which limits core losses at elevated temperatures while maintaining efficiency in power systems.

Overview of Ferrite Magnetic Cores

Ferrite magnetic cores are composed of iron oxide mixed with other metallic elements, providing high magnetic permeability and low electrical conductivity, which reduces eddy current losses. These cores are widely used in high-frequency applications such as transformers, inductors, and antennas due to their excellent magnetic properties and cost-effectiveness. Compared to porcelain cores, ferrite cores offer superior performance in handling high-frequency magnetic fields and are more efficient in minimizing energy losses.

Key Material Properties: Porcelain vs Ferrite

Porcelain magnetic cores exhibit high mechanical strength and excellent thermal stability but have lower magnetic permeability and higher coercivity compared to ferrite cores, which offer superior magnetic properties like high permeability and low core loss ideal for high-frequency applications. Ferrite cores are composed of mixed metal oxides, resulting in low electrical conductivity and minimal eddy current losses, while porcelain cores, being ceramic, tend to have higher electrical resistivity but less efficient magnetic performance. The choice between porcelain and ferrite cores depends on the application's frequency range, power handling, and magnetic efficiency requirements.

Magnetic Performance Comparison

Porcelain cores exhibit lower magnetic permeability and higher core losses compared to ferrite cores, which provide superior magnetic performance due to their high permeability and low eddy current losses. Ferrite materials enable efficient magnetic flux conduction with minimal hysteresis, making them ideal for high-frequency applications where reduced energy loss is critical. Porcelain's brittle nature and lower magnetic saturation limit its use primarily to insulating components rather than active magnetic cores.

Thermal Stability and Heat Resistance

Porcelain magnetic cores exhibit superior thermal stability withstanding temperatures up to 1300degC, making them ideal for high-temperature applications. Ferrite cores have lower heat resistance, typically rated around 300degC to 400degC, which limits their use in environments with extreme thermal conditions. The choice between porcelain and ferrite cores depends largely on the thermal requirements and operational temperature ranges of the specific application.

Electrical Conductivity and Losses

Porcelain cores exhibit very low electrical conductivity, which significantly reduces eddy current losses in high-frequency applications, making them ideal for energy-efficient magnetic components. In contrast, ferrite cores possess moderate electrical conductivity and exceptionally low core losses due to their high resistivity and magnetic permeability, enhancing performance in transformers and inductors. Selecting between porcelain and ferrite depends on the required balance of magnetic efficiency and electrical insulation in the device design.

Applications of Porcelain vs Ferrite Cores

Porcelain magnetic cores are primarily used in high-temperature and high-voltage applications such as specialized transformers and electrical insulators, benefiting from their excellent thermal stability and mechanical strength. Ferrite cores dominate in high-frequency applications including inductors, transformers, and antennas due to their superior magnetic permeability and low eddy current losses. The choice between porcelain and ferrite cores largely depends on operating frequency, thermal conditions, and mechanical requirements of the electronic or electrical device.

Durability and Longevity Analysis

Porcelain magnetic cores exhibit exceptional durability due to their high resistance to heat, corrosion, and mechanical stress, making them suitable for harsh environments and ensuring long-term stability in performance. Ferrite cores, while offering lower mechanical strength compared to porcelain, provide superior magnetic properties with low core losses at high frequencies, which contributes to enhanced efficiency and prolonged operational life in electronic applications. The choice between porcelain and ferrite cores depends on balancing mechanical robustness and magnetic performance needs specific to the application environment.

Cost Efficiency and Market Availability

Ferrite cores offer superior cost efficiency due to their low manufacturing expenses and abundant raw material availability, making them widely accessible in global markets. Porcelain cores, while providing high temperature resistance, are significantly more expensive and less commonly used, limiting their market presence. The widespread adoption of ferrite cores in electronics and transformers underscores their economic advantage and ease of procurement.
