Forsterite vs. Porcelain for Spark Plug - What is The Difference?

Forsterite spark plugs offer superior thermal conductivity and higher melting points, enhancing engine durability in high-temperature conditions compared to traditional porcelain spark plugs. Their advanced ceramic composition minimizes thermal cracking and improves electrical insulation, leading to more reliable ignition performance.

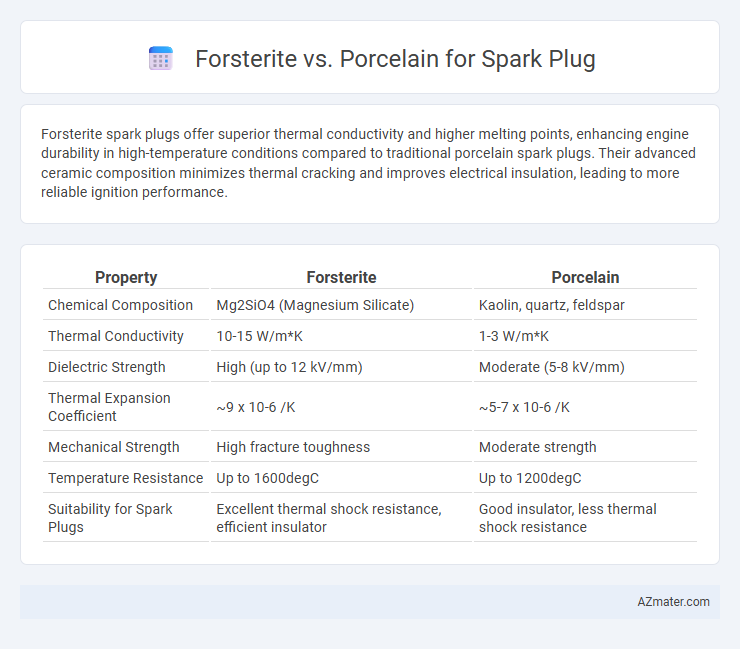

Table of Comparison

Introduction to Spark Plug Insulators

Spark plug insulators play a critical role in ensuring optimal ignition performance by providing electrical insulation and heat resistance between the central electrode and the metal shell. Forsterite, a magnesium silicate ceramic, offers superior thermal conductivity and mechanical strength compared to traditional porcelain materials, enhancing spark plug durability under extreme engine conditions. Porcelain remains widely used due to its excellent insulating properties and cost-effectiveness, but forsterite insulators improve thermal shock resistance and minimize electrical leakage for high-performance applications.

Overview of Forsterite and Porcelain

Forsterite, a magnesium silicate mineral, offers excellent thermal conductivity and high-temperature resistance, making it suitable for spark plug insulators that demand durability in extreme conditions. Porcelain, a ceramic material composed primarily of kaolin, quartz, and feldspar, provides strong electrical insulation and mechanical strength but is less effective in heat dissipation compared to forsterite. The choice between forsterite and porcelain impacts spark plug performance, with forsterite enabling better heat management and porcelain delivering reliable insulation and durability.

Chemical Composition: Forsterite vs Porcelain

Forsterite spark plugs primarily consist of magnesium silicate (Mg2SiO4), offering high thermal conductivity and excellent resistance to thermal shock, which enhances spark plug durability. Porcelain spark plugs are made mainly from alumina (Al2O3), providing superior electrical insulation and structural strength but lower thermal conductivity compared to forsterite. The chemical composition difference directly impacts the spark plug's heat dissipation, insulation properties, and overall performance in ignition systems.

Thermal Conductivity and Heat Resistance

Forsterite spark plug insulators exhibit superior thermal conductivity compared to porcelain, allowing for more efficient heat dissipation and reducing the risk of overheating. Their enhanced heat resistance enables consistent performance under extreme engine temperatures, making forsterite a preferred choice in high-performance and high-temperature applications. Porcelain insulators, while reliable, have lower thermal conductivity and heat resistance, which can lead to slower heat transfer and potential hot spots in demanding environments.

Electrical Insulation Properties Comparison

Forsterite offers superior electrical insulation properties compared to porcelain, exhibiting higher dielectric strength and better resistance to thermal shock, which enhances spark plug performance in high-temperature conditions. Porcelain, while providing adequate insulation, tends to have lower dielectric strength and can be more susceptible to cracking under rapid temperature changes, potentially reducing spark efficiency and durability. Forsterite's enhanced electrical insulation capabilities make it a preferred choice in spark plug applications requiring consistent performance and longevity.

Mechanical Strength and Durability

Forsterite exhibits superior mechanical strength and durability compared to porcelain when used in spark plug insulators, offering enhanced resistance to thermal shock and mechanical stress. Its high fracture toughness and stability under extreme temperature fluctuations reduce the risk of cracking and failure in demanding engine environments. Porcelain, while commonly used, tends to be more brittle and less capable of withstanding continuous high-stress conditions, leading to shorter service life in high-performance applications.

Manufacturing Process Differences

Forsterite spark plugs are manufactured using high-purity Mg2SiO4 ceramic, which involves sintering magnesium oxide and silica at elevated temperatures to achieve exceptional thermal stability and insulating properties. Porcelain spark plugs utilize a feldspathic ceramic composed primarily of kaolin, feldspar, and quartz, fired at lower temperatures that produce a dense but less thermally robust material. The manufacturing differences result in Forsterite plugs offering superior heat resistance and dielectric strength compared to traditional porcelain spark plugs, enhancing performance in high-temperature combustion environments.

Performance in High-Temperature Environments

Forsterite spark plugs exhibit superior performance in high-temperature environments due to their enhanced thermal conductivity and excellent resistance to thermal shock, maintaining stability under extreme combustion temperatures. Porcelain insulators, while effective for standard applications, tend to degrade faster and show reduced dielectric strength when exposed to prolonged high heat, leading to potential misfires or spark plug failure. The crystalline structure of forsterite allows for more efficient heat dissipation, resulting in improved longevity and consistent ignition performance in demanding engine conditions.

Cost and Availability Analysis

Forsterite spark plug insulators typically offer higher durability but come at a significantly higher cost compared to porcelain alternatives, which are more affordable and widely available. Porcelain insulators benefit from established manufacturing processes, resulting in easier procurement and lower lead times across global markets. Cost-sensitive applications favor porcelain due to its balance of performance and accessibility, while high-performance or industrial uses may justify the investment in forsterite despite its premium price and limited suppliers.

Conclusion: Choosing the Best Material for Spark Plugs

Forsterite offers superior thermal conductivity and durability, making it an excellent choice for spark plug insulators in high-performance engines. Porcelain provides reliable insulation with lower production costs, suitable for standard automotive applications. Selecting the best material depends on the engine's operating conditions, with Forsterite preferred for extreme thermal environments and Porcelain favored for cost-effective, everyday use.
