Electric ceramic vs. optical ceramic for laser window - What is The Difference?

Electric ceramic offers excellent electrical insulation and high dielectric strength, making it suitable for laser windows requiring robust electrical isolation. Optical ceramic provides superior transparency, uniformity, and thermal stability, essential for high-performance laser windows demanding minimal light scattering and distortion.

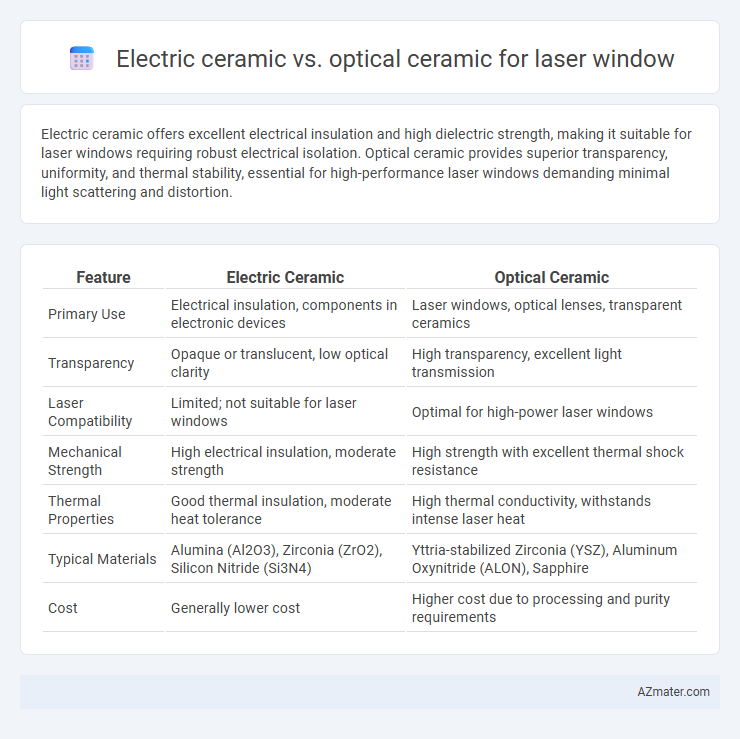

Table of Comparison

Introduction to Laser Window Materials

Laser window materials include electric ceramics and optical ceramics, each offering distinct properties for high-performance laser applications. Electric ceramics, such as alumina or zirconia, provide excellent mechanical strength and electrical insulation but may have higher optical losses. Optical ceramics like YAG (Yttrium Aluminum Garnet) and sapphire exhibit superior transparency, thermal conductivity, and laser damage resistance, making them ideal for precise laser window functions.

Defining Electric Ceramic and Optical Ceramic

Electric ceramic, also known as dielectric ceramic, is a material characterized by high electrical insulation, low dielectric loss, and excellent thermal stability, commonly used in electronic components such as capacitors and insulators. Optical ceramic refers to polycrystalline transparent ceramics engineered for superior optical clarity, durability, and laser damage resistance, making them ideal for laser windows and optical lenses. While electric ceramics prioritize electrical properties, optical ceramics emphasize high transmittance and minimal scattering for laser applications.

Key Material Properties Comparison

Electric ceramic for laser windows typically offers higher dielectric strength and excellent thermal stability, making it suitable for high-voltage and high-temperature environments. Optical ceramic excels in optical transparency, low scattering, and refractive index uniformity, critical for minimizing laser beam distortion and ensuring precise transmission. The choice depends on prioritizing electrical insulation and mechanical robustness versus optical clarity and minimal signal loss in laser applications.

Optical Transparency and Transmission Rates

Optical ceramic laser windows exhibit superior optical transparency with transmission rates often exceeding 90% across a broad wavelength range, making them ideal for high-power laser applications requiring minimal signal loss. Electric ceramics typically have lower transparency due to their microstructural composition, resulting in reduced transmission and higher scattering, which limits their use in laser windows. Advanced optical ceramics are engineered with precise grain size control and high purity, enhancing their effectiveness in transmitting laser beams with minimal distortion.

Thermal Stability and Heat Resistance

Electric ceramic materials exhibit high electrical insulation but lower thermal stability compared to optical ceramics designed for laser windows. Optical ceramics like yttria or sapphire demonstrate superior heat resistance and maintain structural integrity under intense laser irradiation due to their optimized crystal lattice and minimal thermal expansion coefficients. This thermal stability makes optical ceramics ideal for high-power laser applications requiring transparent and durable windows.

Mechanical Strength and Durability

Electric ceramics used for laser windows typically offer moderate mechanical strength but may lack resistance to thermal shock and mechanical stress compared to optical ceramics. Optical ceramics, engineered for high-purity and uniform microstructure, provide superior mechanical strength and enhanced durability under intense laser irradiation and thermal cycling. Their advanced fabrication processes result in fewer defects and higher fracture toughness, making optical ceramics the preferred choice for durable, high-performance laser windows.

Laser Damage Threshold Analysis

Electric ceramic and optical ceramic differ significantly in laser damage threshold, with optical ceramics typically exhibiting higher resistance to laser-induced damage due to their superior purity and homogeneity. Optical ceramics like Yttria or Aluminum Oxide are engineered for minimal absorption and scattering, enabling them to withstand higher laser fluences commonly encountered in high-power laser systems. Electric ceramics, often optimized for electrical insulation rather than optical clarity, tend to have lower laser damage thresholds due to inherent microstructural defects and higher impurity levels.

Cost Efficiency and Manufacturing Considerations

Electric ceramic laser windows offer cost efficiency due to lower raw material expenses and simpler manufacturing processes compared to optical ceramics. Optical ceramics provide superior optical clarity and durability but require more complex fabrication techniques such as hot isostatic pressing, increasing production time and cost. Manufacturing considerations favor electric ceramics for bulk applications where budget constraints prevail, whereas optical ceramics are preferred in precision laser systems demanding high performance and reliability.

Application Suitability: Choosing the Right Ceramic

Electric ceramics offer high dielectric strength and thermal stability, making them ideal for high-voltage laser window applications in power electronics. Optical ceramics provide superior transparency, low scattering, and excellent resistance to laser-induced damage, which is critical for precision laser optics and high-power laser systems. Selecting the right ceramic depends on balancing electrical insulation needs with optical clarity requirements to optimize laser window performance.

Conclusion: Which Ceramic is Best for Laser Windows?

Optical ceramics are preferred for laser windows due to their superior transparency and minimal light scattering, which ensures high laser transmission efficiency and accuracy. Electric ceramics, while offering excellent thermal and mechanical properties, typically lack the necessary optical clarity and uniformity required for precise laser applications. Therefore, optical ceramics provide the best balance of durability and optical performance for laser window applications.
