azmater.com Dielectric ceramics offer excellent electrical insulation and thermal stability, making them ideal for high-speed ball bearings in electrical applications. Silicon nitride provides superior hardness, fracture toughness, and corrosion resistance, enhancing durability and performance in high-load, high-temperature bearing environments.
Table of Comparison
| Material | Dielectric Ceramic | Silicon Nitride (Si3N4) |
|---|---|---|
| Dielectric Properties | High electrical insulation, low permittivity | Moderate dielectric properties, not primarily insulative |
| Mechanical Strength | Good strength but brittle | Exceptional strength and fracture toughness |
| Thermal Conductivity | Low thermal conductivity | High thermal conductivity, excellent heat dissipation |
| Wear Resistance | Moderate wear resistance | Superior wear and abrasion resistance |
| Density | Typically 3.8 - 6 g/cm3 | Lower density, approx. 3.2 g/cm3 |
| Operating Temperature | Up to 1000degC | Up to 1400degC |
| Corrosion Resistance | Good, depending on composition | Excellent chemical inertness |
| Common Uses in Ball Bearings | Used when electrical insulation is critical | Preferred for high-speed, high-load applications |
Introduction to Ball Bearing Materials
Dielectric ceramics, such as zirconia and alumina, offer excellent electrical insulation and high corrosion resistance, making them suitable for specialized ball bearings in electrically sensitive environments. Silicon nitride, a high-performance ceramic, provides superior hardness, thermal stability, and fatigue resistance, leading to enhanced load capacity and longer bearing life in demanding applications. The choice between dielectric ceramics and silicon nitride depends on the specific requirements for electrical insulation versus mechanical performance in ball bearing materials.
Overview of Dielectric Ceramics
Dielectric ceramics used in ball bearings, such as zirconia and alumina, offer exceptional electrical insulation, high hardness, and excellent wear resistance, enhancing bearing lifespan in electrically sensitive applications. These materials maintain stability under high temperatures and chemical exposure, making them ideal for use in electric motors and aerospace components. Unlike silicon nitride, dielectric ceramics provide superior dielectric strength but generally have lower fracture toughness and thermal shock resistance.
Properties of Silicon Nitride in Ball Bearings
Silicon nitride offers superior hardness, fracture toughness, and thermal stability compared to dielectric ceramics in ball bearings, enabling longer service life and higher load capacities. Its low density and high corrosion resistance reduce fatigue and wear, enhancing performance in high-speed and high-temperature applications. The material's excellent resistance to oxidation and thermal shock makes it ideal for demanding environments where dielectric ceramics may fail.
Strength and Mechanical Performance Comparison
Dielectric ceramics such as zirconia and alumina offer high hardness and excellent wear resistance but generally exhibit lower fracture toughness compared to silicon nitride, which combines high strength with superior fracture toughness and thermal shock resistance. Silicon nitride ball bearings demonstrate enhanced mechanical performance under high load and speed conditions due to their ability to withstand impact and resist crack propagation better than traditional dielectric ceramics. The superior tensile strength and fatigue resistance of silicon nitride make it the preferred choice in demanding applications requiring long bearing life and exceptional mechanical reliability.
Electrical Insulation Capabilities
Dielectric ceramic ball bearings exhibit superior electrical insulation capabilities compared to silicon nitride bearings, preventing current flow and reducing the risk of electrical pitting and damage in electric motors. Silicon nitride, while offering high strength and thermal resistance, has a lower electrical resistivity, making it less effective as an insulator under high voltage conditions. For applications requiring enhanced electrical insulation, dielectric ceramic materials like zirconia or alumina are preferred to ensure optimal performance and longevity.
Thermal Conductivity and Temperature Resistance
Dielectric ceramics used in ball bearings typically exhibit lower thermal conductivity, around 2-4 W/mK, compared to silicon nitride, which offers higher thermal conductivity values near 20 W/mK, enhancing heat dissipation during operation. Silicon nitride's exceptional temperature resistance allows it to maintain mechanical strength and dimensional stability at temperatures exceeding 1200degC, whereas dielectric ceramics generally withstand lower maximum temperatures around 800-1000degC. This superior thermal performance of silicon nitride makes it ideal for high-speed, high-temperature applications in advanced ball bearing designs.
Wear, Corrosion, and Friction Analysis
Dielectric ceramic ball bearings offer superior corrosion resistance due to their electrical insulation properties and are less prone to wear under electrical discharge conditions, making them ideal for high-voltage applications. Silicon nitride bearings exhibit exceptional wear resistance and low friction coefficients due to their high hardness and smooth surface finish, resulting in extended service life in abrasive environments. Both materials outperform traditional steel bearings in corrosion resistance, but silicon nitride achieves lower friction and better wear characteristics, enhancing efficiency and reliability in high-speed, high-temperature applications.
Applications in Industry: Dielectric Ceramic vs Silicon Nitride
Dielectric ceramic ball bearings excel in electrical insulation and high-frequency applications, making them indispensable in electrical motors, aerospace, and medical devices where preventing electrical currents is critical. Silicon nitride ball bearings offer superior hardness, thermal stability, and resistance to corrosion, which suits demanding industries such as automotive, turbine engines, and manufacturing automation exposed to high temperatures and harsh environments. Both materials advance industrial performance, with dielectric ceramics preferred for electrical isolation and silicon nitride favored for mechanical durability and thermal endurance in industrial applications.
Cost and Availability Considerations
Dielectric ceramic ball bearings typically offer lower material costs and broader availability due to established manufacturing processes and widespread use in various industries. Silicon nitride bearings, although more expensive, provide superior performance characteristics such as higher stiffness and thermal stability but have limited suppliers and higher production costs. Cost-efficiency and supply chain accessibility often make dielectric ceramics the preferred choice for large-scale, cost-sensitive applications.
Conclusion: Choosing the Optimal Material
Silicon nitride outperforms dielectric ceramics for ball bearings due to its superior hardness, thermal stability, and resistance to wear and corrosion, making it ideal for high-speed and high-temperature applications. Dielectric ceramics offer excellent electrical insulation and are beneficial in applications requiring non-conductive properties but typically lack the mechanical toughness found in silicon nitride. For optimal performance and longevity in demanding industrial environments, silicon nitride is the preferred choice, while dielectric ceramics suit specialized, electrically insulating roles.

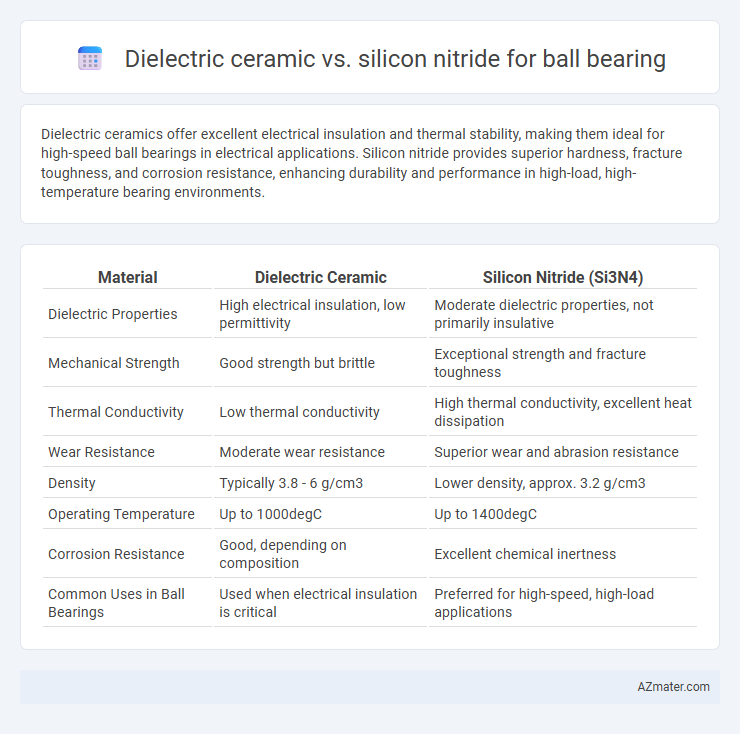

Infographic: Dielectric ceramic vs Silicon nitride for Ball bearing
