Barium Titanate vs. Lead Zirconate Titanate for Piezoelectric Actuators - What is The Difference?

Barium Titanate offers lead-free, environmentally friendly piezoelectric properties with moderate dielectric constant and piezoelectric coefficients, making it suitable for eco-conscious actuator applications. Lead Zirconate Titanate (PZT) provides superior piezoelectric performance, higher electromechanical coupling, and greater stability, establishing it as the industry standard for high-precision piezoelectric actuators.

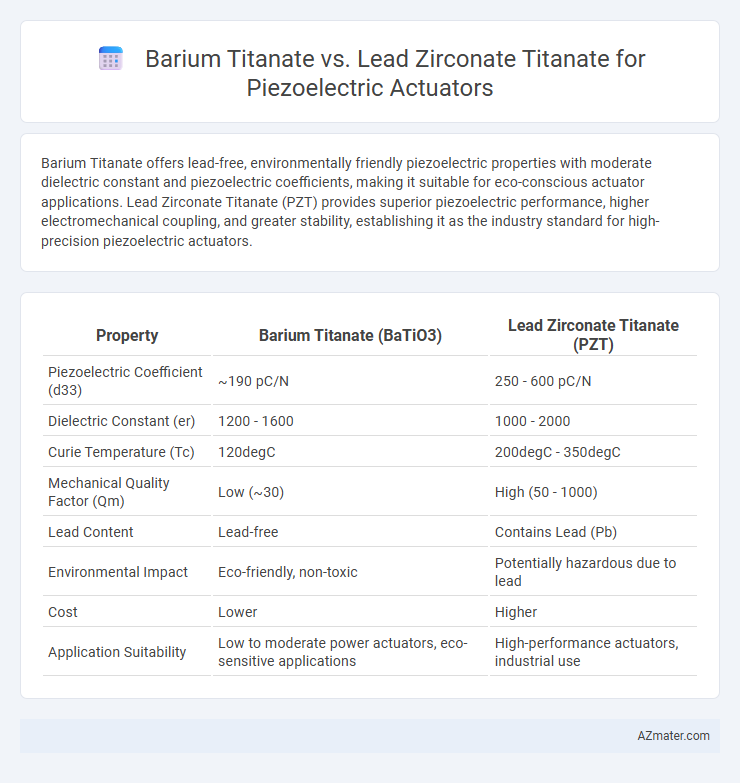

Table of Comparison

Introduction to Piezoelectric Actuators

Piezoelectric actuators convert electrical energy into precise mechanical displacement using materials like Barium Titanate (BaTiO3) and Lead Zirconate Titanate (PZT), each exhibiting distinct piezoelectric coefficients and dielectric properties critical for actuator performance. Barium Titanate offers environmental advantages with lead-free composition and moderate piezoelectric response, while Lead Zirconate Titanate is renowned for high piezoelectric constants and strong electromechanical coupling, making it dominant in high-precision applications. Material selection for piezoelectric actuators depends on factors such as operating voltage range, mechanical stability, and frequency response tailored to specific actuation requirements.

Overview of Barium Titanate (BaTiO₃)

Barium Titanate (BaTiO3) is a lead-free perovskite ceramic renowned for its excellent piezoelectric properties, high dielectric constant, and ferroelectric behavior at room temperature, making it a promising material for environmentally friendly piezoelectric actuators. Its tetragonal crystal structure below the Curie temperature (~120degC) enables spontaneous polarization, critical for actuator sensitivity and responsiveness. Compared to Lead Zirconate Titanate (PZT), BaTiO3 offers reduced toxicity and better compatibility with biomedical applications despite generally lower piezoelectric coefficients.

Overview of Lead Zirconate Titanate (PZT)

Lead Zirconate Titanate (PZT) is a widely used piezoelectric ceramic known for its exceptional electromechanical coupling coefficients and high dielectric constant, making it ideal for piezoelectric actuators. PZT exhibits superior piezoelectric strain coefficients (d33 values typically ranging from 200 to 600 pC/N) and excellent temperature stability compared to Barium Titanate, enabling precise and efficient actuation. Its versatility and tunable properties through compositional adjustments provide enhanced performance in sensors, actuators, and transducers across a broad range of applications.

Piezoelectric Properties Comparison

Barium Titanate exhibits strong piezoelectric properties with a relatively high dielectric constant and moderate Curie temperature, making it suitable for low- to medium-performance piezoelectric actuators. Lead Zirconate Titanate (PZT) outperforms Barium Titanate with superior piezoelectric coefficients (d33 values often above 300 pC/N) and higher electromechanical coupling factors, enabling more efficient energy conversion and higher actuator sensitivity. PZT also offers better temperature stability and a wider operational range, making it the preferred material for high-performance piezoelectric actuators in demanding applications.

Dielectric and Ferroelectric Performance

Barium Titanate exhibits high dielectric constant and low dielectric loss, making it suitable for piezoelectric actuators requiring stable dielectric properties. Lead Zirconate Titanate (PZT) offers superior ferroelectric performance with higher remnant polarization and coercive field, enabling greater actuation strain and sensitivity. The enhanced ferroelectric behavior of PZT results in improved piezoelectric coefficients, outperforming Barium Titanate in electromechanical coupling efficiency.

Environmental and Safety Considerations

Barium Titanate (BaTiO3) offers an environmentally safer alternative to Lead Zirconate Titanate (PZT) in piezoelectric actuators due to its lead-free composition, reducing toxic lead disposal concerns and health risks. PZT contains lead oxide which poses significant environmental hazards during manufacturing, use, and disposal, contributing to soil and water contamination. Regulatory pressures and increasing demand for eco-friendly materials drive the adoption of barium titanate in applications prioritizing sustainability and worker safety.

Manufacturing and Cost Factors

Barium Titanate offers a lead-free alternative with lower raw material costs and simpler processing techniques compared to Lead Zirconate Titanate, which requires more complex synthesis and handling due to its lead content. Manufacturing Barium Titanate actuators benefits from reduced environmental regulations and safer waste disposal, significantly cutting operational expenses. However, Lead Zirconate Titanate typically delivers superior piezoelectric performance, potentially justifying its higher production costs in high-precision applications.

Application Suitability in Actuators

Barium Titanate exhibits high dielectric constant and strong piezoelectric properties, making it suitable for low-power, precision piezoelectric actuators in medical ultrasound and micro-positioning systems. Lead Zirconate Titanate (PZT) offers superior piezoelectric coefficients and mechanical durability, which enables its application in high-force, high-frequency actuators such as industrial robotics and ultrasonic transducers. The choice between Barium Titanate and PZT depends largely on the actuator's required power, frequency response, and mechanical stress tolerance.

Recent Advances and Research Trends

Recent advances in piezoelectric actuators highlight Barium Titanate's (BaTiO3) enhanced environmental stability and lead-free composition, making it a preferred material in sustainable applications. Research trends demonstrate significant improvements in Lead Zirconate Titanate (PZT) through domain engineering and compositional modifications, achieving superior piezoelectric coefficients and electromechanical coupling factors. Emerging studies compare Barium Titanate's tunability and fatigue resistance against PZT's high piezoelectric response, shaping future actuator designs with balanced performance and eco-friendly standards.

Conclusion: Choosing the Right Material

Barium Titanate offers lead-free, environmentally friendly piezoelectric properties with moderate dielectric permittivity and piezoelectric coefficients, suitable for low-power and medical applications. Lead Zirconate Titanate (PZT) exhibits superior piezoelectric performance, higher Curie temperature, and greater mechanical strength, making it ideal for industrial and precision actuator uses. Selection depends on balancing environmental impact, performance requirements, and operational conditions to optimize actuator functionality.
