Aluminum Nitride vs. Earthenware for Substrate - What is The Difference?

Aluminum nitride offers superior thermal conductivity up to 170 W/mK compared to earthenware's low 1-2 W/mK, making it ideal for high-power electronic substrates. Earthenware substrates provide cost-effective insulation but lack the mechanical strength and thermal performance required for advanced semiconductor applications.

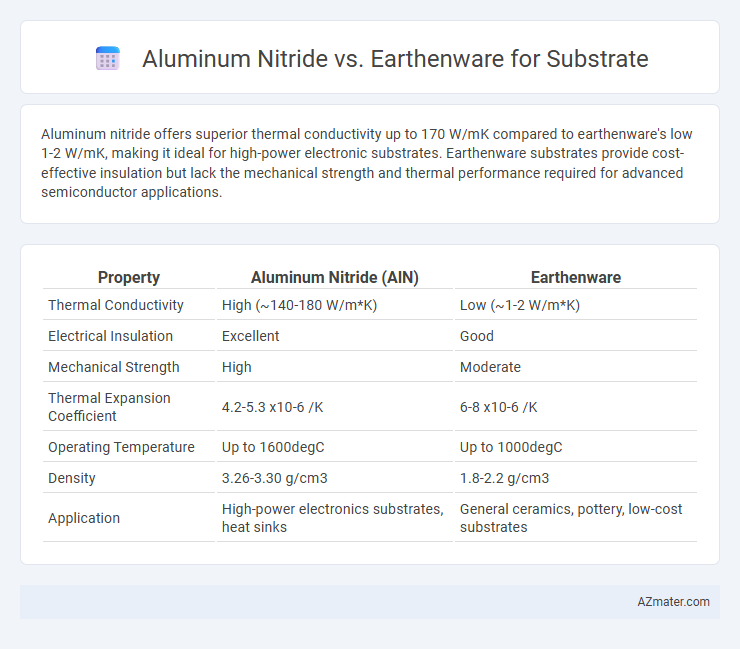

Table of Comparison

Introduction to Substrate Materials

Aluminum nitride (AlN) offers exceptional thermal conductivity of up to 285 W/m*K, making it ideal for high-performance electronic substrates where heat dissipation is critical. Earthenware, a ceramic material with thermal conductivity typically below 2 W/m*K, is often used in low-cost, non-electronic substrate applications due to its brittleness and lower thermal efficiency. The choice between aluminum nitride and earthenware substrates heavily depends on thermal management requirements, mechanical strength, and cost constraints in electronic and industrial applications.

Overview of Aluminum Nitride Substrates

Aluminum nitride substrates offer superior thermal conductivity, typically around 170-200 W/m*K, making them ideal for high-power electronic applications requiring efficient heat dissipation. Their excellent electrical insulation and low thermal expansion coefficient ensure reliability and performance in semiconductor packaging and LED devices. Compared to earthenware, aluminum nitride substrates provide enhanced durability, higher mechanical strength, and better resistance to thermal shock.

Earthenware Substrates: Properties and Uses

Earthenware substrates are characterized by their porous structure, moderate thermal conductivity, and excellent electrical insulation, making them suitable for applications requiring heat dissipation without electrical interference. Their affordability and ease of manufacturing contribute to widespread use in ceramic insulators, electronic packaging, and traditional cookware. Despite lower thermal performance compared to aluminum nitride, earthenware remains favored for cost-effective and chemically stable substrate solutions.

Thermal Conductivity: Aluminum Nitride vs Earthenware

Aluminum nitride offers exceptional thermal conductivity, typically around 170-200 W/m*K, making it ideal for high-performance substrates requiring efficient heat dissipation. Earthenware, by contrast, exhibits significantly lower thermal conductivity, generally below 2 W/m*K, limiting its effectiveness in thermal management applications. The stark difference in thermal properties makes aluminum nitride the preferred choice in electronics and high-temperature environments where rapid heat transfer is critical.

Electrical Insulation Capabilities

Aluminum nitride (AlN) exhibits superior electrical insulation properties with a high dielectric strength typically around 10-15 kV/mm, making it an excellent substrate for high-power and high-frequency electronic applications. Earthenware, a traditional ceramic material, has comparatively lower dielectric strength and higher porosity, which can compromise consistent electrical insulation performance. The thermal conductivity of aluminum nitride also enhances its insulating reliability under thermal stress, outperforming earthenware substrates in modern electronic device manufacturing.

Mechanical Strength Comparison

Aluminum nitride exhibits significantly higher mechanical strength compared to earthenware, with a tensile strength typically around 300-500 MPa, while earthenware ranges between 20-50 MPa. The superior hardness and fracture toughness of aluminum nitride make it ideal for applications requiring durability and resistance to mechanical stress. Earthenware, being more brittle and prone to cracking, is less suitable for substrates subjected to high mechanical loads or repeated thermal cycling.

Chemical Resistance and Durability

Aluminum nitride offers exceptional chemical resistance against acids, bases, and solvents, making it ideal for harsh environments where substrate stability is critical. Earthenware, while cost-effective, is generally porous and susceptible to chemical degradation, reducing its durability in aggressive chemical applications. The superior mechanical strength and thermal stability of aluminum nitride significantly outperform earthenware, ensuring long-lasting substrate performance in demanding conditions.

Cost and Availability Considerations

Aluminum nitride substrates offer superior thermal conductivity and electrical insulation but come at a significantly higher cost, limiting their availability primarily to advanced electronic applications. Earthenware substrates are much more affordable and widely accessible, making them a cost-effective choice for decorative and low-performance uses. Businesses must weigh the premium price and specialized availability of aluminum nitride against the budget-friendly and readily available nature of earthenware when selecting a substrate material.

Applications in Electronics and Other Industries

Aluminum nitride (AlN) offers superior thermal conductivity and electrical insulation, making it ideal for high-performance electronic substrates used in power devices and LED packages. Earthenware substrates, while cost-effective and easy to manufacture, lack the thermal management capabilities required for advanced electronics but find applications in less demanding industrial components and decorative ceramics. Industries such as semiconductor manufacturing and automotive electronics favor aluminum nitride for its reliability under thermal stress, whereas earthenware suits traditional, non-electronic uses due to its mechanical strength and affordability.

Choosing the Right Substrate: Key Factors

Aluminum nitride offers superior thermal conductivity (up to 170 W/mK) and excellent electrical insulation, making it ideal for high-power electronic substrates requiring efficient heat dissipation. Earthenware, with low thermal conductivity and higher susceptibility to moisture absorption, is less suitable for advanced electronic applications but remains cost-effective for basic, low-heat substrates. Key factors in choosing between these materials include thermal management needs, electrical insulation properties, mechanical strength, and cost considerations relative to the application's performance requirements.
