Polyether ether ketone vs. Polyimide for flexible circuits - What is The Difference?

Polyether ether ketone (PEEK) offers superior thermal stability and chemical resistance compared to polyimide, making it ideal for high-performance flexible circuit applications. Polyimide provides excellent flexibility and dielectric properties but has lower mechanical strength and thermal endurance than PEEK.

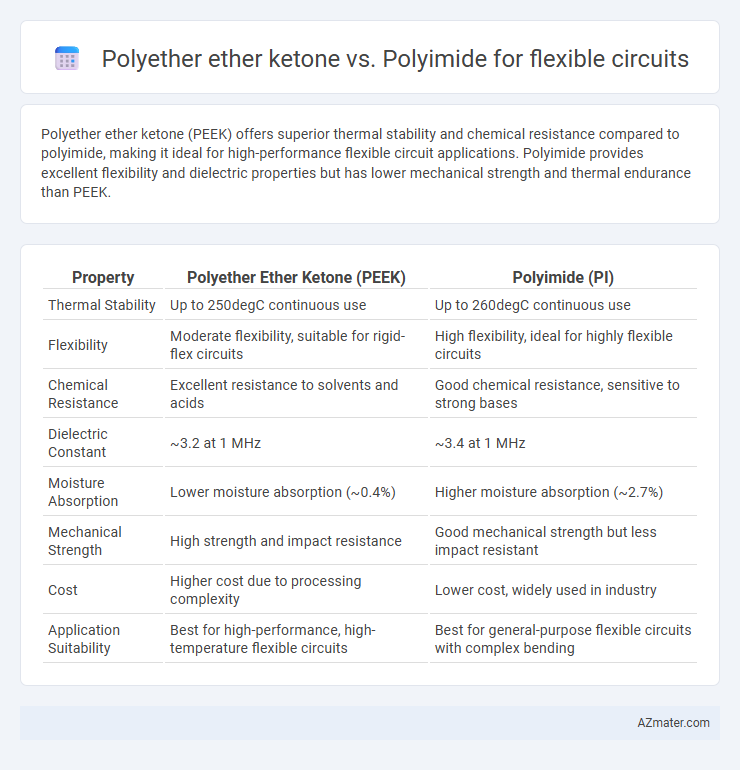

Table of Comparison

Introduction to Flexible Circuit Materials

Polyether ether ketone (PEEK) and Polyimide are prominent materials used in flexible circuit substrates, valued for their thermal stability and mechanical flexibility. PEEK exhibits superior chemical resistance and higher temperature tolerance up to 260degC, making it suitable for demanding aerospace and medical applications. Polyimide offers excellent dielectric properties and flexibility with reliable performance at temperatures up to 250degC, widely adopted in consumer electronics and automotive flexible circuits.

Overview of Polyether Ether Ketone (PEEK)

Polyether Ether Ketone (PEEK) is a high-performance thermoplastic known for its exceptional mechanical strength, chemical resistance, and thermal stability, commonly used in flexible circuit applications requiring durability. Its continuous service temperature can exceed 250degC, making it suitable for harsh environments where Polyimide also excels but may have slightly lower mechanical strength. PEEK's resistance to hydrolysis and radiation positions it as a robust alternative to Polyimide in flexible circuits demanding long-term reliability and environmental resilience.

Overview of Polyimide (PI)

Polyimide (PI) is a high-performance polymer widely used in flexible circuits due to its excellent thermal stability exceeding 400degC, outstanding chemical resistance, and superior mechanical strength. Its inherent dielectric properties and flexibility make it an ideal substrate for fine-line circuit patterns in demanding electronic applications. Compared to Polyether ether ketone (PEEK), PI offers greater flexibility and better performance in harsh electrical environments, enhancing device reliability.

Mechanical Properties Comparison

Polyether ether ketone (PEEK) exhibits superior mechanical strength and higher tensile modulus compared to polyimide, making it more resistant to deformation under stress in flexible circuit applications. PEEK maintains excellent dimensional stability and toughness at elevated temperatures, whereas polyimide offers good flexibility but lower impact resistance. The higher fatigue resistance of PEEK contributes to longer service life in dynamic mechanical environments typical of flexible circuits.

Thermal Stability and Heat Resistance

Polyether ether ketone (PEEK) exhibits superior thermal stability with a continuous operating temperature of up to 250degC, outperforming polyimide, which typically withstands temperatures around 200-230degC. PEEK's high heat resistance and low thermal degradation rate make it ideal for flexible circuits exposed to harsh thermal environments. Polyimide offers good flexibility and insulation but may experience reduced mechanical properties at elevated temperatures compared to PEEK.

Chemical Resistance and Durability

Polyether ether ketone (PEEK) exhibits superior chemical resistance against solvents, acids, and bases compared to polyimide, making it highly suitable for aggressive environments in flexible circuits. PEEK's high mechanical strength and thermal stability contribute to enhanced durability under mechanical stress and high-temperature conditions, outperforming polyimide in prolonged operational lifespans. Polyimide offers excellent dielectric properties and flexibility but is more prone to chemical degradation and mechanical wear in harsh industrial or automotive applications.

Electrical Performance and Insulation

Polyether ether ketone (PEEK) offers superior electrical insulating properties with a high dielectric strength of approximately 18-20 kV/mm, making it ideal for flexible circuits requiring reliable insulation under high voltages. Polyimide films, widely used in flexible electronics, provide excellent dielectric constants around 3.4 and maintain stable electrical performance across temperatures up to 400degC, ensuring consistent capacitance and minimal signal loss. The choice between PEEK and polyimide hinges on specific electrical insulation demands and thermal endurance, with PEEK excelling in harsh environments while polyimide balances flexibility and dielectric stability.

Processability and Manufacturability

Polyether ether ketone (PEEK) offers superior chemical resistance and thermal stability essential for flexible circuits but presents challenges in processability due to its high melting point around 343degC, requiring specialized high-temperature processing equipment. Polyimide boasts excellent flexibility and ease of processing at lower temperatures (typically 260-320degC), enabling cost-effective manufacturability with well-established fabrication techniques like roll-to-roll processing. Manufacturing yield for flexible circuits improves with polyimide substrates because of their inherent film uniformity and compatibility with standard photolithography, whereas PEEK demands advanced control to achieve comparable precision and throughput.

Cost Analysis and Commercial Availability

Polyether ether ketone (PEEK) offers superior thermal stability and chemical resistance but at a higher cost compared to polyimide, making it less attractive for budget-sensitive flexible circuit applications. Polyimide remains the industry standard due to its excellent balance of performance, affordability, and widespread commercial availability from multiple suppliers. Cost analysis shows polyimide materials are generally 30-50% less expensive and more readily available globally, supporting large-scale production and competitive pricing.

Application Suitability: PEEK vs Polyimide

Polyether ether ketone (PEEK) offers superior thermal stability with continuous use temperatures up to 250degC, making it ideal for flexible circuits in high-temperature environments compared to Polyimide's typical limit of around 200degC. PEEK exhibits excellent chemical resistance and mechanical strength, providing enhanced durability and longevity for flexible circuit substrates exposed to harsh chemicals and mechanical stress. Polyimide remains favored for its exceptional electrical insulation properties and flexibility at lower cost, suitable for applications where extreme thermal resistance and chemical durability are less critical.
