azmater.com Water glass offers high chemical durability and low cost but limited infrared transmission beyond 3 microns, while chalcogenide glass provides superior infrared transparency up to 12 microns with excellent optical performance and flexibility in mid- to far-infrared applications. Chalcogenide glass is preferred for advanced IR optics due to its higher refractive index and lower optical loss compared to water glass.
Table of Comparison
| Property | Water Glass | Chalcogenide Glass |
|---|---|---|
| Material Composition | Silicate-based glass with high water content | Contains sulfur, selenium, or tellurium elements |
| Infrared Transmission Range | Limited; effective up to ~2.5 mm | Broad; transparent from 1 mm to 12 mm (mid-IR) |
| Optical Refractive Index | Approx. 1.5 | High, typically 2.0 to 2.8 |
| Thermal Stability | Moderate; sensitive to moisture and thermal shock | High; good thermal resistance and stability |
| Mechanical Properties | Lower hardness; prone to scratching | Higher toughness; better durability |
| Application Suitability | Limited infrared optics; mainly near-IR | Ideal for mid-IR optics, sensors, imaging |
| Cost | Low to moderate | Higher due to specialized processing |
Introduction to Infrared Optics
Water glass and chalcogenide glass differ significantly in infrared optics applications due to their unique optical properties and transmission ranges. Water glass, primarily silica-based, offers high durability and excellent transmission in the near-infrared (NIR) region up to about 2.5 microns but is limited beyond this range. Chalcogenide glass, composed of sulfur, selenium, and tellurium, provides superior transmission in the mid-infrared (MIR) region from 2 to 12 microns, making it essential for advanced infrared sensing and imaging technologies.
Overview of Water Glass and Chalcogenide Glass
Water glass, primarily composed of silica-based materials, offers high transparency in the near-infrared region but suffers from significant absorption beyond 2.5 micrometers, limiting its use in long-wave infrared applications. Chalcogenide glass, consisting of sulfur, selenium, or tellurium elements combined with other metals, exhibits excellent transmission from 1 to 12 micrometers, enabling superior performance in mid- to far-infrared optics. The chemical stability and tailored refractive indices of chalcogenide glasses make them highly suitable for advanced infrared sensing, imaging, and communication systems compared to water glass.
Optical Properties in the Infrared Spectrum
Water glass exhibits strong absorption in the mid-infrared region around 2.7 um and 6 um due to O-H vibrational modes, limiting its transparency beyond 2.5 um. Chalcogenide glass offers superior infrared transmission across a broader range, typically from 1 um up to 12 um, with low phonon energy and minimal absorption losses, making it ideal for mid to far-infrared applications. Its high refractive index and excellent chemical durability also enhance optical performance in infrared spectroscopy and thermal imaging systems.
Transmission Range: Water Glass vs Chalcogenide Glass
Chalcogenide glass offers a broader transmission range in the infrared spectrum, typically from 1 to 12 micrometers, making it ideal for mid-IR applications, while water glass (sodium silicate glass) is limited to the near-infrared range, around 0.7 to 3 micrometers. This extended transmission range in chalcogenide glass enables better performance in thermal imaging, spectroscopy, and IR sensing compared to water glass. The lower transmittance cutoff and increased IR transparency of chalcogenide glass make it the preferred material for advanced infrared optics.
Refractive Index Comparison
Water glass exhibits a lower refractive index, typically around 1.46, compared to chalcogenide glass, which ranges from 2.0 to 3.0 depending on composition, making chalcogenide glass more suitable for infrared optics requiring high refractive indices. The higher refractive index of chalcogenide glass enables better light confinement and improved transmission in the mid- to far-infrared spectrum (2-12 um), whereas water glass's lower index limits its effectiveness in these wavelengths. This difference significantly impacts lens design, optical coatings, and device performance in infrared applications.
Thermal Stability and Durability
Water glass exhibits moderate thermal stability but is prone to degradation and moisture absorption, limiting its durability in infrared optical applications. Chalcogenide glass offers superior thermal stability with a higher softening point and excellent resistance to thermal shock, making it more durable for harsh infrared environments. The chemical robustness of chalcogenide glass enhances its longevity and performance in infrared optics compared to the hygroscopic nature of water glass.
Manufacturing and Cost Considerations
Water glass, primarily made from silica-based materials, offers cost-effective manufacturing through established melting and molding processes, making it suitable for infrared optics with moderate budget constraints. Chalcogenide glass requires specialized fabrication techniques such as controlled atmosphere melting and precision molding due to its sensitivity to oxidation and thermal instability, resulting in higher production costs. The choice between water glass and chalcogenide glass balances manufacturing complexity against performance needs, with water glass favored for affordable mass production and chalcogenide glass preferred for high-performance infrared applications despite increased expenses.
Environmental and Chemical Resistance
Water glass demonstrates strong environmental resistance with high durability against moisture and chemical corrosion, making it suitable for harsh conditions in infrared optics applications. Chalcogenide glass, while offering excellent infrared transparency, is more vulnerable to environmental degradation due to its sensitivity to oxidation and moisture exposure. Protective coatings or encapsulation are often necessary to enhance the chemical stability of chalcogenide glass in practical infrared optical devices.
Applications in IR Imaging and Sensing
Water glass exhibits strong absorption in the mid-infrared range, limiting its effectiveness for IR imaging and sensing, whereas chalcogenide glass offers superior transparency from 1 to 12 microns, making it ideal for thermal imaging and chemical sensing applications. Chalcogenide glasses enable high-performance IR lenses and fibers due to their low phonon energy and high refractive index, facilitating enhanced sensitivity in gas detection and night vision systems. Water glass is more suited for short-wave IR windows, while chalcogenide glass supports broadband IR applications crucial in environmental monitoring and medical diagnostics.
Future Trends in Infrared Optic Materials
Chalcogenide glass stands out in future infrared optic materials due to its superior transparency in the mid-infrared range (2-12 um) and enhanced nonlinear optical properties, enabling advanced sensor and imaging technologies. Water glass, primarily silicate-based, is limited by its strong absorption beyond 3 um, restricting its use in long-wave infrared applications. Emerging research focuses on engineering chalcogenide compositions for increased durability and integration with photonic devices, positioning it as the preferred material for next-generation infrared optics.

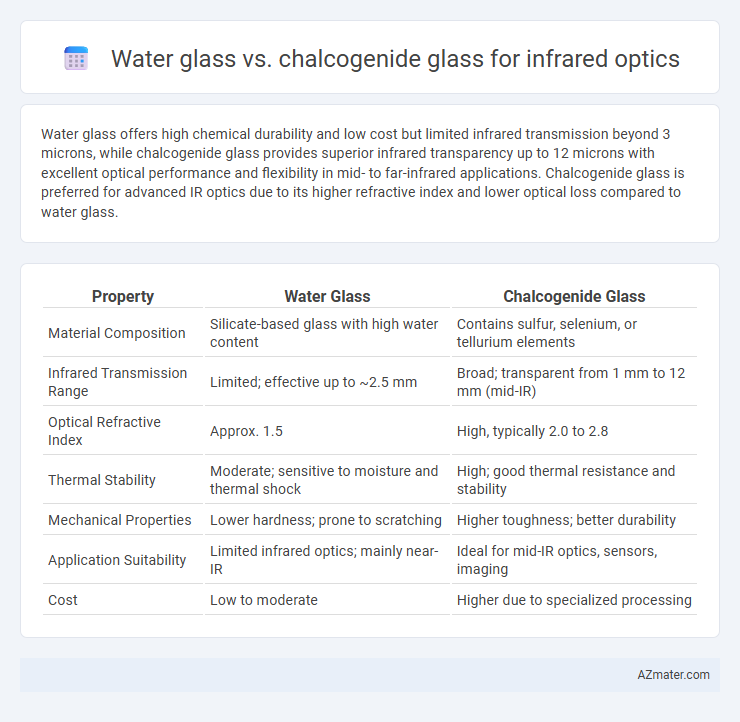

Infographic: Water glass vs Chalcogenide glass for Infrared optic
