Ion-exchange glass vs. chalcogenide glass for infrared optics - What is The Difference?

Ion-exchange glass offers enhanced durability and lower optical loss for infrared optics, while chalcogenide glass provides superior infrared transmission and broader wavelength coverage. Chalcogenide glass is preferred for mid to far-infrared applications due to its high refractive index and nonlinear optical properties.

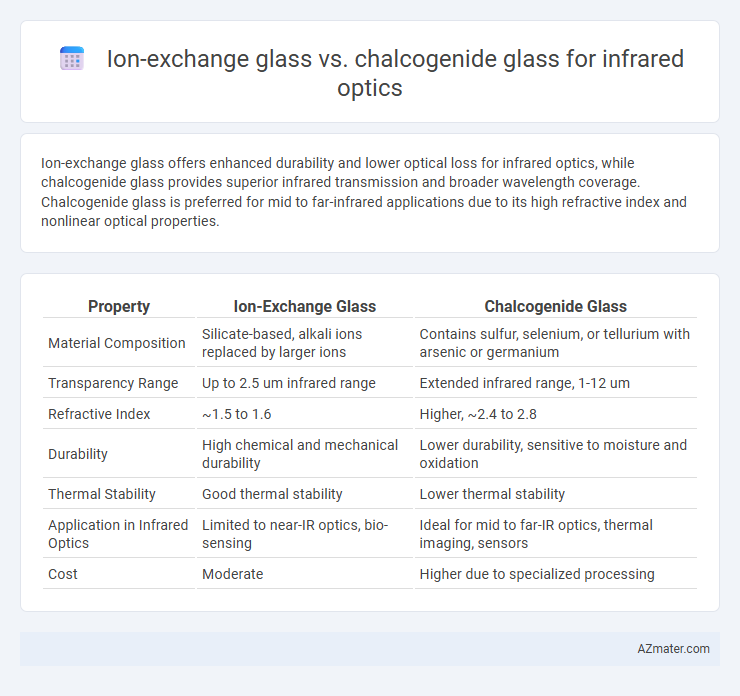

Table of Comparison

Introduction to Infrared Optics

Infrared optics rely on materials like ion-exchange glass and chalcogenide glass, each offering distinct transmission properties crucial for various applications. Ion-exchange glass provides enhanced durability and chemical resistance while maintaining moderate infrared transparency, making it suitable for robust environmental conditions. Chalcogenide glass exhibits superior infrared transmission across a wide spectral range, particularly in the mid- to far-infrared region, thus enabling high-performance sensing, imaging, and photonic devices.

Overview of Ion-Exchange Glass

Ion-exchange glass is a type of specialty glass engineered through an ion-exchange process that replaces smaller ions in the glass matrix with larger ones, enhancing its mechanical strength and chemical durability. This modification improves the glass's thermal stability and resistance to thermal shock, making it suitable for infrared optics applications where durability and performance are critical. In contrast to chalcogenide glass, ion-exchange glass typically exhibits higher hardness and better environmental resistance, though it may have lower infrared transmission in the longer wavelength range beyond 3 microns.

Overview of Chalcogenide Glass

Chalcogenide glass, composed primarily of sulfur, selenium, and tellurium, exhibits superior infrared transmission and high refractive indices compared to ion-exchange glass, making it ideal for mid-infrared optical applications. Its exceptional nonlinear optical properties and broad infrared transparency range from 2 to 12 micrometers enable advanced uses in thermal imaging, spectroscopy, and fiber optics. Chalcogenide glasses also demonstrate enhanced chemical durability and flexibility in doping, positioning them as a versatile material for infrared photonics beyond the visible and near-infrared capabilities of ion-exchange glass.

Key Material Properties Comparison

Ion-exchange glass exhibits higher mechanical strength and improved chemical durability, making it suitable for robust infrared optical components. Chalcogenide glass offers superior infrared transmission range, particularly beyond 2 microns, and a higher refractive index essential for efficient infrared lens design. The trade-off lies in ion-exchange glass's limited IR transparency versus chalcogenide glass's sensitivity to environmental degradation and mechanical fragility.

Transmission Range in the Infrared Spectrum

Ion-exchange glass exhibits limited transmission in the mid-infrared spectrum, typically up to around 2.5 micrometers, due to its silica-based composition, making it suitable for near-infrared applications. Chalcogenide glass offers a significantly broader transmission range, extending from approximately 1 micrometer to 12 micrometers or beyond, depending on its specific composition, enabling superior performance in mid- to far-infrared optics. The extended infrared transmission of chalcogenide glass is advantageous for applications requiring high transparency in thermal imaging, spectroscopy, and infrared sensing.

Thermal and Chemical Stability

Ion-exchange glass demonstrates superior chemical stability compared to chalcogenide glass due to its robust oxide network, making it less susceptible to moisture and environmental degradation in infrared optical applications. Chalcogenide glass, while offering excellent infrared transparency, often suffers from lower thermal stability with a narrower glass transition temperature range, limiting its performance under high-temperature conditions. The enhanced thermal resistance and chemical durability of ion-exchange glass make it a preferred choice for long-term infrared optical components exposed to harsh environments.

Fabrication Methods and Cost Efficiency

Ion-exchange glass for infrared optics typically involves a high-temperature chemical treatment where alkali ions in the glass matrix are replaced to enhance durability and refractive index control, offering a relatively low-cost fabrication process suitable for mass production. Chalcogenide glass fabrication requires controlled melting and rapid quenching of sulfur, selenium, or tellurium-based compounds, followed by precise thermal annealing, resulting in higher material costs and complex processing demands due to sensitivity to impurities and crystallization. While ion-exchange glass provides cost-efficient and scalable manufacturing with moderate infrared transmission, chalcogenide glass delivers superior infrared transparency and nonlinearity at a higher production expense.

Optical Performance: Refractive Index and Dispersion

Ion-exchange glass for infrared optics typically exhibits a moderate refractive index around 1.5 to 1.7, offering low dispersion and good optical clarity in the near-infrared range (0.7 to 2.5 um), which is suitable for telecommunications and imaging applications. Chalcogenide glass shows a higher refractive index, often between 2.0 and 3.0, coupled with strong infrared transparency extending well into the mid- and far-infrared regions (2 to 12 um), making it ideal for advanced infrared sensing and thermal imaging. The higher dispersion in chalcogenide glasses requires careful dispersion management but enables greater design flexibility in broadband infrared optics compared to ion-exchange glasses.

Applications in Infrared Technologies

Ion-exchange glass offers enhanced mechanical strength and chemical durability, making it suitable for robust infrared optical components in telecommunications and sensor systems. Chalcogenide glass exhibits superior infrared transmission and nonlinear optical properties, ideal for mid- to far-infrared applications such as thermal imaging, environmental monitoring, and medical diagnostics. The choice between ion-exchange and chalcogenide glasses depends on specific infrared wavelength requirements and application environments, optimizing performance in fiber optics, lenses, and photonic devices.

Future Trends and Material Innovations

Ion-exchange glass demonstrates promising advancements in infrared optics due to its enhanced mechanical strength and improved thermal stability, enabling more durable and efficient IR components. Chalcogenide glass continues to evolve with innovations in composition, offering superior infrared transmission and nonlinear optical properties crucial for next-generation sensors and photonic devices. Future trends emphasize hybrid material development combining ion-exchange techniques with chalcogenide glass to optimize performance, expanding applications in telecommunications, environmental monitoring, and medical imaging.
