Closed-cell foam vs. open-cell foam for insulation panels - What is The Difference?

Closed-cell foam offers higher R-value per inch and superior moisture resistance, making it ideal for insulation panels in damp environments. Open-cell foam provides better sound absorption and allows vapor permeability, suitable for interior insulation where breathability is important.

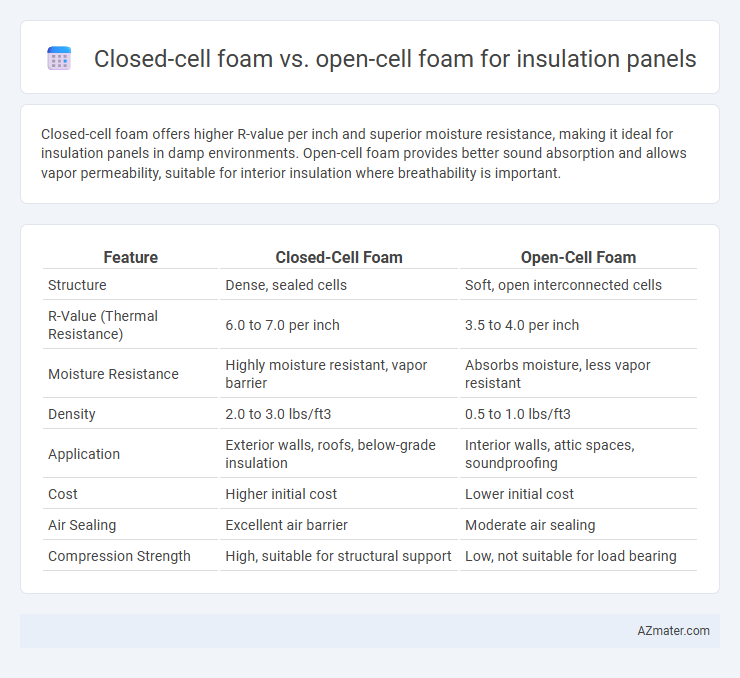

Table of Comparison

Introduction to Foam Insulation Panels

Closed-cell foam insulation panels provide superior thermal resistance with an R-value typically between 6 and 7 per inch, making them highly effective for energy efficiency and moisture control. Open-cell foam panels, characterized by a lower density and R-value around 3.5 to 4 per inch, offer excellent sound absorption and vapor permeability, suitable for interior applications. The choice between closed-cell and open-cell foam insulation panels depends on factors like climate, budget, and specific insulation needs, with closed-cell recommended for exterior use and open-cell preferred for interior spaces.

What is Closed-cell Foam Insulation?

Closed-cell foam insulation consists of tightly packed cells that are fully encapsulated and filled with gas, providing superior thermal resistance with an R-value typically between 6 and 7 per inch. This type of insulation is denser and more rigid than open-cell foam, offering enhanced moisture resistance and structural strength, making it ideal for use in insulation panels in areas prone to moisture or requiring high durability. Its closed structure also minimizes air infiltration, improving energy efficiency and reducing the risk of mold growth within the insulated space.

What is Open-cell Foam Insulation?

Open-cell foam insulation consists of tiny, interconnected cells that allow air to fill the spaces within the material, making it softer and more flexible than closed-cell foam. It provides excellent sound absorption and is highly effective in controlling humidity by allowing moisture vapor to pass through while maintaining thermal resistance with an R-value typically ranging from 3.5 to 3.6 per inch. Open-cell foam is commonly used in interior walls and ceilings where air sealing and soundproofing are priorities, but it is less suitable for areas exposed to water or high moisture due to its permeability.

Thermal Performance Comparison

Closed-cell foam insulation panels offer higher R-values per inch, typically around 6 to 7, providing superior thermal resistance compared to open-cell foam, which usually has an R-value of 3.5 to 4 per inch. The dense structure of closed-cell foam reduces air and moisture infiltration, enhancing energy efficiency and making it ideal for areas requiring vapor barriers. Open-cell foam's lower density allows for better sound absorption but compromises thermal performance due to its increased permeability and lower insulation value.

Moisture Resistance and Water Vapor Permeability

Closed-cell foam insulation panels offer superior moisture resistance due to their dense structure, effectively preventing water infiltration and reducing the risk of mold and mildew growth. In contrast, open-cell foam has a higher water vapor permeability, allowing moisture to pass through more easily, which can result in decreased insulation performance in humid environments. Choosing closed-cell foam is crucial for applications requiring robust moisture barriers and enhanced structural stability.

Structural Strength and Durability

Closed-cell foam insulation panels offer superior structural strength and durability due to their dense, rigid cell structure, providing enhanced resistance to moisture, compression, and impact. Open-cell foam panels, with their softer and more flexible texture, deliver less structural support and are more susceptible to water absorption and damage over time. Choosing closed-cell insulation is ideal for applications requiring robust load-bearing capacity and long-term performance in harsh environments.

Energy Efficiency: R-value Differences

Closed-cell foam insulation panels offer higher R-values, typically ranging from 6 to 7 per inch, compared to open-cell foam's R-values of about 3.5 to 4 per inch, resulting in superior thermal resistance and energy efficiency. The dense structure of closed-cell foam creates an effective air and moisture barrier, enhancing insulation performance and reducing energy loss. Open-cell foam's lower density and permeability allow more air infiltration, making it less effective for minimizing heating and cooling energy consumption.

Cost Analysis: Closed-cell vs Open-cell Foam

Closed-cell foam insulation panels typically cost between $1.00 to $1.50 per board foot, making them more expensive than open-cell foam, which ranges from $0.44 to $0.65 per board foot. The higher upfront cost of closed-cell foam is offset by its superior R-value of approximately 6 to 7 per inch compared to open-cell foam's R-value of 3.5 to 4, resulting in better long-term energy savings. Open-cell foam's lower density and material usage contribute to reduced installation expenses, making it a budget-friendly choice for large-scale projects with less stringent insulation requirements.

Environmental Impact and Sustainability

Closed-cell foam insulation panels offer higher R-values and superior moisture resistance but involve blowing agents with higher global warming potential, impacting their environmental footprint. Open-cell foam panels use fewer harmful chemicals and allow better breathability, which improves indoor air quality and reduces resource consumption during production. Choosing sustainable insulation depends on balancing energy efficiency benefits against the lifecycle environmental costs of foam type and manufacturing processes.

Best Applications: Choosing the Right Foam for Your Project

Closed-cell foam insulation panels offer higher R-values per inch and excellent moisture resistance, making them ideal for exterior walls, roofs, and below-grade applications where water exposure is significant. Open-cell foam provides superior sound absorption and flexibility, suitable for interior walls, attics, and areas requiring breathability and air sealing without moisture buildup. Selecting the right foam depends on project-specific needs such as thermal performance, moisture control, and budget constraints.
