azmater.com Optical fiber offers higher bandwidth and lower signal attenuation for long-distance data transmission compared to plastic optical fiber, which is more flexible and cost-effective but limited to short-range applications. Glass-based optical fibers support data rates exceeding 100 Gbps over kilometers, while plastic optical fibers typically handle up to 1 Gbps over meters.
Table of Comparison
| Feature | Optical Fiber (Glass) | Plastic Optical Fiber (POF) |
|---|---|---|
| Material | Silica Glass | Polymer (Plastic) |
| Data Transmission Speed | Up to 100 Gbps | Up to 1 Gbps |
| Signal Attenuation | Low (0.2 dB/km) | High (100 dB/km) |
| Transmission Distance | Up to 80 km | Up to 100 meters |
| Flexibility | Less flexible, fragile | Highly flexible, durable |
| Cost | Higher initial cost | Lower initial cost |
| Applications | Long-distance telecommunication, high-speed data networks | Short-distance data transfer, automotive, home networks |
Introduction to Optical Fiber and Plastic Optical Fiber
Optical fiber is a high-performance data transmission medium made from glass or silica, offering low signal attenuation and high bandwidth over long distances, commonly used in telecommunications and internet infrastructure. Plastic Optical Fiber (POF), made from polymer materials, provides a flexible, cost-effective alternative with easier installation and greater resistance to bending but suffers from higher signal attenuation and limited transmission distance. Both types serve specific applications where optical fiber is preferred for high-speed, long-range data transfer, while POF suits short-distance, consumer-level networking solutions.
Material Composition and Structure
Optical fiber typically consists of high-purity silica glass, providing low attenuation and high bandwidth for long-distance data transmission, while plastic optical fiber (POF) uses polymer materials such as polymethyl methacrylate (PMMA) or perfluorinated polymers, resulting in higher flexibility and easier installation but increased signal loss. The glass core of optical fiber allows for precise light propagation with minimal distortion, whereas POF's larger core diameter and polymer cladding cause more scattering and reduced transmission distance. Structural differences, including core diameter and refractive index profiles, influence their suitability for applications, with optical fibers favored for high-speed, long-range networks and POF ideal for short-range, cost-sensitive communication.
Transmission Speed and Bandwidth Comparison
Optical fiber offers significantly higher transmission speeds and broader bandwidth capabilities compared to plastic optical fiber (POF), supporting data rates up to 100 Gbps over long distances. Plastic optical fiber is generally limited to shorter distances and lower speeds, typically maxing out around 1 Gbps due to higher attenuation and modal dispersion. The silica core in optical fiber enables greater data transmission efficiency and capacity, making it ideal for high-performance networks and data centers.
Signal Attenuation and Losses
Optical fiber exhibits significantly lower signal attenuation compared to plastic optical fiber, with typical losses around 0.2 dB/km for silica-based fibers versus 1-10 dB/m for plastic variants, making it ideal for long-distance data transmission. The high purity of glass fibers minimizes scattering and absorption losses, whereas plastic fibers suffer from higher absorption and material imperfections leading to rapid signal degradation. Consequently, optical fibers maintain signal integrity over extended distances, while plastic optical fibers are limited to short-range applications due to their substantial signal attenuation and loss characteristics.
Distance and Range Capabilities
Optical fiber offers superior distance and range capabilities for data transmission, supporting lengths up to several kilometers with minimal signal loss due to its glass core and efficient light propagation. Plastic optical fiber (POF) typically supports shorter transmission distances, generally up to 100 meters, making it suitable for home or office networks rather than long-haul communication. The higher attenuation in POF limits its range compared to the lower attenuation and higher bandwidth capacity of glass optical fibers.
Installation Flexibility and Ease
Optical fiber offers superior installation flexibility due to its lightweight, thin structure and high tolerance for bending, enabling efficient routing in complex environments. Plastic optical fiber (POF) provides easier handling and installation in short-distance applications thanks to its larger core diameter and greater mechanical durability. Both fiber types facilitate straightforward installation, but optical fiber excels in scenarios requiring long-distance, high-bandwidth data transmission with minimal signal loss.
Cost and Affordability Analysis
Optical fiber offers higher data transmission speeds and longer reach but comes with higher installation and material costs compared to plastic optical fiber (POF), which is more affordable and easier to install for short-distance applications. POF typically suits consumer electronics and automotive networks where cost efficiency and flexibility are critical, while glass optical fiber is preferred in telecommunications and data centers due to its superior performance despite a higher price. Evaluating total cost of ownership, including maintenance and lifespan, is essential for selecting the most cost-effective solution for specific data transmission needs.
Durability and Environmental Resistance
Optical fiber demonstrates superior durability and environmental resistance compared to plastic optical fiber, with glass cores that better withstand temperature variations, moisture, and chemical exposure. Plastic optical fiber, while more flexible and cost-effective, is prone to higher attenuation and degradation when exposed to UV light and harsh environmental conditions. For long-term data transmission applications in challenging environments, optical fiber remains the preferred choice due to its enhanced longevity and reliability.
Common Applications and Use Cases
Optical fiber is widely used in telecommunications, internet infrastructure, and long-distance data transmission due to its high bandwidth and low signal attenuation. Plastic optical fiber, favored in automotive networks, home networking, and short-range data links, offers flexibility and ease of installation at a lower cost despite higher attenuation. Both materials serve critical roles, with glass fiber dominating high-speed, long-distance applications and plastic fiber excelling in cost-sensitive, short-distance environments.
Future Trends in Fiber Optic Technology
Optical fiber technology is rapidly evolving with advancements in single-mode and multi-mode glass fibers offering higher bandwidth and longer transmission distances compared to plastic optical fibers (POF), which are favored for short-distance, flexible, and cost-effective applications. Future trends include the development of bend-insensitive fibers, integration of photonic sensors, and the incorporation of quantum communication techniques, which primarily leverage glass optical fibers due to their superior signal integrity and lower attenuation rates. Innovations in POF aim to enhance bandwidth capabilities and durability, focusing on automotive and home networking markets where ease of installation and cost remain critical factors.

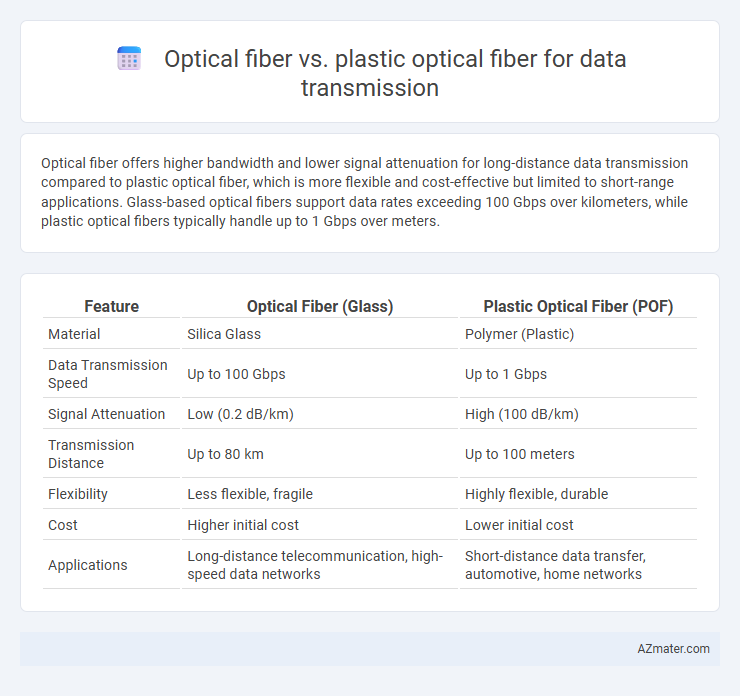

Infographic: Optical fiber vs Plastic optical fiber for Data transmission
