Underwater concrete vs. polymer concrete for underwater pipeline anchors - What is The Difference?

Underwater concrete offers excellent durability and high compressive strength for underwater pipeline anchors, ensuring long-term stability in marine environments. Polymer concrete provides superior chemical resistance and rapid curing time, making it ideal for corrosive underwater conditions and minimizing installation delays.

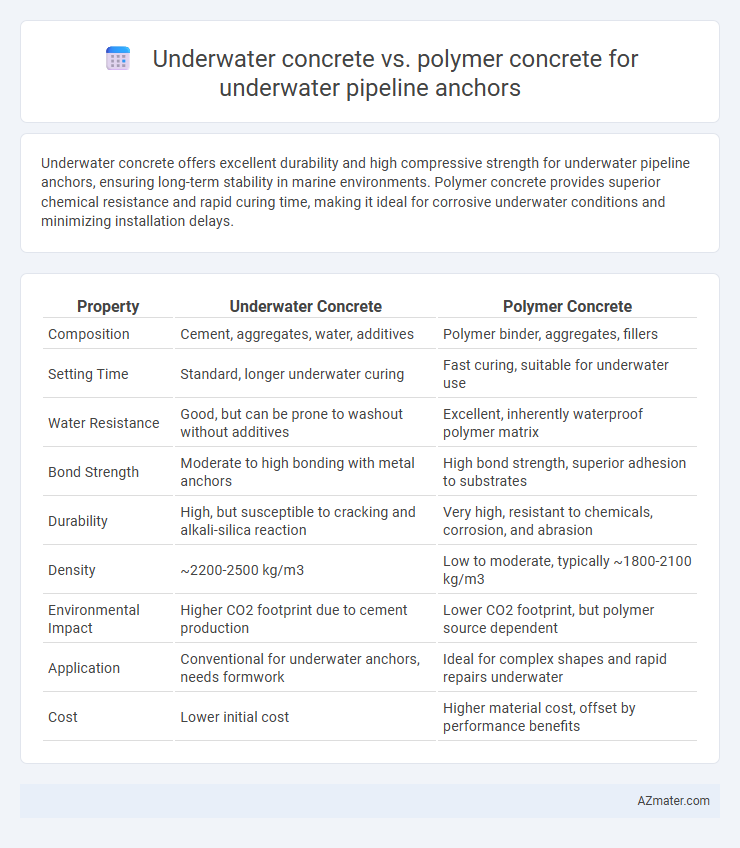

Table of Comparison

Introduction to Underwater and Polymer Concrete

Underwater concrete is specially formulated to cure and maintain strength in submerged conditions, utilizing anti-washout admixtures and controlled mix designs to prevent material loss during placement. Polymer concrete incorporates synthetic resins as binders, providing enhanced chemical resistance, rapid curing, and superior adhesion crucial for underwater pipeline anchor systems exposed to harsh marine environments. Both materials ensure structural integrity, but polymer concrete offers improved durability against marine corrosion and mechanical stress.

Importance of Anchoring Underwater Pipelines

Effective anchoring of underwater pipelines is crucial to prevent displacement caused by ocean currents, buoyancy, and seismic activity, thereby ensuring structural integrity and operational safety. Underwater concrete provides excellent compressive strength and durability in submerged conditions, while polymer concrete offers superior chemical resistance and faster curing times, essential for minimizing installation delays. Selecting the appropriate material based on environmental conditions and load requirements optimizes anchor performance and extends pipeline lifespan.

Material Composition: Underwater Concrete vs Polymer Concrete

Underwater concrete typically consists of Portland cement, fine aggregates, coarse aggregates, and admixtures designed to prevent washout and maintain strength in aquatic environments, whereas polymer concrete incorporates a polymer binder such as epoxy or polyester resin in place of cement, combined with aggregates for enhanced chemical resistance and durability. The cementitious matrix in underwater concrete hydrates underwater to develop strength, while the polymer matrix in polymer concrete cures through chemical polymerization, resulting in higher tensile strength and better adhesion to pipeline surfaces. Material composition differences influence performance characteristics: underwater concrete excels in compressive strength and cost-effectiveness, whereas polymer concrete offers superior resistance to water permeability, chemical attack, and fatigue under cyclic loading.

Setting and Curing Mechanisms in Submerged Environments

Underwater concrete relies on anti-washout admixtures to maintain cohesion during initial setting, forming a robust hydration-based matrix even under continuous water exposure, while polymer concrete utilizes polymer resins that cure through chemical reactions independent of water presence, ensuring rapid strength gain. The curing mechanism of underwater concrete is slower, governed by cement hydration kinetics influenced by temperature and water chemistry, whereas polymer concrete exhibits accelerated curing due to polymerization processes that are less sensitive to environmental conditions. These differences make polymer concrete advantageous for underwater pipeline anchors requiring quick stabilization, while traditional underwater concrete provides cost-effective, long-term durability through its hydraulic setting properties.

Mechanical Strength and Durability Comparison

Underwater concrete exhibits high compressive strength ranging from 30 to 50 MPa, ideal for resisting mechanical loads on underwater pipeline anchors, while polymer concrete demonstrates superior tensile strength and enhanced resistance to chemical degradation, making it more durable in aggressive marine environments. Polymer concrete's polymer matrix minimizes water absorption and improves bond strength with reinforcement, resulting in prolonged durability compared to conventional underwater concrete prone to chloride-induced corrosion and freeze-thaw cycles. Mechanical strength of polymer concrete often exceeds 70 MPa in compression and offers better crack resistance, positioning it as a favorable choice for long-term underwater pipeline anchor applications requiring resilience against mechanical stress and environmental deterioration.

Resistance to Chemical Corrosion and Biological Fouling

Underwater concrete exhibits strong resistance to chemical corrosion due to its dense matrix and ability to incorporate corrosion inhibitors, making it suitable for pipelines in aggressive marine environments. Polymer concrete outperforms traditional underwater concrete in resisting biological fouling because its polyester or epoxy resin binders prevent microbial growth and biofilm adhesion on anchor surfaces. The enhanced durability of polymer concrete against both chemical and biological degradation ensures longer service life for underwater pipeline anchors in corrosive and bioactive settings.

Installation Process and Workability Underwater

Underwater concrete offers straightforward placement through tremie pipes or pumps, ensuring dense, cohesive material ideal for underwater pipeline anchors due to its self-compacting properties and resistance to washout. Polymer concrete enhances workability underwater with rapid curing, minimal shrinkage, and superior adhesion to metal surfaces, allowing quicker installation and early load-bearing capacity. The choice between underwater concrete and polymer concrete hinges on project-specific requirements such as curing time, environmental conditions, and mechanical strength for pipeline anchor stability.

Environmental Impact and Sustainability Factors

Underwater concrete, typically composed of cement, aggregates, and admixtures, can release alkaline substances and heavy metals into aquatic environments, potentially harming marine ecosystems, whereas polymer concrete uses resin binders that are less prone to leaching but may involve non-biodegradable petrochemical components. The sustainability of underwater concrete is challenged by high carbon emissions during cement production, while polymer concrete offers reduced carbon footprint and longer durability, minimizing maintenance and replacement needs. Both materials require careful lifecycle assessment, but polymer concrete's lower environmental toxicity and enhanced durability often make it the more sustainable choice for underwater pipeline anchors.

Cost Analysis and Lifecycle Considerations

Underwater concrete typically offers lower initial costs compared to polymer concrete, making it more cost-effective for large-scale underwater pipeline anchors. Polymer concrete, while having higher upfront expenses due to specialized materials and application methods, provides superior chemical resistance and durability, potentially reducing maintenance and repair costs over the pipeline's lifecycle. Lifecycle considerations favor polymer concrete in corrosive environments where extended service life and reduced downtime offset the initial investment, whereas underwater concrete remains economical in less aggressive conditions with predictable maintenance schedules.

Recommendations for Underwater Pipeline Anchor Selection

Polymer concrete outperforms traditional underwater concrete for pipeline anchors due to its superior chemical resistance, faster curing time, and enhanced durability in submerged environments. Selecting polymer concrete ensures better adhesion and reduced maintenance costs for underwater pipeline anchors exposed to aggressive marine conditions. For optimal performance, engineers should prioritize polymer concrete in environments with high salinity, mechanical stress, or potential chemical exposure.
