Ultra-high-performance concrete vs. reinforced concrete for beams - What is The Difference?

Ultra-high-performance concrete (UHPC) beams exhibit significantly higher compressive strength, durability, and reduced permeability compared to traditional reinforced concrete beams, enabling slimmer designs and longer spans. The superior microstructure of UHPC enhances load-bearing capacity and resistance to environmental degradation, making it ideal for critical infrastructure applications.

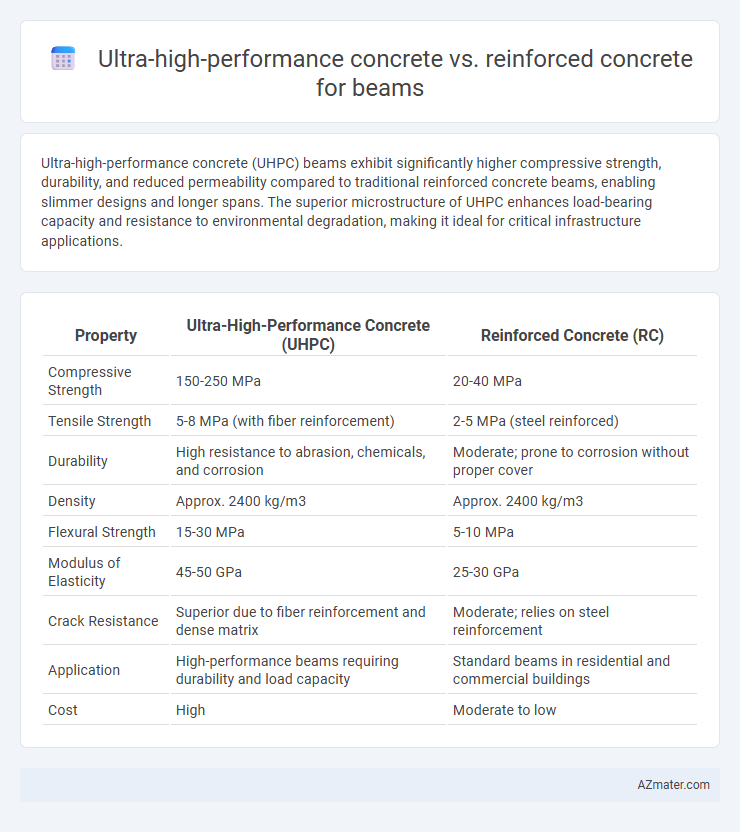

Table of Comparison

Introduction to Ultra-High-Performance Concrete (UHPC) and Reinforced Concrete

Ultra-High-Performance Concrete (UHPC) is a composite material characterized by high compressive strength exceeding 150 MPa and enhanced durability due to optimized particle packing and steel fiber reinforcement. In contrast, Reinforced Concrete (RC) combines conventional concrete with steel rebars to resist tensile forces, typically exhibiting compressive strengths between 20 to 50 MPa. UHPC provides superior mechanical properties, reduced permeability, and improved fracture toughness, making it ideal for slender beam designs with longer spans and higher load capacities compared to traditional RC beams.

Material Composition: UHPC vs Reinforced Concrete

Ultra-high-performance concrete (UHPC) is characterized by a dense matrix of fine powders, including silica fume, quartz flour, and optimized fiber reinforcement such as steel or synthetic fibers, resulting in high compressive strengths typically exceeding 150 MPa. Reinforced concrete combines traditional Portland cement, coarse and fine aggregates, water, and embedded steel rebars, offering compressive strengths usually ranging from 20 to 50 MPa depending on the mix design. The enhanced particle packing and fiber distribution in UHPC provide superior durability, tensile strength, and flexural capacity compared to the heterogeneous composition of conventional reinforced concrete beams.

Mechanical Properties Comparison

Ultra-high-performance concrete (UHPC) offers significantly higher compressive strength, often exceeding 150 MPa, compared to traditional reinforced concrete (RC), which typically ranges between 20 to 40 MPa. UHPC exhibits superior tensile strength and enhanced ductility due to its dense microstructure and fiber reinforcement, enabling reduced crack propagation and improved durability in beams. Reinforced concrete relies primarily on steel reinforcement for tensile capacity, while UHPC's intrinsic mechanical properties reduce the need for extensive steel, resulting in lighter, stronger beams with increased load-bearing capacity and longevity.

Structural Performance in Beam Applications

Ultra-high-performance concrete (UHPC) exhibits superior compressive strength exceeding 150 MPa and enhanced durability compared to conventional reinforced concrete (RC), making it ideal for beam applications requiring high load-bearing capacity. The dense microstructure of UHPC significantly reduces micro-cracking and improves fatigue resistance, resulting in beams with greater structural integrity and longer service life. Reinforced concrete beams, while cost-effective and well-understood, often require larger cross-sections to achieve comparable performance, leading to increased material use and weight.

Durability and Longevity

Ultra-high-performance concrete (UHPC) exhibits superior durability compared to traditional reinforced concrete (RC) due to its dense microstructure, reducing permeability and enhancing resistance to chloride intrusion, freeze-thaw cycles, and chemical attacks. UHPC beams demonstrate significantly extended service life with lower maintenance requirements, owing to higher compressive strength often exceeding 150 MPa and improved toughness. Reinforced concrete beams, while cost-effective, are more susceptible to corrosion of steel reinforcement and degradation over time, limiting their longevity in aggressive environments.

Flexural Strength and Load-Bearing Capacity

Ultra-high-performance concrete (UHPC) exhibits significantly higher flexural strength than traditional reinforced concrete (RC), reaching values up to 30 MPa compared to RC's typical 5-10 MPa. The enhanced load-bearing capacity of UHPC beams allows for slimmer cross-sections and longer spans while maintaining structural integrity. UHPC's dense microstructure and fiber reinforcement contribute to superior durability and crack resistance under flexural loads, outperforming conventional RC in demanding structural applications.

Cost Implications and Life Cycle Analysis

Ultra-high-performance concrete (UHPC) beams demand higher initial costs due to advanced materials and fabrication techniques but offer extended durability, reduced maintenance, and enhanced load capacity compared to conventional reinforced concrete (RC) beams. Life cycle analysis reveals UHPC beams deliver lower total cost of ownership by minimizing repair needs and extending service life beyond 50 years, whereas RC beams typically incur frequent maintenance expenses within a 30-40 year lifespan. These factors position UHPC as a cost-effective solution in infrastructure projects prioritizing long-term performance and sustainability.

Construction Techniques and Challenges

Ultra-high-performance concrete (UHPC) beams require specialized formwork and meticulous curing processes due to their dense microstructure and rapid strength gain, contrasting with the more conventional curing cycles of reinforced concrete (RC). Construction challenges with UHPC include higher material costs and the necessity for precise mixing and placement techniques to avoid segregation, while RC beams benefit from established reinforcement placement and concrete pouring methods but face limitations in crack control and durability. The advanced mechanical properties of UHPC allow for thinner, lighter beams, reducing formwork loads but demanding skilled labor and stringent quality control to realize performance benefits over traditional RC beams.

Sustainability and Environmental Impact

Ultra-high-performance concrete (UHPC) significantly reduces environmental impact compared to traditional reinforced concrete beams by requiring less material volume due to its superior strength and durability, leading to lower carbon emissions during production. UHPC's enhanced durability extends the lifespan of beams, decreasing the frequency of repairs and replacements, which further minimizes resource consumption and waste generation. Reinforced concrete typically relies on higher cement content and steel reinforcement, both associated with substantial carbon footprints and resource extraction, making UHPC a more sustainable choice for long-term structural applications.

Case Studies: Real-World Applications in Beams

Case studies comparing ultra-high-performance concrete (UHPC) and reinforced concrete (RC) in beam applications demonstrate UHPC's superior load-bearing capacity and durability, enabling slimmer, lighter beam designs in bridges and high-rise buildings. Projects like the Sherbrooke footbridge in Canada reveal UHPC beams' enhanced resistance to cracking and improved service life compared to traditional RC beams under similar loading conditions. These real-world applications highlight UHPC's potential for reducing maintenance costs and extending infrastructural lifespan while maintaining structural integrity in complex beam configurations.
