azmater.com Ultra-high-performance concrete (UHPC) offers superior durability, tensile strength, and a sleek finish compared to traditional precast concrete, making it ideal for architectural panels requiring intricate designs and long-term performance. Precast concrete panels provide cost-effective, fast installation with consistent quality but lack the enhanced mechanical properties and aesthetic versatility of UHPC.
Table of Comparison
| Feature | Ultra-High-Performance Concrete (UHPC) | Precast Concrete |
|---|---|---|
| Strength | Compressive strength: 150-200 MPa | Compressive strength: 30-50 MPa |
| Durability | Exceptional resistance to abrasion, chemical attack, and freeze-thaw cycles | Good durability, but lower resistance compared to UHPC |
| Density | Approx. 2400 kg/m3 | Approx. 2200-2400 kg/m3 |
| Thickness | Thin sections possible (10-25 mm) | Thicker panels (50+ mm) typical |
| Weight | Lower weight due to thin sections | Heavier panels owing to greater thickness |
| Flexural Strength | High flexural strength (10-25 MPa) | Moderate flexural strength (3-5 MPa) |
| Appearance | Smooth, sleek finishes with fine detail | Texture and finish dependent on mold and curing |
| Cost | Higher material and production cost | Generally lower cost, mass production benefits |
| Application | High-end architectural panels requiring performance and aesthetics | Standard architectural panels, versatile for many uses |
Introduction to Architectural Panels
Architectural panels utilize ultra-high-performance concrete (UHPC) for enhanced durability, superior strength, and finer surface detail compared to traditional precast concrete. UHPC's dense microstructure offers improved resistance to weathering, corrosion, and impact, making it ideal for intricate design aesthetics and long-lasting facade solutions. Precast concrete panels, while cost-effective and faster to produce, generally lack the material finesse and performance benefits that UHPC provides in high-end architectural applications.
Overview of Ultra-High-Performance Concrete (UHPC)
Ultra-High-Performance Concrete (UHPC) is a superior construction material characterized by its exceptional strength, durability, and ductility, making it ideal for architectural panels requiring thin, lightweight, and intricate designs. UHPC typically achieves compressive strengths exceeding 150 MPa and incorporates fine powders, silica fume, and high-range water reducers to enhance its microstructure and longevity. Compared to precast concrete, UHPC offers enhanced resistance to environmental degradation and allows for more precise, aesthetically versatile architectural elements with longer service life.
Overview of Precast Concrete
Precast concrete consists of concrete elements cast and cured in a controlled factory environment before being transported to the construction site, ensuring consistent quality and reduced onsite labor. It offers excellent versatility in shapes and finishes, making it ideal for architectural panels with precise design requirements. Compared to ultra-high-performance concrete, precast concrete generally provides faster installation and cost-effective production for large-scale projects while maintaining durability and aesthetic appeal.
Material Composition and Properties Comparison
Ultra-high-performance concrete (UHPC) features a dense microstructure composed of fine powders, silica fume, quartz sand, and steel fibers, offering exceptional compressive strength above 150 MPa and superior durability compared to traditional precast concrete. Precast concrete typically uses conventional cement, coarse aggregates, and limited reinforcement, resulting in compressive strengths ranging from 30 to 50 MPa and moderate durability for architectural panels. UHPC's low porosity and enhanced mechanical properties enable thinner, lighter panels with improved resistance to environmental stressors, whereas precast concrete panels prioritize ease of production and cost-efficiency but may require larger thickness for equivalent structural performance.
Design Flexibility and Aesthetic Options
Ultra-high-performance concrete (UHPC) offers superior design flexibility for architectural panels due to its high strength-to-weight ratio, allowing for thinner, more intricate shapes and complex geometries that are not feasible with traditional precast concrete. UHPC's enhanced durability and ability to incorporate a wide range of pigments, aggregates, and surface textures provide architects with extensive aesthetic options, including smooth finishes and customized patterns with fine detail. In contrast, precast concrete panels, while robust and cost-effective, have limitations in design complexity and surface customization, often resulting in bulkier elements with more standard finishes.
Structural Performance and Durability
Ultra-high-performance concrete (UHPC) offers superior structural performance compared to precast concrete, featuring compressive strengths above 150 MPa and enhanced tensile ductility, which allow for thinner, lighter architectural panels with complex geometries. UHPC's dense microstructure significantly improves durability by providing exceptional resistance to chloride penetration, freeze-thaw cycles, and abrasion, extending the service life of panels in harsh environmental conditions. Precast concrete, while cost-effective and versatile, typically exhibits lower compressive strength (20-50 MPa) and porosity, making it more susceptible to cracking and degradation over time.
Installation Methods and Speed
Ultra-high-performance concrete (UHPC) offers a significant advantage in installation speed for architectural panels due to its superior strength and reduced thickness, allowing for lighter, easier handling and faster curing times compared to traditional precast concrete. Precast concrete requires more extensive formwork and longer curing periods on-site, which can delay installation and increase labor costs. The advanced properties of UHPC enable streamlined assembly with fewer anchoring points and minimal on-site adjustments, optimizing project timelines in facade and cladding applications.
Cost Analysis and Lifecycle Considerations
Ultra-high-performance concrete (UHPC) offers superior durability and strength compared to precast concrete, resulting in lower maintenance costs and extended service life for architectural panels. Despite higher initial material and production costs, UHPC's enhanced resistance to environmental degradation reduces lifecycle expenditures significantly. Precast concrete panels usually involve lower upfront costs but may incur higher long-term expenses due to repairs and shorter replacement cycles.
Sustainability and Environmental Impact
Ultra-high-performance concrete (UHPC) offers superior durability and longevity compared to precast concrete, reducing the need for frequent replacements and minimizing long-term environmental impact. The lower water-to-cement ratio and dense microstructure of UHPC contribute to enhanced resistance against weathering, corrosion, and chemical attack, leading to decreased carbon footprint over the lifecycle of architectural panels. Precast concrete, while energy-intensive in production, allows for controlled factory conditions that optimize material use and reduce waste, but often involves higher embodied carbon compared to UHPC alternatives designed with supplementary cementitious materials and recycled aggregates.
Applications and Case Studies
Ultra-high-performance concrete (UHPC) offers superior strength, durability, and design flexibility, making it ideal for thin, lightweight architectural panels with complex shapes and high-performance requirements, as demonstrated in the Louvre Abu Dhabi facade project. Precast concrete panels are widely used in commercial buildings and residential developments due to their cost-effectiveness, ease of production, and rapid installation, exemplified by the One Central Park towers in Sydney using precast decorative panels. Case studies highlight UHPC for innovative, sculptural designs requiring longevity and minimal maintenance, while precast concrete remains preferred for large-scale, repetitive panel applications prioritizing economy and speed.

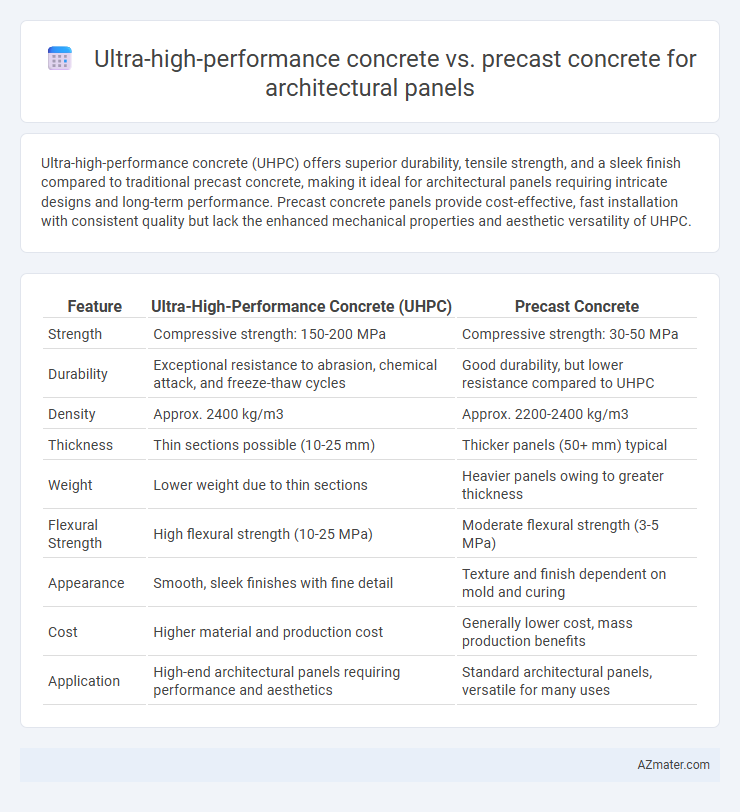

Infographic: Ultra-high-performance concrete vs Precast concrete for Architectural panel
