azmater.com Ultra-high-performance concrete (UHPC) offers superior strength, durability, and load-bearing capacity for sidewalks, making it ideal for high-traffic urban areas. Permeable concrete enhances stormwater management by allowing water infiltration, reducing runoff and improving environmental sustainability in pedestrian pathways.
Table of Comparison
| Property | Ultra-High-Performance Concrete (UHPC) | Permeable Concrete |
|---|---|---|
| Compressive Strength | 150-200 MPa (High strength for durability) | 15-35 MPa (Moderate strength, suitable for light loads) |
| Permeability | Very Low (Impermeable) | High (Allows water infiltration) |
| Durability | Excellent (Resistant to abrasion, freeze-thaw, chemicals) | Good (Resistant to water damage but lower abrasion resistance) |
| Applications | High-traffic sidewalks, heavy load areas | Sidewalks requiring stormwater management |
| Cost | High (Specialized materials and processing) | Moderate (Less material intensity) |
| Maintenance | Low (Minimal repairs over lifespan) | Moderate (Periodic cleaning to prevent clogging) |
| Environmental Impact | Higher (Due to cement and additives) | Lower (Improves groundwater recharge) |
Introduction: Ultra-High-Performance Concrete vs Permeable Concrete
Ultra-high-performance concrete (UHPC) offers exceptional strength, durability, and resistance to environmental stressors, making it ideal for long-lasting sidewalks with minimal maintenance. Permeable concrete enhances water drainage by allowing runoff to pass through its porous structure, reducing urban flooding and improving stormwater management. Both materials serve distinct purposes: UHPC focuses on structural longevity while permeable concrete prioritizes environmental sustainability in sidewalk applications.
Key Material Properties and Composition
Ultra-high-performance concrete (UHPC) features a dense microstructure with ultra-fine powders, high cement content, and steel fibers, providing exceptional compressive strength above 150 MPa and superior durability, making it ideal for heavy-load sidewalks. Permeable concrete incorporates coarse aggregates and limited fines, with void content typically between 15-25%, enabling water infiltration to reduce runoff but offering lower compressive strength around 20-30 MPa. The significant difference in porosity, fiber reinforcement, and particle packing between UHPC and permeable concrete governs their mechanical properties and suitability for sidewalk applications.
Structural Strength and Durability
Ultra-high-performance concrete (UHPC) offers exceptional structural strength with compressive strengths exceeding 150 MPa, making it ideal for high-load sidewalk applications requiring long-term durability and resistance to abrasion, freeze-thaw cycles, and chemical attack. Permeable concrete, designed for effective water drainage, typically exhibits lower compressive strength around 20-40 MPa, which limits its use to low-traffic pedestrian sidewalks but enhances environmental performance by reducing stormwater runoff. The choice between UHPC and permeable concrete balances the need for superior mechanical durability against sustainable water management in urban pedestrian infrastructure.
Permeability and Water Management
Permeable concrete excels in water management by allowing rainwater to infiltrate through its porous structure, reducing runoff and promoting groundwater recharge, which is crucial for sustainable sidewalk design. Ultra-high-performance concrete (UHPC), while exceptionally strong and durable, has a dense matrix that significantly limits water permeability, making it less effective for managing stormwater on sidewalks. Selecting permeable concrete enhances urban drainage systems and mitigates flooding risks, whereas UHPC's impermeability prioritizes structural integrity over environmental water management benefits.
Installation Processes and Timeframes
Ultra-high-performance concrete (UHPC) requires meticulous mixing and curing processes, often involving precise temperature and humidity controls, which extend installation time but result in an exceptionally durable sidewalk surface. Permeable concrete installation is typically faster, involving standard mixing with additives to increase porosity and requires less stringent curing conditions, allowing quicker pedestrian access. UHPC's longer curing period, usually 7 to 14 days, contrasts with permeable concrete's faster curing time of 24 to 48 hours, impacting project timelines significantly.
Cost Comparison: Initial and Lifecycle Expenses
Ultra-high-performance concrete (UHPC) has a higher initial cost ranging from $350 to $500 per cubic yard due to its advanced materials and labor-intensive placement, compared to permeable concrete which typically costs between $150 and $250 per cubic yard. Lifecycle expenses favor UHPC as its superior durability and reduced maintenance needs can lower total costs by up to 30% over 30 years, whereas permeable concrete requires more frequent repairs and cleaning to maintain permeability, increasing long-term expenses. Choosing between them depends on balancing upfront investment against projected maintenance savings and environmental benefits for sidewalks.
Maintenance Requirements and Longevity
Ultra-high-performance concrete (UHPC) offers superior durability and requires minimal maintenance due to its dense microstructure and high compressive strength, typically exceeding 150 MPa, which significantly extends sidewalk lifespan up to 50 years or more. Permeable concrete, designed to allow water infiltration, reduces runoff and promotes groundwater recharge but necessitates regular cleaning to prevent clogging, with a typical lifespan of around 20 years under moderate traffic conditions. Maintenance requirements for permeable concrete include periodic vacuum sweeping or pressure washing, whereas UHPC sidewalks benefit from their resistance to freeze-thaw cycles and chemical attack, minimizing repair costs over time.
Environmental Impact and Sustainability
Ultra-high-performance concrete (UHPC) offers superior durability and reduced maintenance, significantly extending sidewalk lifespan while minimizing resource consumption and carbon footprint over time. Permeable concrete enhances stormwater management by allowing water infiltration, reducing runoff and urban heat island effects, contributing to improved groundwater recharge and ecosystem health. Combining UHPC's longevity with permeable concrete's environmental benefits supports sustainable urban infrastructure with lower environmental impact and resilient performance.
Best Use Cases for Sidewalk Applications
Ultra-high-performance concrete (UHPC) offers exceptional durability and strength, making it ideal for sidewalks in high-traffic urban areas and harsh weather conditions where longevity and minimal maintenance are critical. Permeable concrete excels in applications requiring effective stormwater management, allowing water infiltration to reduce runoff and prevent flooding in residential neighborhoods and environmentally sensitive zones. Selecting between UHPC and permeable concrete depends on prioritizing either structural resilience or sustainable drainage solutions for specific sidewalk projects.
Summary and Recommendations for Sidewalk Projects
Ultra-high-performance concrete (UHPC) offers superior strength, durability, and longevity, making it ideal for high-traffic sidewalks requiring minimal maintenance and enhanced resistance to environmental stressors. Permeable concrete promotes stormwater management by allowing water infiltration, reducing runoff and improving urban drainage but may have lower compressive strength compared to UHPC. For sidewalk projects prioritizing structural integrity and durability in heavy-use areas, UHPC is recommended; for environmentally sensitive or flood-prone sites needing effective water management, permeable concrete is the preferred choice.

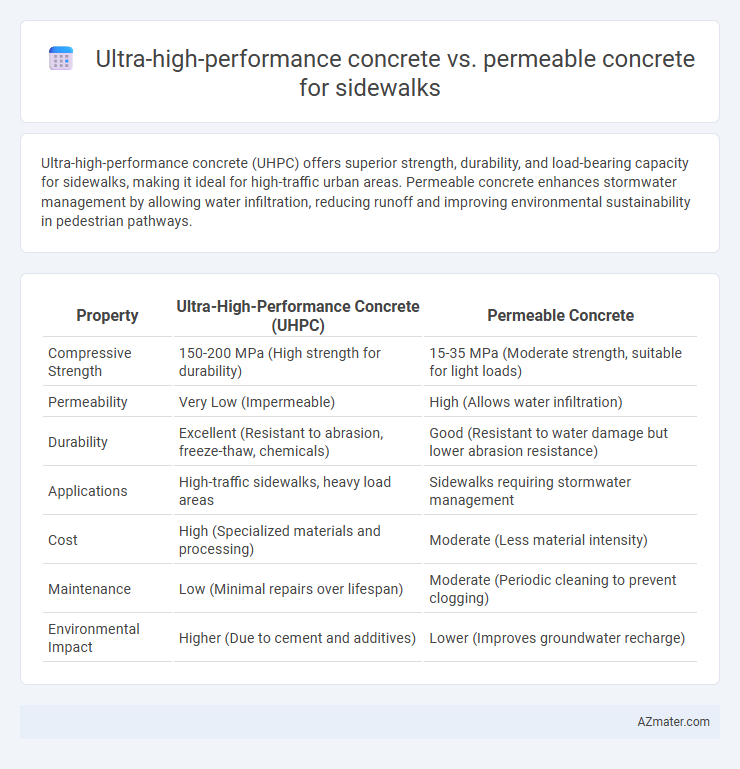

Infographic: Ultra-high-performance concrete vs Permeable concrete for Sidewalk
