azmater.com Ultra-high-performance concrete (UHPC) offers superior compressive strength exceeding 150 MPa and enhanced durability compared to normal strength concrete (NSC), which typically ranges from 20 to 40 MPa. UHPC significantly improves bridge longevity by resisting corrosion, reducing maintenance costs, and enabling slender, lightweight structural elements.
Table of Comparison
| Property | Ultra-High-Performance Concrete (UHPC) | Normal Strength Concrete (NSC) |
|---|---|---|
| Compressive Strength | 150-250 MPa | 20-40 MPa |
| Tensile Strength | 20-30 MPa | 2-5 MPa |
| Durability | Extremely high, resistant to corrosion and chemicals | Moderate, susceptible to chloride and sulfate attack |
| Flexural Strength | 30-50 MPa | 3-7 MPa |
| Density | 2400-2500 kg/m3 | 2200-2400 kg/m3 |
| Workability | Self-consolidating, requires precise mixing | Good, easier to handle |
| Cost | High initial cost, cost-effective over life cycle | Low initial cost, higher maintenance cost |
| Service Life | 75-100+ years | 40-60 years |
| Water Permeability | Ultra-low, enhances durability | Moderate, risk of water ingress |
| Use in Bridge Construction | Ideal for long-span, high-load, and high-durability applications | Suitable for standard load bridges with regular maintenance |
Introduction to Bridge Construction Materials
Ultra-high-performance concrete (UHPC) exhibits significantly higher compressive strength, durability, and resistance to environmental degradation compared to normal strength concrete (NSC), making it ideal for advanced bridge construction. The use of UHPC enables slimmer, lighter bridge components, reducing maintenance costs and extending service life by minimizing crack formation and corrosion of reinforcement. In contrast, NSC remains widely adopted for conventional bridges due to its cost-effectiveness and established performance under standard loading conditions.
Defining Ultra-High-Performance Concrete (UHPC)
Ultra-High-Performance Concrete (UHPC) is a cementitious material characterized by superior compressive strength exceeding 150 MPa and enhanced durability compared to normal strength concrete, which typically ranges from 20 to 40 MPa. UHPC incorporates fine powders, fibers, and low water-to-cement ratios to achieve dense microstructures, resulting in exceptional tensile strength, ductility, and resistance to environmental degradation. These properties make UHPC particularly advantageous for bridge construction, enabling longer spans, thinner sections, and extended service life under high load and harsh exposure conditions.
Characteristics of Normal Strength Concrete
Normal strength concrete (NSC) typically has a compressive strength ranging from 20 to 40 MPa, making it suitable for a wide range of conventional bridge construction applications. It exhibits moderate durability, workability, and cost-effectiveness but may require thicker sections and increased reinforcement to achieve desired structural performance. NSC's susceptibility to cracking and permeability issues can limit its lifespan compared to ultra-high-performance concrete (UHPC) used in more demanding bridge environments.
Mechanical Properties: UHPC vs Normal Concrete
Ultra-high-performance concrete (UHPC) exhibits significantly higher compressive strengths, often exceeding 150 MPa, compared to normal strength concrete, which typically ranges between 20 to 40 MPa. UHPC demonstrates enhanced tensile strength and ductility due to its dense microstructure and fiber reinforcement, resulting in superior durability and resistance to cracking under dynamic loads. These mechanical properties make UHPC an ideal choice for bridge construction where load-bearing capacity, longevity, and reduced maintenance are critical.
Durability and Longevity Comparison
Ultra-high-performance concrete (UHPC) offers superior durability compared to normal strength concrete, featuring enhanced resistance to chloride penetration, freeze-thaw cycles, and abrasion, which significantly reduces maintenance needs in bridge construction. UHPC's dense microstructure and high tensile strength contribute to extended service life, often exceeding 100 years, while normal strength concrete typically requires earlier repairs and has a shorter lifespan of around 50 years under similar environmental conditions. The improved longevity of UHPC structures results in lower lifecycle costs and higher resilience against structural deterioration.
Structural Performance in Bridge Applications
Ultra-high-performance concrete (UHPC) exhibits superior structural performance compared to normal strength concrete in bridge construction due to its enhanced compressive strength often exceeding 150 MPa and exceptional durability under extreme load conditions. UHPC's dense microstructure results in significantly improved resistance to cracking, corrosion, and fatigue, which extends the service life of bridge components and reduces maintenance costs. The material's high tensile strength and energy absorption capacity enable thinner, lighter bridge elements with increased load-bearing capacity and improved seismic performance.
Cost Implications and Life-Cycle Analysis
Ultra-high-performance concrete (UHPC) significantly increases initial construction costs for bridge projects compared to normal strength concrete due to specialized materials and complex mixing processes. Despite higher upfront expenses, UHPC extends bridge service life by up to 100 years, reduces maintenance frequency, and improves durability under extreme loading and environmental conditions, resulting in lower long-term life-cycle costs. Life-cycle analysis reveals that UHPC bridges achieve better cost-efficiency through reduced repair needs and enhanced structural performance, justifying the premium investment for critical infrastructure.
Installation and Construction Techniques
Ultra-high-performance concrete (UHPC) enables faster bridge installation due to its superior flowability and rapid strength gain, allowing for quicker formwork removal and early load application. Unlike normal strength concrete, UHPC requires specialized mixing and curing techniques, such as controlled temperature and humidity conditions, to achieve optimal microstructure and durability. The enhanced tensile strength and ductility of UHPC reduce the need for conventional reinforcement, simplifying construction processes and improving long-term performance.
Sustainability and Environmental Impact
Ultra-high-performance concrete (UHPC) significantly reduces environmental impact in bridge construction by offering superior strength and durability, which allows for thinner sections and less material usage compared to normal strength concrete (NSC). UHPC's enhanced longevity lowers lifecycle carbon emissions through reduced maintenance and repair frequency, promoting sustainability by minimizing resource consumption and waste. Moreover, UHPC's dense microstructure improves resistance to environmental degradation, decreasing the need for early replacement and further conserving natural resources.
Case Studies: Bridge Projects Using UHPC and Normal Concrete
Case studies of bridge projects reveal that Ultra-High-Performance Concrete (UHPC) offers superior durability, reduced maintenance, and enhanced load-carrying capacity compared to Normal Strength Concrete (NSC). The replacement of NSC with UHPC in structures like the Sherbrooke Bridge in Canada has demonstrated extended service life and improved crack resistance under heavy traffic conditions. Projects employing UHPC also benefit from slimmer structural elements and accelerated construction timelines, contributing to cost savings despite higher material expenses.

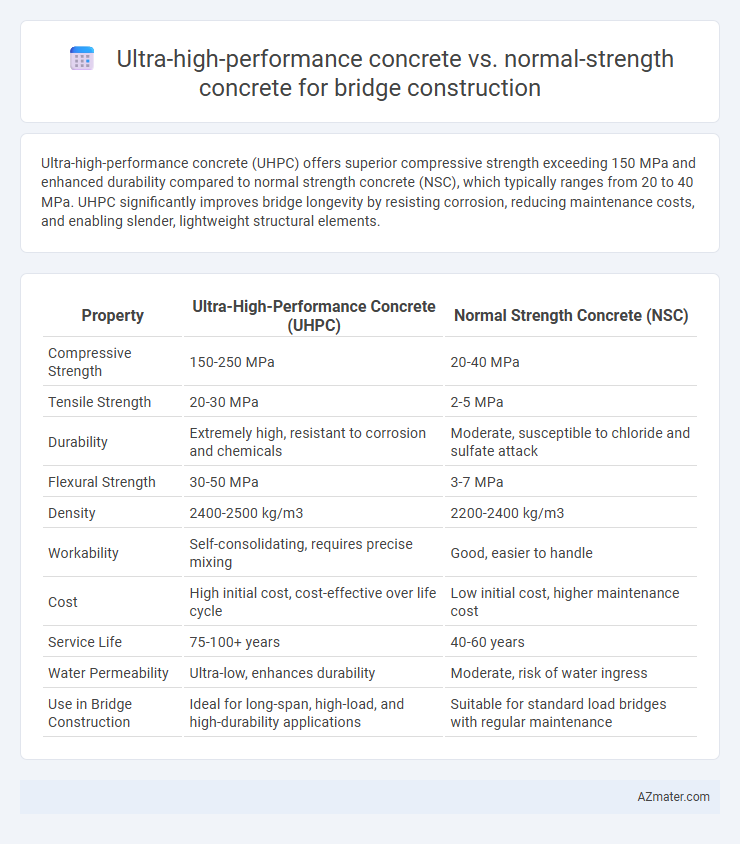

Infographic: Ultra-high-performance concrete vs Normal strength concrete for Bridge construction
