azmater.com Shotcrete offers rapid application and strong adhesion for complex bridge repairs, while Self-Consolidating Concrete provides superior flowability and uniformity for intricate formworks without vibration. Selecting between the two depends on project-specific requirements like accessibility, structural demands, and curing time.
Table of Comparison
| Property | Shotcrete | Self-Consolidating Concrete (SCC) |
|---|---|---|
| Definition | Pneumatically applied concrete mix for repair and overlay. | Highly flowable concrete that consolidates under its own weight. |
| Application Method | Sprayed using compressed air onto surfaces. | Poured or pumped without mechanical vibration. |
| Workability | Low slump, requires skilled spraying technique. | High slump flow, self-leveling and self-compacting. |
| Bonding | Excellent adhesion to existing concrete or steel. | Good bonding but may require surface preparation. |
| Strength | High early strength, strong in compression and tensile. | High compressive strength with uniform density. |
| Durability | Resistant to freeze-thaw and corrosion when properly applied. | Durable with low permeability and high resistance to segregation. |
| Typical Uses in Bridge Repair | Patching, structural overlays, overhead repairs. | Deck repairs, complex formwork, heavily reinforced areas. |
| Advantages | Fast application, minimal formwork, ideal for vertical/overhead surfaces. | Excellent flowability, reduces labor, avoids vibration damage. |
| Limitations | Requires skilled applicator, rebound waste, dust generation. | Higher material cost, sensitive to mix design variations. |
Introduction to Bridge Repair Techniques
Shotcrete and self-consolidating concrete (SCC) are advanced materials extensively used in bridge repair to enhance structural integrity and durability. Shotcrete, applied pneumatically, provides excellent adhesion and rapid setting on complex surfaces, making it ideal for patch repairs and overhead work. Self-consolidating concrete offers superior flowability and compaction without external vibration, ensuring high-quality, void-free repairs in congested reinforcement areas.
What is Shotcrete?
Shotcrete is a method of applying concrete or mortar conveyed through a hose and pneumatically projected at high velocity onto a surface, commonly used in bridge repair for its ability to conform to complex shapes and provide strong adhesion. This technique enables rapid placement without the need for formwork, making it ideal for patching, rehabilitation, and structural reinforcement in infrastructure projects. Shotcrete's high-density matrix and controlled application result in enhanced durability and reduced permeability, critical for extending the lifespan of bridges.
Understanding Self-Consolidating Concrete (SCC)
Self-Consolidating Concrete (SCC) is a highly flowable and non-segregating concrete mix specifically designed to fill complex formworks and dense reinforcement without the need for mechanical vibration. Its ability to maintain excellent cohesiveness and stability during placement reduces labor and speeds up bridge repair processes compared to traditional shotcrete, which relies on pneumatic application. SCC's superior workability and reduced permeability enhance durability, making it an ideal choice for intricate bridge restoration projects requiring precise application and long-term performance.
Key Differences Between Shotcrete and SCC
Shotcrete involves pneumatically projected concrete that adheres to surfaces, ideal for overhead or vertical bridge repairs, providing quick setting and high bond strength, while self-consolidating concrete (SCC) is highly flowable with no need for vibration, ensuring superior surface finish and filling complex forms in bridge structures. Key differences include application methods, with shotcrete sprayed onto surfaces requiring skilled nozzle operation, whereas SCC is cast with conventional methods but flows into intricate spaces effortlessly. SCC reduces labor and noise on-site, whereas shotcrete offers better adhesion for repairs exposed to dynamic stresses.
Application Methods in Bridge Repair
Shotcrete is applied by pneumatically projecting concrete at high velocity onto bridge surfaces, allowing for rapid layering and strong adhesion in overhead or vertical repairs. Self-consolidating concrete (SCC) flows easily into complex formworks without mechanical vibration, making it ideal for filling intricate bridge joints and precast elements. The choice between shotcrete and SCC depends on the bridge repair context, where shotcrete excels in surface restoration and SCC is preferred for structural fills requiring uniform compaction.
Performance and Durability Comparisons
Shotcrete offers high compressive strength and excellent adhesion to existing bridge surfaces, making it ideal for structural repairs requiring immediate load-bearing capacity. Self-consolidating concrete (SCC) provides superior flowability and uniformity, reducing honeycombing and voids in complex formworks, which enhances durability under cyclic loading conditions. In terms of long-term performance, SCC's dense microstructure typically exhibits better resistance to chloride penetration and freeze-thaw cycles compared to shotcrete, contributing to extended service life in harsh bridge environments.
Cost Analysis: Shotcrete vs. SCC
Shotcrete generally offers lower initial costs for bridge repair due to reduced formwork and labor requirements, making it economically advantageous for smaller or complex repairs. Self-Consolidating Concrete (SCC) incurs higher material and mixer costs but reduces labor and equipment expenses by eliminating vibration and enabling faster placement. Overall, the cost-effectiveness of Shotcrete versus SCC depends on project size, complexity, and labor market conditions, with SCC proving more efficient in large-scale, high-precision repairs.
Suitability for Various Bridge Repair Scenarios
Shotcrete offers exceptional adhesion and versatility, making it ideal for localized repairs such as spalling and patching on bridges with irregular shapes or limited access. Self-consolidating concrete (SCC) excels in filling complex formworks and large-scale repairs due to its high flowability and ability to consolidate under its own weight, reducing labor and ensuring uniformity. Selecting between shotcrete and SCC depends on the repair's scale, structural complexity, and site constraints, with shotcrete suited for precision repairs and SCC favored for extensive overlay or reconstruction projects.
Environmental Impact and Sustainability
Shotcrete and self-consolidating concrete (SCC) offer distinct environmental impacts in bridge repair applications, with SCC typically reducing waste due to its high flowability and minimal need for vibration, leading to lower energy consumption on-site. Shotcrete, while effective for rapid application and curved surfaces, may generate more overspray and rebound waste, potentially increasing material loss and environmental footprint. Sustainable bridge repair favors SCC when minimizing carbon emissions and material waste is critical, aligning with green construction goals through improved durability and resource efficiency.
Choosing the Right Solution for Your Bridge Repair Project
Shotcrete offers high adhesion and versatility for complex bridge geometries, making it ideal for overhead and vertical repairs where rapid strength gain is crucial. Self-consolidating concrete (SCC) provides superior flowability and uniformity, reducing labor costs and minimizing voids in heavily reinforced or intricate formwork areas. Selecting between shotcrete and SCC depends on specific project requirements such as surface conditions, structural complexity, and desired curing time to ensure optimal durability and performance.

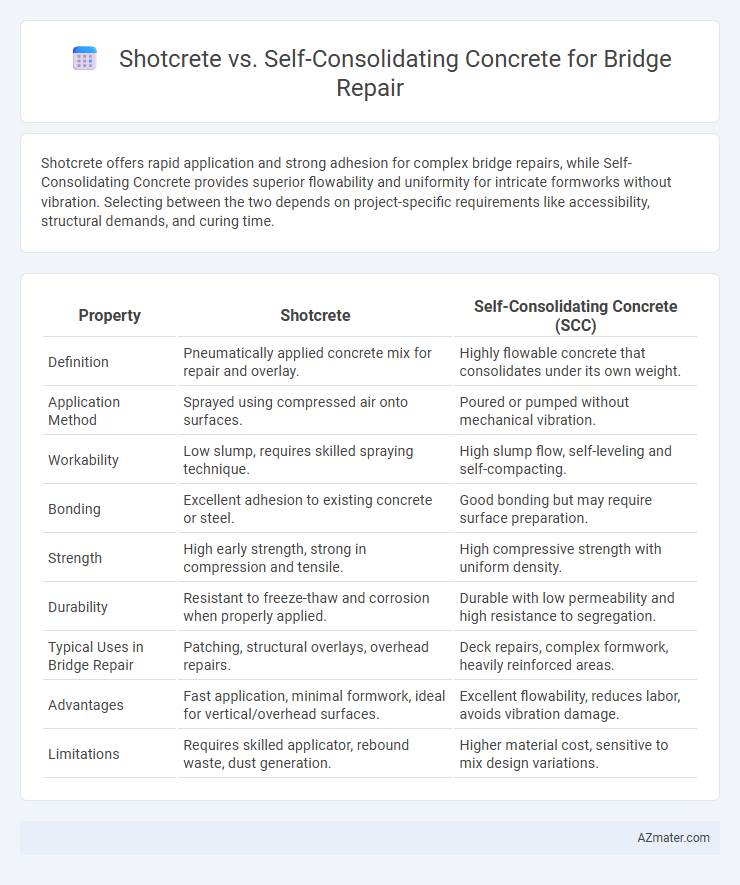

Infographic: Shotcrete vs Self-Consolidating Concrete for Bridge Repair
