azmater.com Reactive powder concrete (RPC) offers higher compressive strength and durability compared to shotcrete, making it ideal for structural repair work requiring enhanced load-bearing capacity. Shotcrete provides faster application and better adhesion on irregular surfaces, suitable for rapid repairs and complex geometries.
Table of Comparison
| Property | Reactive Powder Concrete (RPC) | Shotcrete |
|---|---|---|
| Composition | Ultra-fine powders including cement, silica fume, quartz sand, and steel fibers | Concrete or mortar pneumatically projected at high velocity onto surfaces |
| Strength | High compressive strength (up to 200 MPa) | Moderate to high compressive strength (15-70 MPa) |
| Durability | Exceptional durability, low permeability, highly resistant to chemical attack | Good durability, depends on mix and application quality |
| Application | Cast in formwork; suitable for precast and repair requiring high strength | Applied directly on surfaces; ideal for complex shapes and overhead repairs |
| Workability | Low slump; requires precise mixing and placing techniques | Good workability; easy to apply in various site conditions |
| Bonding | Excellent bonding with existing concrete when surface prepared | Strong adhesion if surface is properly prepared and moisture controlled |
| Cost | Higher material and processing cost | Generally lower cost, economical for large-scale repair work |
| Typical Repair Uses | Structural repairs needing high strength and durability | Surface repairs, patching, sealing cracks, overhead structures |
Introduction to Concrete Repair Methods
Reactive powder concrete (RPC) offers enhanced mechanical properties and durability compared to traditional concrete, making it ideal for high-performance repair applications. Shotcrete, a sprayed concrete method, enables rapid placement and effective adhesion to irregular surfaces, often used for structural repairs and stabilization. Both methods address different repair needs, with RPC providing superior strength and shotcrete offering versatility and speed in concrete repair.
Overview of Reactive Powder Concrete (RPC)
Reactive Powder Concrete (RPC) is an ultra-high-performance material known for its exceptional compressive strength, durability, and low permeability, making it ideal for demanding repair applications. Its composition includes fine powders, such as silica fume and quartz sand, combined with steel fibers to enhance toughness and crack resistance. RPC's superior mechanical properties and enhanced durability outperform traditional repair materials like Shotcrete, especially in structural rehabilitation requiring long-lasting and resilient solutions.
Understanding Shotcrete Technology
Shotcrete technology utilizes pneumatically projected concrete that offers superior adhesion and rapid setting for repair work, making it highly effective in overhead or vertical applications. Compared to reactive powder concrete (RPC), which emphasizes ultra-high strength and durability through fine powders and enhanced microstructure, shotcrete excels in versatility and ease of application in complex geometries. Understanding shotcrete's capabilities, such as spray nozzle control and tailored mix designs, ensures optimal bonding and structural restoration in repair projects.
Material Properties Comparison
Reactive powder concrete (RPC) exhibits superior mechanical properties including higher compressive strength often exceeding 200 MPa, enhanced durability due to reduced porosity, and improved resistance to abrasion and chemical attack compared to shotcrete. Shotcrete offers rapid application and good bonding characteristics but typically attains lower compressive strengths around 30-70 MPa and greater permeability, which may affect long-term durability. Material selection hinges on the required performance criteria, with RPC favored for high-strength, corrosion-resistant repairs and shotcrete preferred for quick, versatile repairs with moderate structural demands.
Durability and Longevity Analysis
Reactive powder concrete (RPC) exhibits superior durability and longevity compared to shotcrete due to its ultra-high compressive strength, reduced porosity, and enhanced resistance to chemical attacks and freeze-thaw cycles. Shotcrete, while effective for rapid application and repair in complex geometries, typically has lower density and higher permeability, which can compromise long-term performance under aggressive environmental conditions. Studies indicate that RPC's dense microstructure significantly extends repair lifespan, reducing maintenance frequency in infrastructure subjected to heavy loads and harsh environments.
Application Techniques and Equipment
Reactive powder concrete (RPC) requires precise mixing and high-pressure compaction techniques, typically applied using advanced equipment like computer-controlled batching plants and steam curing chambers for ultra-high strength repair work. Shotcrete, on the other hand, is applied through pneumatic or robotic spraying equipment that enables rapid placement on vertical or overhead surfaces, making it ideal for complex repair geometries and quick setting in situ. The choice between RPC and shotcrete depends on the repair specifications, with RPC demanding more controlled conditions and shotcrete offering versatility and faster application.
Cost-effectiveness and Resource Efficiency
Reactive powder concrete (RPC) offers superior durability and higher compressive strength compared to shotcrete, leading to longer-lasting repairs and reduced frequency of maintenance, thus enhancing cost-effectiveness. Shotcrete provides faster application and requires less formwork, lowering labor and material costs, which improves resource efficiency especially in complex or overhead repairs. Choosing between RPC and shotcrete depends on project scale and performance requirements, balancing upfront costs with long-term savings and resource use.
Suitability for Various Repair Scenarios
Reactive powder concrete offers superior compressive strength and durability, making it ideal for structural repairs requiring high-performance materials, such as bridges and high-stress infrastructure. Shotcrete provides excellent adaptability for complex shapes and overhead repairs due to its sprayable application, making it suitable for tunneling, slope stabilization, and surface repair in confined spaces. Selection between reactive powder concrete and shotcrete depends on the repair scenario's load demands, accessibility, and required material properties.
Environmental and Sustainability Considerations
Reactive powder concrete (RPC) offers superior durability and reduced permeability, significantly extending the lifespan of repaired structures and minimizing resource consumption over time. Shotcrete requires less formwork and can be applied rapidly, reducing construction waste and energy use during repair processes. Both materials contribute to sustainability, but RPC's higher strength-to-weight ratio and lower cement content provide a more eco-friendly solution by lowering carbon emissions and overall environmental impact.
Conclusion: RPC or Shotcrete for Optimal Repair Results
Reactive powder concrete (RPC) offers superior compressive strength, durability, and reduced permeability compared to shotcrete, making it ideal for structural repairs requiring long-term performance. Shotcrete provides faster application and excellent bonding on irregular surfaces, suited for quick fixes and complex geometries. For optimal repair results, RPC is preferred when high strength and durability are critical, while shotcrete is better for speed and adaptability in repair projects.

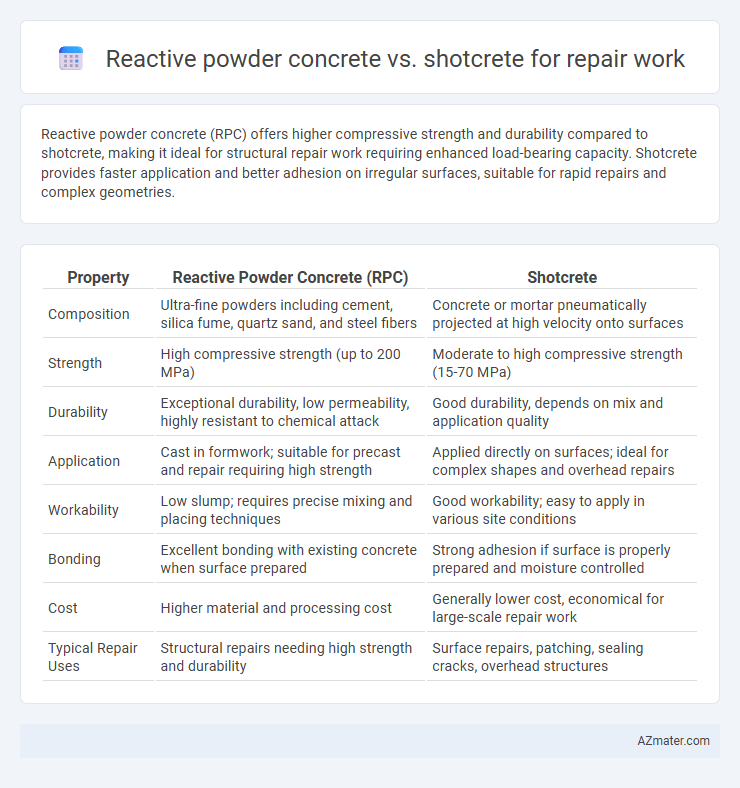

Infographic: Reactive powder concrete vs Shotcrete for Repair work
