azmater.com Shotcrete provides superior adhesion and rapid strength gain for tunnel repair, making it ideal for complex shapes and overhead applications. Lightweight concrete offers enhanced thermal insulation and reduced structural load, improving long-term durability and energy efficiency in tunnel rehabilitation.
Table of Comparison
| Feature | Shotcrete | Lightweight Concrete |
|---|---|---|
| Material Composition | Concrete sprayed at high velocity onto surfaces | Concrete with lightweight aggregates like expanded clay or shale |
| Density | ~2200 kg/m3 (normal density) | 500-1800 kg/m3 (significantly lighter) |
| Applications in Tunnel Repair | Structural reinforcement, crack sealing, rapid application on irregular surfaces | Reduced load on tunnel lining, insulation, void filling |
| Strength | High compressive strength (up to 40 MPa) | Moderate compressive strength (5-25 MPa) |
| Installation Method | Pneumatic spraying using dry or wet mix | Conventional casting or pumping |
| Setting Time | Rapid setting (minutes to hours) | Standard concrete setting time (hours to days) |
| Advantages | Fast application, excellent adhesion, ideal for overhead and vertical surfaces | Lightweight, reduces stress on structures, better thermal insulation |
| Limitations | Higher rebound waste, requires skilled labor | Lower strength, longer curing time |
Introduction to Tunnel Repair Materials
Shotcrete and lightweight concrete are essential materials for tunnel repair, offering distinct advantages based on structural requirements and site conditions. Shotcrete provides high adhesion and rapid setting, making it ideal for stabilizing rock surfaces and complex geometries, while lightweight concrete is favored for its reduced density, thermal insulation, and ease of handling in confined tunnel spaces. Selecting the appropriate material depends on factors such as load-bearing capacity, moisture resistance, and application method, impacting long-term durability and safety in tunnel rehabilitation projects.
Overview of Shotcrete in Tunnel Applications
Shotcrete is a highly versatile construction material, widely used in tunnel repair for its rapid application and excellent adhesion to irregular surfaces. Its pneumatically applied cementitious mixture provides superior structural support and crack resistance, making it ideal for stabilizing tunnel linings and preventing water ingress. The material's adaptability allows for both traditional dry-mix and wet-mix processes, optimizing performance based on specific project requirements and environmental conditions.
Understanding Lightweight Concrete
Lightweight concrete, characterized by its lower density and enhanced thermal insulation properties, offers significant advantages for tunnel repair by reducing structural load and improving durability in confined underground spaces. Unlike traditional shotcrete, lightweight concrete incorporates lightweight aggregates such as expanded clay or shale, which contribute to increased workability and reduced shrinkage, essential for maintaining tunnel integrity. This material's ability to bond effectively with existing substrates and resist environmental stressors makes it a superior choice for long-term tunnel stabilization and rehabilitation.
Material Properties: Shotcrete vs Lightweight Concrete
Shotcrete exhibits high compressive strength and excellent adhesion properties, making it ideal for reinforcing tunnel linings subjected to dynamic loads. Lightweight concrete offers reduced density and enhanced thermal insulation, which benefits tunnel sections requiring weight minimization and temperature control. The choice between shotcrete and lightweight concrete depends on specific material properties such as strength, bonding capability, and thermal performance relevant to tunnel repair requirements.
Application Techniques and Equipment
Shotcrete involves pneumatically applying a mix of cement, aggregate, and water directly onto tunnel surfaces using specialized spraying equipment, allowing rapid application and excellent adhesion even on irregular surfaces. Lightweight concrete utilizes traditional formwork and placing techniques with lightweight aggregates, suitable for areas requiring reduced structural load but involving longer setting times and heavier equipment such as concrete mixers and pumps. Shotcrete's versatility and efficient application make it ideal for quick repairs and complex geometries, while lightweight concrete is preferred for structural zones demanding lower density materials with precise form shaping.
Structural Performance in Tunnel Repair
Shotcrete offers superior structural performance for tunnel repair due to its high early strength, excellent bonding properties, and ability to conform to complex geometries, ensuring effective reinforcement and stability. Lightweight concrete provides reduced dead load, which enhances overall tunnel safety and reduces stress on existing structures, but it may have lower compressive strength compared to shotcrete. The optimal choice depends on balancing structural demands, load considerations, and repair conditions, with shotcrete often preferred for immediate strength and durability in high-stress environments.
Durability and Longevity Comparison
Shotcrete offers superior durability and longevity in tunnel repair due to its dense, high-strength composition and excellent bond with existing structures, effectively resisting environmental stress and mechanical wear. Lightweight concrete, while beneficial for reducing structural load and providing thermal insulation, generally exhibits lower compressive strength and increased permeability, potentially compromising long-term durability in harsh tunnel environments. Selecting shotcrete enhances resistance to cracking, spalling, and chemical attack, ensuring extended service life of the repair under demanding subterranean conditions.
Cost Analysis and Economic Considerations
Shotcrete offers a cost-effective solution for tunnel repair due to its rapid application and reduced labor requirements, minimizing overall project duration and expenses. Lightweight concrete, while typically more expensive per cubic meter, provides long-term economic benefits by reducing structural load and improving energy efficiency during tunnel operation. Evaluating the total cost of ownership, including material, application, and lifecycle durability, is essential for selecting the most economically viable option between shotcrete and lightweight concrete.
Environmental Impact and Sustainability
Shotcrete offers excellent adhesion and rapid application, reducing construction time and associated emissions, but often contains higher cement content contributing to carbon footprint. Lightweight concrete, incorporating recycled aggregates or industrial by-products, lowers density and thermal conductivity while enhancing energy efficiency and sustainability in tunnel repairs. Selecting materials with lower embodied energy and optimizing mix designs can significantly minimize environmental impact in subterranean infrastructure projects.
Best Practices for Selecting Repair Materials
Shotcrete offers superior adhesion and rapid application, making it ideal for intricate tunnel geometries and quick repairs, while lightweight concrete provides enhanced thermal insulation and reduced structural load. Selecting repair materials should prioritize factors like load-bearing capacity, moisture resistance, and compatibility with existing tunnel substrates to ensure durability. Integrating high-performance additives, such as silica fume in shotcrete or expanded polystyrene beads in lightweight concrete, optimizes repair outcomes in tunnel engineering.

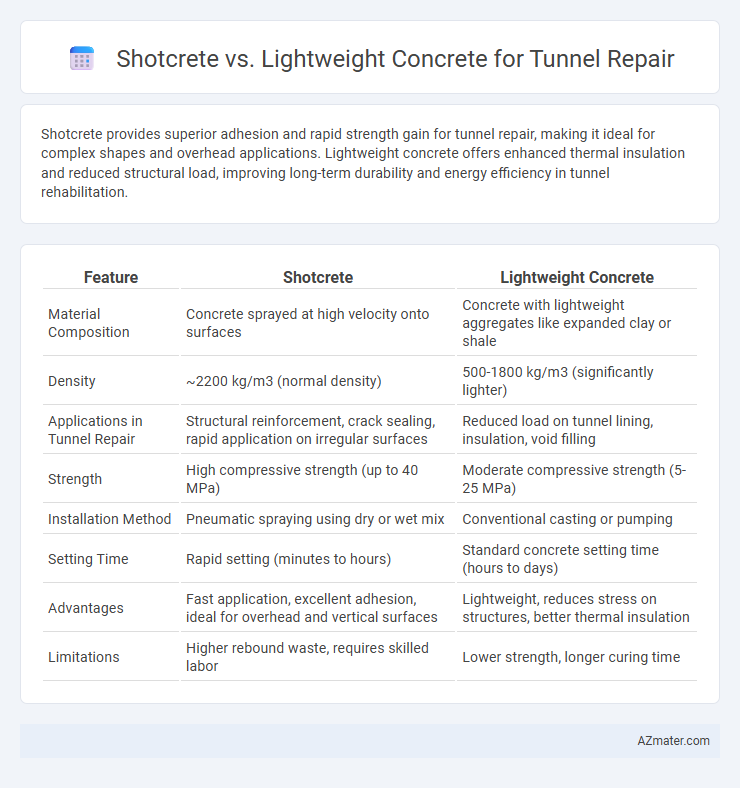

Infographic: Shotcrete vs Lightweight Concrete for Tunnel Repair
