azmater.com Reactive powder concrete offers superior compressive strength and durability for pavement applications, while roller compacted concrete provides faster construction and cost efficiency with adequate load-bearing capacity. Pavements using reactive powder concrete excel in high-stress environments, whereas roller compacted concrete suits large-scale projects requiring rapid installation.
Table of Comparison
| Property | Reactive Powder Concrete (RPC) | Roller Compacted Concrete (RCC) |
|---|---|---|
| Composition | Ultra-fine powders, silica fume, cement, fine sand, steel fibers | Concrete with low water content, coarse and fine aggregates, cement |
| Strength | Compressive strength: 150-200 MPa (high strength) | Compressive strength: 20-40 MPa (moderate strength) |
| Durability | Excellent resistance to abrasion, chemical attack, and freeze-thaw cycles | Good durability, resistant to heavy traffic and weathering |
| Application | High-performance pavement, bridges, thin overlays | Heavy-duty pavement, parking areas, dams |
| Construction Method | Cast and vibrated; requires precise mixing and curing | Placed by spreading and compacted with rollers; fast construction |
| Cost | Higher initial cost due to materials and processing | Lower cost; economical for large-scale pavements |
| Setting Time | Longer setting time; requires controlled curing | Rapid setting suitable for immediate traffic loading |
| Surface Finish | Smooth, dense, and high-quality finish | Rougher texture; functional skid resistance |
Introduction: Understanding Modern Pavement Materials
Reactive powder concrete (RPC) offers exceptional strength, durability, and reduced porosity, making it ideal for high-performance pavement applications requiring enhanced load-bearing capacity and longevity. Roller compacted concrete (RCC) is favored for its rapid application, cost-effectiveness, and robustness, suitable for large-scale pavement projects like highways and industrial floors due to its dense, low-slump mixture and swift compaction process. Understanding these materials' unique properties and performance characteristics is crucial for selecting the optimal pavement solution based on structural demands and project constraints.
Overview of Reactive Powder Concrete (RPC)
Reactive Powder Concrete (RPC) is an ultra-high-performance concrete characterized by its low porosity, high compressive strength exceeding 200 MPa, and improved durability due to optimized particle packing and steel fiber reinforcement. RPC's dense microstructure and superior mechanical properties make it ideal for pavement applications requiring long service life and resistance to heavy loads and environmental stresses. Compared to Roller Compacted Concrete (RCC), which emphasizes rapid placement and cost-efficiency, RPC offers enhanced structural performance and reduced maintenance cycles in pavement construction.
Overview of Roller Compacted Concrete (RCC)
Roller Compacted Concrete (RCC) is a zero-slump concrete mixture characterized by its high density and low water content, designed for rapid compaction using vibratory rollers. RCC offers superior load-bearing capacity and durability, making it ideal for heavy-duty pavement applications such as highways, airports, and industrial yards. Its cost-effectiveness and quick construction time outperform traditional concrete types, providing enhanced resistance to cracking and reduced maintenance requirements in pavement structures.
Composition and Material Properties Comparison
Reactive powder concrete (RPC) features a fine-grained composition with cement, silica fume, quartz powder, and steel fibers, resulting in ultra-high strength and enhanced durability. Roller compacted concrete (RCC) uses a coarser aggregate blend with minimal water, leading to a stiff consistency optimized for heavy compaction and rapid placement. RPC exhibits higher compressive strength and reduced permeability, whereas RCC provides faster construction and improved load distribution, making material properties critical in pavement performance.
Mechanical Strength: RPC vs RCC
Reactive Powder Concrete (RPC) exhibits significantly higher mechanical strength compared to Roller Compacted Concrete (RCC) due to its ultra-fine powders and optimized particle packing, achieving compressive strengths often exceeding 150 MPa. RCC offers moderate mechanical strength, typically ranging between 20 to 50 MPa, suitable for heavy-duty pavements but limited in high-stress applications. The superior mechanical strength of RPC enables thinner pavement sections and improved durability under extreme loading and environmental conditions.
Durability and Longevity in Pavement Applications
Reactive powder concrete (RPC) offers superior durability and longevity for pavement applications due to its ultra-high strength and dense microstructure, which significantly reduces permeability and resistance to chemical attacks. Roller compacted concrete (RCC), while providing fast construction and economic benefits, has a coarser aggregate structure that results in lower durability under heavy traffic and adverse environmental conditions. RPC's enhanced abrasion resistance and crack control capabilities lead to extended pavement life compared to RCC, making it ideal for high-performance pavement needs.
Construction Methods and Installation Process
Reactive powder concrete (RPC) employs a meticulous mixing process with fine powders, fibers, and high cement content, requiring precise batching, extended curing, and often steam curing to achieve high strength and durability in pavement applications. Roller compacted concrete (RCC) uses a dry, zero-slump mix spread by asphalt pavers and compacted with rollers, enabling rapid placement and minimal finishing, ideal for large-scale pavement projects with faster installation times. RPC demands controlled curing environments and skilled labor due to its sensitivity to temperature and moisture, whereas RCC benefits from simpler, conventional construction equipment and faster on-site installation without formwork or vibration.
Cost Analysis: Initial and Lifecycle Costs
Reactive powder concrete (RPC) for pavement offers higher initial costs due to advanced materials and intensive mixing processes, while roller compacted concrete (RCC) typically involves lower upfront expenses because of simpler placement methods and reduced cement content. Lifecycle costs of RPC may be lower, as its superior durability and high compressive strength lead to reduced maintenance and longer service life, whereas RCC may incur higher maintenance due to relatively lower strength and permeability impacting pavement longevity. Evaluating total cost of ownership for pavement projects requires balancing RPC's premium initial investment against RCC's potential increased repair frequency over time.
Sustainability and Environmental Impact
Reactive powder concrete (RPC) offers superior durability and reduced permeability, significantly extending pavement lifespan and minimizing resource consumption over time, which contributes to enhanced sustainability. Roller compacted concrete (RCC) uses less water and cement compared to conventional concretes, resulting in lower carbon emissions and energy consumption during production, thus offering a more environmentally friendly option. Selecting RPC or RCC for pavement depends on balancing long-term environmental impact with construction efficiency and material use, both playing critical roles in sustainable infrastructure development.
Suitability and Case Studies for Pavement Projects
Reactive powder concrete (RPC) offers superior compressive strength and durability, making it highly suitable for high-performance pavement projects requiring minimal maintenance and extended service life, such as airport runways and heavy-load industrial floors. Roller compacted concrete (RCC) is favored for large-scale pavement applications like highways and dam access roads due to its rapid placement, cost-effectiveness, and ability to support heavy traffic with adequate durability under diverse environmental conditions. Case studies demonstrate RPC's success in projects demanding ultra-high strength under severe loading, while RCC has proven effective in extensive infrastructure projects prioritizing economy and swift construction timelines.

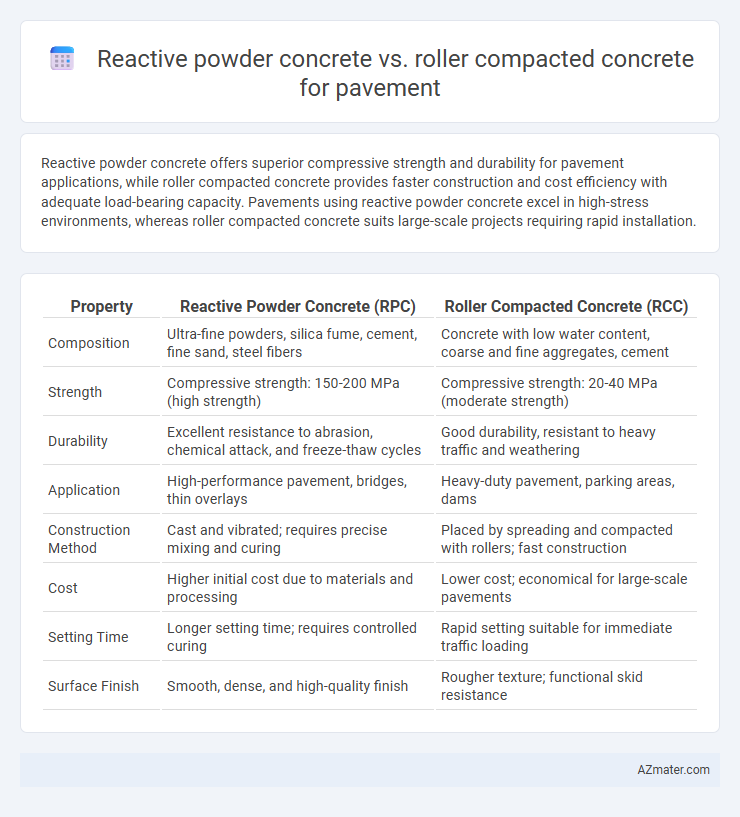

Infographic: Reactive powder concrete vs Roller compacted concrete for Pavement
