azmater.com Reactive powder concrete features ultra-high compressive strength and durability, making it ideal for building foundations requiring superior load-bearing capacity and resistance to environmental stress. Reinforced concrete incorporates steel reinforcement to enhance tensile strength and flexibility, providing reliable performance in dynamic structural conditions.
Table of Comparison
| Property | Reactive Powder Concrete (RPC) | Reinforced Concrete (RC) |
|---|---|---|
| Composition | Ultra-fine powders, silica fume, high cement content, no coarse aggregates | Cement, coarse aggregates, sand, water, steel reinforcement |
| Compressive Strength | 150-200 MPa | 20-40 MPa |
| Tensile Strength | ~10-15 MPa | 3-5 MPa |
| Durability | High: resistant to abrasion, chemicals, freeze-thaw | Moderate: susceptible to cracking and corrosion over time |
| Density | ~2400 kg/m3 | ~2300 kg/m3 |
| Application in Foundations | Ideal for high-load, durable foundations with reduced thickness | Standard for general building foundations with moderate loads |
| Cost | Higher initial cost due to materials and processing | Lower cost and widely available |
| Workability | Requires skilled labor and controlled environment | Widely used with standard construction techniques |
| Environmental Impact | Lower volume needed, but high cement content impacts CO2 emissions | Higher volume but simpler materials reduce complexity |
Introduction to Building Foundations
Reactive powder concrete (RPC) offers superior compressive strength and durability compared to traditional reinforced concrete, making it an advanced material choice for building foundations that require high load-bearing capacity and resistance to harsh environmental conditions. Reinforced concrete, widely used in foundation construction, combines tensile strength from steel reinforcement with concrete's compressive strength, providing cost-effective and reliable support for most soil and load scenarios. Innovations in reactive powder concrete contribute to more compact, less permeable, and longer-lasting foundations, essential for modern infrastructure demanding enhanced performance and reduced maintenance.
Overview of Reactive Powder Concrete
Reactive Powder Concrete (RPC) is an advanced ultra-high-performance concrete known for its exceptional strength, durability, and reduced porosity, making it an ideal choice for building foundations requiring superior load-bearing capacity. Unlike conventional Reinforced Concrete, RPC utilizes fine powders, superplasticizers, and steel fibers to achieve compressive strengths exceeding 200 MPa while minimizing micro-cracks. This results in foundation structures with enhanced resistance to environmental degradation, improved longevity, and reduced maintenance costs.
Overview of Reinforced Concrete
Reinforced concrete is a composite material composed of concrete and steel reinforcement bars, offering high compressive and tensile strength essential for building foundations. It provides durability, fire resistance, and versatility in various structural applications, making it a widely used choice in construction projects. The integration of steel bars within concrete optimizes load-bearing capacity and crack control, ensuring long-term stability and safety of foundations.
Material Composition Comparison
Reactive powder concrete (RPC) features an ultra-fine powder composition including silica fume, quartz powder, and high cement content, resulting in a dense, high-strength matrix, whereas reinforced concrete (RC) primarily relies on coarse and fine aggregates mixed with cement and water, combined with steel rebar for structural support. RPC eliminates coarse aggregates, enhancing its compactness and mechanical properties, whereas RC's inclusion of aggregates offers versatility and cost-effectiveness but with comparatively lower tensile strength. The microstructure of RPC provides superior durability and resistance to cracking, making it highly suitable for demanding building foundation applications, while RC remains a standard option due to its balance of strength and economic viability.
Strength and Durability Differences
Reactive powder concrete (RPC) exhibits significantly higher compressive strength, often exceeding 200 MPa, compared to conventional reinforced concrete, which typically ranges between 20-40 MPa, making RPC ideal for high-load building foundations. The dense microstructure of RPC, achieved through fine powders and minimal water-cement ratio, enhances its durability by reducing permeability and resistance to chemical attacks, surpassing the performance of standard reinforced concrete. Reinforced concrete relies on steel reinforcement for tensile strength but remains more susceptible to corrosion and cracking, whereas RPC's superior matrix reduces these vulnerabilities, extending the foundation's service life.
Workability and Construction Techniques
Reactive powder concrete (RPC) offers superior workability due to its ultra-fine particles and optimized mix design, enabling easier placement and compaction in complex foundation forms compared to traditional reinforced concrete. Construction techniques for RPC foundations often involve meticulous mixing and curing processes to achieve its high strength and durability, while reinforced concrete relies on conventional batching and reinforcement placement methods that accommodate larger aggregate sizes. The enhanced rheology of RPC reduces the need for mechanical vibration during placement, streamlining construction workflows and improving overall efficiency on-site.
Cost Implications and Economic Factors
Reactive powder concrete (RPC) offers superior durability and higher compressive strength compared to traditional reinforced concrete (RC), often resulting in reduced material quantities and thinner foundation sections, which can lower overall construction costs despite its higher initial price. The dense microstructure of RPC decreases maintenance expenses over time due to enhanced resistance to cracking and environmental degradation, improving long-term economic benefits for building foundations. However, the specialized production process and limited availability of RPC may increase upfront costs and limit cost savings in certain regions compared to the widely accessible and cost-effective reinforced concrete.
Environmental Impact and Sustainability
Reactive powder concrete (RPC) provides superior durability and compressive strength compared to traditional reinforced concrete, resulting in thinner foundation elements and reduced material consumption, which lowers the environmental footprint. RPC's denser microstructure minimizes permeability, enhancing lifespan and reducing maintenance frequency, thus promoting sustainable building practices. Reinforced concrete, while versatile and widely used, typically involves higher cement content and steel reinforcement, contributing to increased carbon emissions and resource depletion over the structure's lifecycle.
Performance in Harsh Conditions
Reactive powder concrete (RPC) exhibits superior performance in harsh conditions due to its high compressive strength, low porosity, and enhanced durability against freeze-thaw cycles, chemical attacks, and abrasion when compared to traditional reinforced concrete. Reinforced concrete relies on steel reinforcement which may corrode over time under aggressive environments, compromising the foundation's integrity. The nanostructured matrix of RPC significantly improves resistance to chloride penetration and sulfate attack, making it ideal for foundations exposed to marine or industrial environments.
Best Practices and Application Recommendations
Reactive powder concrete (RPC) offers superior compressive strength, durability, and reduced porosity compared to traditional reinforced concrete, making it ideal for high-load bearing foundation applications where space constraints and long service life are critical. Best practices for RPC include meticulous mixing procedures with optimized steel fiber content for enhanced tensile performance and curing under controlled temperature and humidity to prevent microcracking. Reinforced concrete remains cost-effective and easier to work with for general building foundations but requires thorough corrosion protection measures and adequate reinforcement detailing to ensure longevity in aggressive environmental conditions.

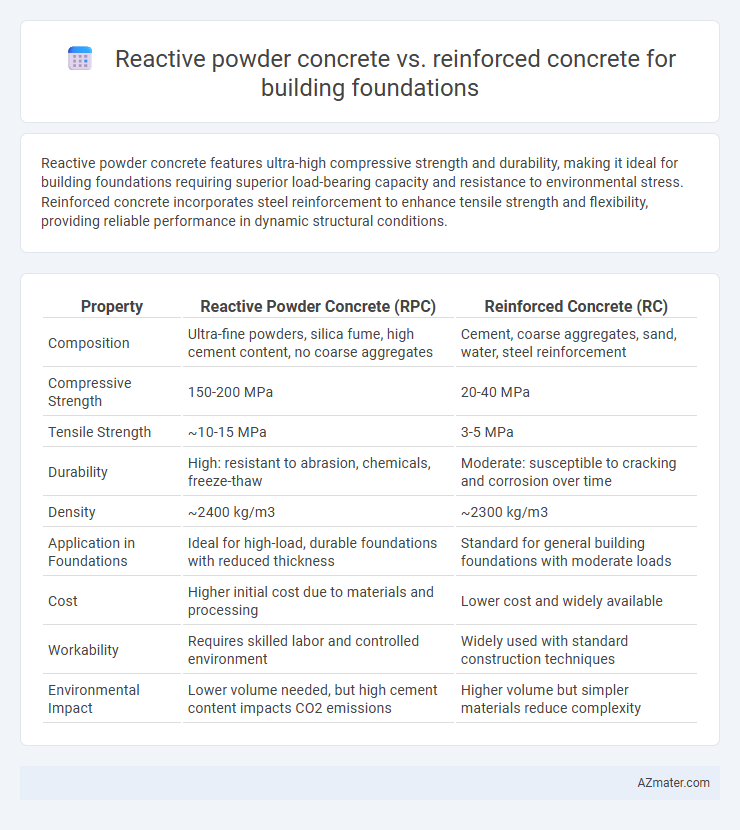

Infographic: Reactive powder concrete vs Reinforced concrete for Building foundation
