azmater.com Mass concrete provides exceptional durability and load-bearing capacity for tunnel linings, while shotcrete offers rapid application and excellent adhesion for irregular surfaces. Shotcrete's flexibility and ease of use make it ideal for complex geometries, whereas mass concrete excels in large structural elements requiring high compressive strength.
Table of Comparison
| Property | Mass Concrete | Shotcrete |
|---|---|---|
| Application | Tunnel lining, foundations, large pours | Tunnel repair, lining, irregular surfaces |
| Placement Method | Direct pouring and compaction | Sprayed pneumatically |
| Thickness | Typically 0.5m to several meters | Thin layers, 25mm to 100mm per pass |
| Setting Time | Longer curing time | Rapid setting with accelerators |
| Strength | High compressive strength, 25-50 MPa | Medium to high strength, 20-40 MPa |
| Durability | Excellent, resistant to weather and load | Good, depends on mix and application |
| Workability | Requires vibration for compaction | No vibration needed, self-compacting |
| Cost | Lower material cost, higher labor | Higher material cost, less labor |
| Typical Uses in Tunnels | Main concrete structure, bulk mass | Surface stabilization, repair, thin linings |
Introduction to Tunnel Lining Methods
Tunnel lining methods primarily include mass concrete and shotcrete, each offering distinct advantages based on geological and structural requirements. Mass concrete provides robust, monolithic support ideal for long-term durability in stable ground conditions, while shotcrete offers rapid application and flexibility, making it suitable for irregular surfaces and faster construction timelines. Selecting between mass concrete and shotcrete depends on factors such as tunnel size, ground stability, load-bearing capacity, and project schedule constraints.
Understanding Mass Concrete in Tunnel Construction
Mass concrete in tunnel construction involves large volumes of concrete poured continuously to form the primary structural lining, providing essential load-bearing capacity and long-term durability against ground pressure. This method ensures uniform strength development and minimizes cold joints, which is critical for the tunnel's stability and waterproofing performance. Compared to shotcrete, mass concrete requires more extensive formwork and curing time but delivers superior compressive strength and structural integrity for permanent tunnel linings.
Shotcrete: Definition and Application in Tunneling
Shotcrete, a pneumatically applied concrete mixture, is widely used in tunneling for its rapid setting and strong adhesion to irregular surfaces. This technique enhances tunnel support by providing immediate structural reinforcement, reducing excavation time and improving worker safety. Compared to mass concrete, shotcrete offers superior flexibility and efficiency in complex underground environments.
Comparison of Installation Techniques
Mass concrete installation for tunnels involves large-scale formwork, extensive reinforcement placement, and continuous pouring to ensure structural integrity and durability. Shotcrete application uses high-velocity spraying that allows rapid, flexible placement on irregular surfaces with minimal formwork, reducing construction time and labor costs. Shotcrete provides better adaptability in complex geometries, whereas mass concrete offers superior strength and uniformity for foundational tunnel sections.
Strength and Durability Factors
Mass concrete offers high compressive strength and excellent durability due to its dense, low-permeability matrix which reduces susceptibility to chemical attack and weathering in tunnel linings. Shotcrete provides superior adhesion and flexibility during application, enabling rapid strength gain and effective reinforcement around irregular tunnel surfaces, but may require careful mix design to achieve comparable long-term durability. Optimal tunnel lining performance often combines mass concrete's structural mass with shotcrete's adaptability, maximizing both strength and resistance to environmental deterioration.
Cost Analysis: Mass Concrete vs Shotcrete
Mass concrete typically incurs higher initial material and labor costs due to extensive formwork and curing requirements, while shotcrete offers cost savings through rapid application and reduced formwork expenses. In tunnel construction, shotcrete minimizes downtime, enabling faster project completion and overall lower indirect costs compared to mass concrete. Long-term maintenance expenses also tend to be lower with shotcrete because of its strong adhesion and adaptability to irregular tunnel surfaces.
Construction Speed and Project Timeline
Shotcrete accelerates tunnel construction by allowing immediate application on irregular surfaces, reducing set-up time compared to mass concrete which requires extensive formwork and curing periods. The faster curing time of shotcrete enables earlier structural support, thus shortening the overall project timeline significantly. Mass concrete, while providing robust structural strength, generally slows progress due to longer placement intervals and curing requirements.
Environmental Impact and Sustainability
Mass concrete in tunnel construction typically results in higher embodied carbon due to large cement volumes and energy-intensive mixing processes, contributing significantly to environmental impact. Shotcrete offers improved sustainability with reduced material consumption and waste, enhancing resource efficiency and lowering greenhouse gas emissions in tunnel lining applications. Utilizing supplementary cementitious materials in shotcrete further optimizes carbon footprint, promoting eco-friendly tunnel engineering practices.
Safety Considerations for Each Method
Mass concrete in tunnels provides robust structural integrity, minimizing the risk of collapse under high load stresses due to its dense, continuous mass, but requires careful curing to prevent thermal cracking that can compromise safety. Shotcrete ensures rapid application and excellent adhesion in complex geometries, reducing exposure times for workers and enhancing safety in unstable ground conditions, yet demands stringent quality control to avoid weak layers or rebound that may lead to structural failures. Both methods require tailored safety protocols; mass concrete involves thermal monitoring and formwork stability checks, while shotcrete prioritizes nozzle operator protection and precise material mix to maintain long-term tunnel support.
Choosing the Right Method for Tunnel Projects
Mass concrete offers high compressive strength and durability, making it ideal for large-scale tunnel linings where structural stability is paramount. Shotcrete provides rapid application and excellent adhesion to complex tunnel surfaces, enabling efficient reinforcement and repairs in confined spaces. Selecting the right method depends on factors like tunnel geometry, load requirements, project timeline, and environmental conditions to balance cost-effectiveness and structural performance.

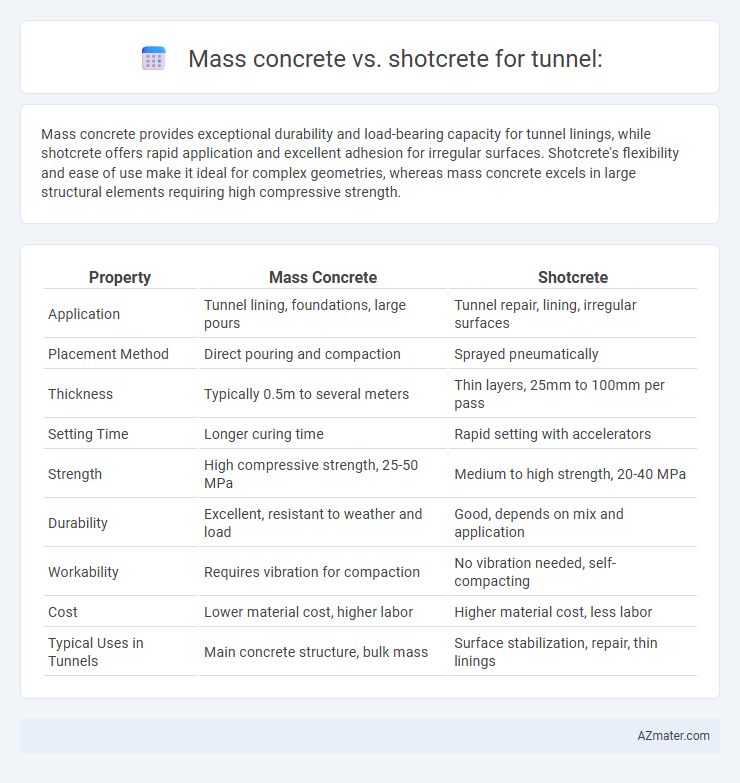

Infographic: Mass concrete vs Shotcrete for Tunnel
