Heavyweight concrete vs. self-compacting concrete for columns - What is The Difference?

Heavyweight concrete offers enhanced load-bearing capacity and radiation shielding for columns, while self-compacting concrete improves placement efficiency and reduces labor by flowing easily into complex formwork. Columns constructed with self-compacting concrete achieve superior surface finish and uniformity, whereas heavyweight concrete columns provide increased density and durability.

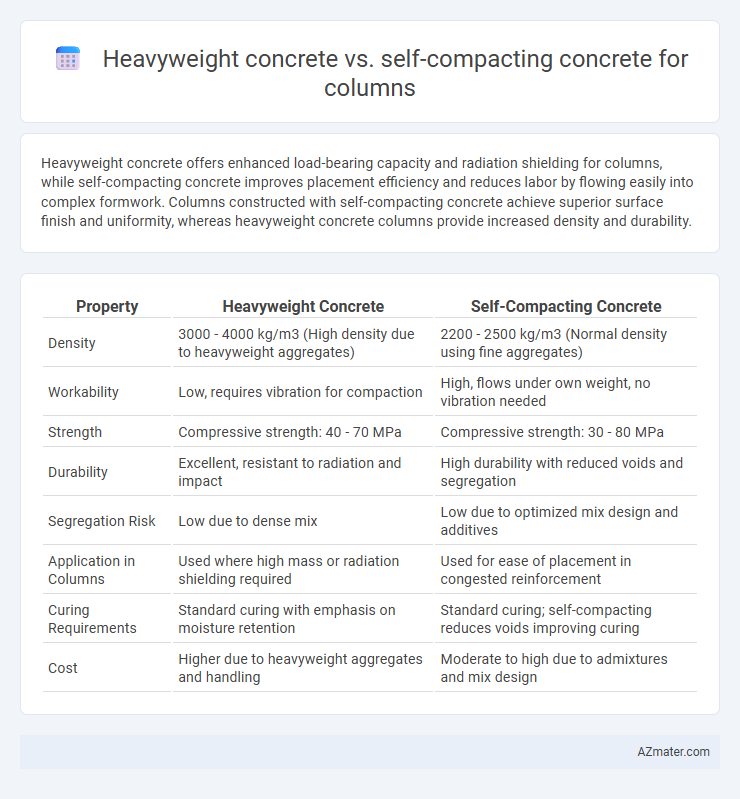

Table of Comparison

Overview of Heavyweight Concrete and Self-Compacting Concrete

Heavyweight concrete is characterized by its high density, achieved through aggregates such as magnetite, barite, or hematite, providing enhanced radiation shielding and structural strength for columns in nuclear or medical facilities. Self-compacting concrete (SCC) flows easily under its own weight without mechanical vibration, ensuring excellent filling of complex column formwork, superior surface finish, and improved durability due to uniform compaction. Both concretes serve specialized functions: heavyweight concrete optimizes mass and shielding, while SCC prioritizes workability and finish quality in column construction.

Material Composition: Comparing Mix Designs

Heavyweight concrete incorporates high-density aggregates like hematite or barite, boosting its density to 3000-4000 kg/m3 for enhanced radiation shielding and load-bearing capacity in columns. Self-compacting concrete features a highly flowable mix with superplasticizers and viscosity-modifying agents, allowing it to fill complex column forms without mechanical vibration while maintaining compressive strengths typically between 30-50 MPa. The heavyweight mix prioritizes aggregate density and strength, whereas self-compacting concrete emphasizes rheology and particle packing for optimal flow and uniformity in structural columns.

Strength and Load-Bearing Capacity

Heavyweight concrete, with its higher density due to aggregates like barite or hematite, offers superior strength and enhanced load-bearing capacity ideal for columns requiring radiation shielding or high mass. Self-compacting concrete provides excellent uniformity and compaction, improving the bond between reinforcement and concrete, which enhances structural integrity but typically has lower density and strength compared to heavyweight concrete. For columns subjected to extreme loads, heavyweight concrete outperforms in strength and durability, while self-compacting concrete excels in complex formworks and ensures consistent load distribution.

Workability and Placement Methods

Heavyweight concrete offers enhanced density and radiation shielding properties, but its workability is often lower due to the use of heavyweight aggregates, requiring careful vibration and compaction during placement to avoid voids in columns. Self-compacting concrete provides superior workability with high flowability and stability, allowing it to fill intricate column forms and congested reinforcement without mechanical vibration. Placement methods for self-compacting concrete rely primarily on gravity flow and gentle pumping, reducing labor and improving surface finish compared to the more labor-intensive consolidation needed for heavyweight concrete columns.

Durability and Longevity in Columns

Heavyweight concrete enhances column durability by providing superior radiation shielding, increased density, and resistance to impact and abrasion, extending structural lifespan in demanding environments. Self-compacting concrete improves longevity through its highly flowable nature, ensuring complete consolidation and minimizing voids that cause weaknesses, thus reducing permeability and enhancing resistance to corrosion and freeze-thaw cycles. Both types optimize durability in columns, but heavyweight concrete excels in high-load and radiation-heavy applications while self-compacting concrete excels in achieving uniform strength and preventing early deterioration.

Construction Speed and Labor Requirements

Heavyweight concrete offers superior density for structural columns but demands longer curing times and increased labor for proper placement and vibration. Self-compacting concrete significantly accelerates construction speed by eliminating the need for mechanical vibration, thereby reducing labor intensity and minimizing errors during pouring. Choosing self-compacting concrete can enhance efficiency on-site and lower workforce requirements while maintaining structural integrity in column construction.

Cost Implications of Each Concrete Type

Heavyweight concrete typically incurs higher material costs due to the use of dense aggregates like barite or magnetite, which increase the overall weight and price per cubic meter. Self-compacting concrete often demands premium admixtures and specialized mix designs, raising initial costs but reducing labor and placement expenses by eliminating the need for vibration. The total cost impact depends on project scale and complexity, where heavyweight concrete may lead to higher transportation and structural support costs, while self-compacting concrete can enhance productivity and lower long-term labor expenditure.

Structural Performance in Columns

Heavyweight concrete offers superior radiation shielding and higher density, enhancing structural mass and stability in columns, especially in nuclear or medical facilities. Self-compacting concrete improves uniformity and reduces voids, which enhances load distribution and bonding within column reinforcements, leading to improved durability under seismic and dynamic loads. Both types optimize structural performance, with heavyweight concrete excelling in mass-critical applications and self-compacting concrete providing better constructability and surface quality in complex column forms.

Applications and Best Use Cases

Heavyweight concrete, known for its high density and superior radiation shielding properties, is ideal for nuclear power plants, medical facilities, and underwater structures where radiation protection and structural mass are critical. Self-compacting concrete excels in complex column forms and congested reinforcement areas due to its high flowability and ability to fill molds without vibration, making it perfect for high-rise buildings and precast concrete components. Choosing between the two depends on project requirements: heavyweight concrete for enhanced durability and radiation shielding, self-compacting concrete for intricate shapes and faster construction times.

Environmental Impact and Sustainability

Heavyweight concrete, typically made with dense aggregates like magnetite or barite, increases structural mass to provide radiation shielding and improved durability, but its mining and transportation result in higher carbon emissions and environmental degradation. Self-compacting concrete (SCC), characterized by its high fluidity and superior workability, reduces construction waste and energy consumption due to minimized mechanical vibration and faster placement, supporting sustainable building practices. SCC also allows precise mix designs incorporating supplementary cementitious materials, significantly lowering the concrete's carbon footprint compared to traditional heavyweight mixes.
