azmater.com Glass fiber-reinforced concrete offers enhanced tensile strength and crack resistance for bridge components, while high-strength concrete provides superior compressive strength and durability under heavy loads. Selecting between these materials depends on the specific structural demands and environmental conditions of the bridge project.
Table of Comparison
| Property | Glass Fiber-Reinforced Concrete (GFRC) | High-Strength Concrete (HSC) |
|---|---|---|
| Composition | Portland cement, fine aggregates, glass fibers | Portland cement, fine & coarse aggregates, admixtures for high compressive strength |
| Compressive Strength | 30-70 MPa | 70-120 MPa |
| Flexural Strength | 4-8 MPa (enhanced by glass fibers) | 6-12 MPa |
| Durability | High resistance to cracking and chemical attack | Enhanced resistance to abrasion and environmental stress |
| Weight | Lightweight (1.8-2.0 g/cm3) | Normal weight (2.3-2.5 g/cm3) |
| Application in Bridges | Architectural panels, facades, non-structural components | Load-bearing components, piers, decks, beams |
| Cost | Moderate, depends on fiber content | Higher, due to admixtures and cement content |
| Advantages | Lightweight, crack resistance, ease of casting complex shapes | High compressive strength, durability, load capacity |
| Limitations | Lower compressive strength limits structural use | Higher cost and weight |
Introduction to Bridge Concrete Materials
Glass fiber-reinforced concrete (GFRC) incorporates alkali-resistant glass fibers to enhance tensile strength, durability, and crack resistance, making it ideal for bridge components exposed to dynamic loads and environmental stress. High-strength concrete (HSC) offers compressive strengths typically above 50 MPa, providing superior load-bearing capacity and reduced cross-sectional dimensions for bridge decks and piers. Selection between GFRC and HSC depends on structural requirements, exposure conditions, and durability considerations critical in bridge construction.
Overview of Glass Fiber-Reinforced Concrete (GFRC)
Glass fiber-reinforced concrete (GFRC) is a composite material consisting of a cementitious matrix embedded with alkali-resistant glass fibers, enhancing tensile strength and durability for bridge components. GFRC offers superior resistance to cracking, corrosion, and impact compared to conventional high-strength concrete, making it ideal for architectural panels, bridge decks, and overlays. Its lightweight nature and improved flexural performance contribute to reduced structural load and extended service life in bridge construction.
Key Properties of High-Strength Concrete (HSC)
High-strength concrete (HSC) typically exhibits compressive strengths above 6,000 psi (41 MPa), enabling it to support heavier loads and enhance the durability of bridge components. Its low permeability reduces water ingress and chloride penetration, thereby mitigating corrosion risks in reinforcing steel and extending the service life of the structure. The dense microstructure and refined pore system contribute to superior abrasion resistance and improved toughness compared to traditional concretes, making HSC ideal for critical structural elements in bridge construction.
Mechanical Performance Comparison
Glass fiber-reinforced concrete (GFRC) exhibits superior tensile strength and crack resistance compared to high-strength concrete, making it highly effective in enhancing the durability of bridge components subjected to dynamic loads. High-strength concrete provides excellent compressive strength, often exceeding 70 MPa, but lacks the ductility and impact resistance offered by GFRC due to its brittle nature. The integration of glass fibers in GFRC improves flexural performance and energy absorption capacity, which are critical for maintaining structural integrity under cyclic loading conditions experienced by bridges.
Durability and Longevity Factors
Glass fiber-reinforced concrete (GFRC) offers enhanced durability due to its resistance to cracking, corrosion, and chemical attacks, making it ideal for bridge components exposed to harsh environmental conditions. High-strength concrete (HSC) provides superior compressive strength and load-bearing capacity but may require additional protective measures against freeze-thaw cycles and chloride ingress to maintain longevity. Both materials contribute significantly to bridge longevity, with GFRC excelling in crack control and HSC delivering structural resilience under heavy loads.
Weight Considerations in Bridge Design
Glass fiber-reinforced concrete (GFRC) offers significant weight reduction compared to high-strength concrete (HSC) due to its lower density and enhanced tensile properties, which allow for thinner, lighter bridge components without compromising structural integrity. GFRC's lightweight characteristics reduce dead load, leading to minimized foundation requirements and potential cost savings in bridge design. In contrast, HSC's higher density increases overall weight despite its superior compressive strength, often necessitating heavier support structures.
Cost and Economic Analysis
Glass fiber-reinforced concrete (GFRC) offers a cost-effective solution for bridge components by reducing material weight and minimizing labor-intensive reinforcement compared to traditional high-strength concrete (HSC). GFRC's enhanced durability and crack resistance decrease long-term maintenance expenses, improving lifecycle cost efficiency despite higher initial material prices. Economic analysis indicates that GFRC's improved performance and reduced service interruptions often result in lower total project costs relative to HSC in bridge construction.
Ease of Fabrication and Construction
Glass fiber-reinforced concrete (GFRC) offers superior ease of fabrication due to its lightweight composition and ability to be molded into complex shapes, reducing labor and formwork costs in bridge construction. High-strength concrete (HSC) provides exceptional compressive strength but requires more precise curing conditions and heavier reinforcement handling, complicating the construction process. GFRC's flexibility and faster curing times typically lead to shorter project durations and lower fabrication complexity compared to HSC in bridge components.
Environmental Impact Assessment
Glass fiber-reinforced concrete (GFRC) offers a lower environmental impact compared to high-strength concrete (HSC) due to its reduced cement content and enhanced durability, leading to longer service life and less frequent repairs. The production of GFRC involves less CO2-intensive materials, decreasing the overall carbon footprint relative to HSC, which typically requires higher Portland cement amounts with energy-intensive manufacturing. Lifecycle assessments confirm GFRC's sustainability benefits in bridge components through lower embodied energy and reduced resource depletion, supporting its use in eco-friendly infrastructure projects.
Best Applications for Each Concrete Type
Glass fiber-reinforced concrete (GFRC) excels in architectural bridge components such as facade panels, parapets, and decorative elements due to its lightweight nature, high tensile strength, and enhanced resistance to cracking. High-strength concrete (HSC) suits structural bridge components subjected to heavy loads, including piers, decks, and beams, owing to its superior compressive strength and durability under compressive stress. Selecting GFRC for non-load-bearing elements ensures design flexibility and reduced weight, while HSC provides essential strength and longevity in load-bearing applications.

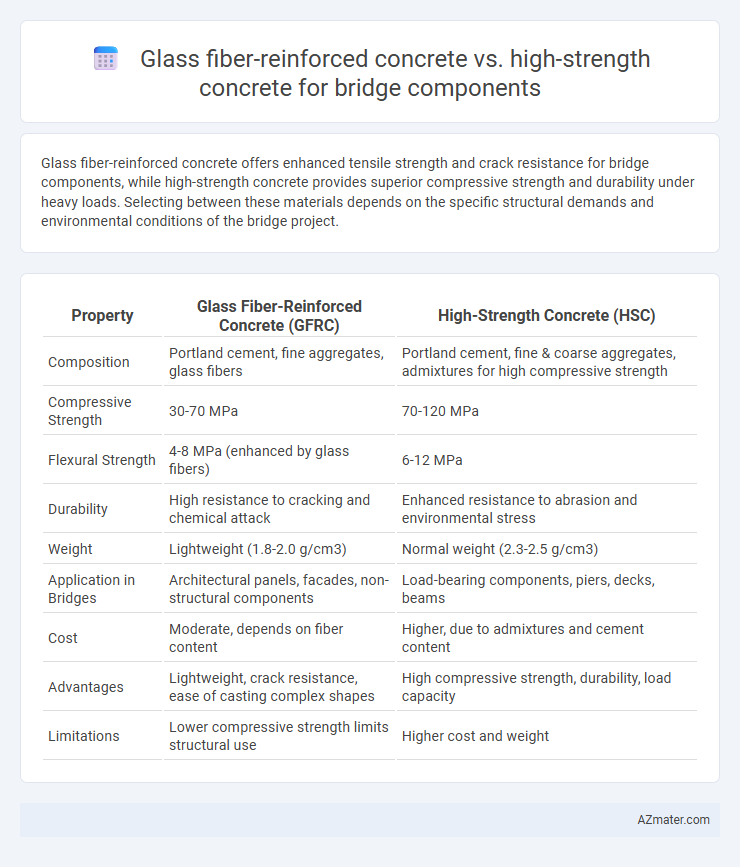

Infographic: Glass fiber-reinforced concrete vs High-strength concrete for Bridge component
