azmater.com Foam concrete offers lightweight insulation with enhanced thermal properties, making it ideal for energy-efficient architectural facades. Ultra-high-performance concrete provides superior strength, durability, and sleek aesthetics, enabling thinner, more resilient facade designs in modern architecture.
Table of Comparison
| Property | Foam Concrete | Ultra-High-Performance Concrete (UHPC) |
|---|---|---|
| Density | 300-1600 kg/m3 (lightweight) | >2400 kg/m3 (high density) |
| Compressive Strength | 1-10 MPa | 120-150 MPa |
| Thermal Insulation | Excellent (due to air voids) | Poor (dense structure) |
| Durability | Moderate, prone to cracking | Exceptional, highly resistant to weathering and chemicals |
| Workability | Easy to shape and mold | Requires precise casting and skilled labor |
| Application in Facades | Suitable for lightweight, insulated panels | Ideal for slim, load-bearing, and high-strength facade elements |
| Cost | Low to moderate | High |
| Typical Use | Non-structural facade cladding, insulation | Structural facade, architectural feature walls |
Introduction to Foam Concrete and Ultra-High-Performance Concrete
Foam concrete features a lightweight, porous structure created by mixing cement slurry with foam, providing excellent thermal insulation and fire resistance properties that are ideal for architectural facades. Ultra-high-performance concrete (UHPC) is a dense, fiber-reinforced material with compressive strengths exceeding 150 MPa, offering exceptional durability and aesthetic flexibility for complex facade designs. Both materials serve distinct purposes in facade construction, where foam concrete prioritizes insulation and weight reduction, while UHPC emphasizes strength and intricate architectural expression.
Material Composition and Manufacturing Processes
Foam concrete consists of cement, water, fine aggregates, and pre-formed foam to create a lightweight, porous structure, while ultra-high-performance concrete (UHPC) incorporates a high cement content, fine silica sand, superplasticizers, and steel fibers to achieve exceptional strength and durability. Foam concrete manufacturing involves mixing foam into the cementitious slurry to control density and insulation properties, whereas UHPC requires precise mixing, extended curing times, and often steam curing to optimize particle packing and fiber distribution. The material composition and manufacturing processes directly impact the thermal insulation, structural performance, and surface finish qualities essential for architectural facade applications.
Mechanical Strength Comparison
Foam concrete exhibits lower compressive strength, typically ranging from 2 to 15 MPa, making it suitable for lightweight, insulation-focused architectural facades but limited in load-bearing capabilities. Ultra-high-performance concrete (UHPC) achieves compressive strengths exceeding 150 MPa due to its dense microstructure and advanced admixtures, providing superior mechanical strength and durability for facade applications exposed to extreme loads and harsh environments. The choice between foam concrete and UHPC hinges on balancing structural demands with thermal performance, where UHPC offers unmatched mechanical robustness for high-stress, complex facade geometries.
Thermal and Acoustic Insulation Properties
Foam concrete provides superior thermal insulation due to its high air content and low density, making it ideal for energy-efficient architectural facades. Ultra-high-performance concrete (UHPC), while significantly stronger and more durable, offers limited thermal insulation but excels in acoustic insulation by reducing sound transmission through dense, compact microstructures. Combining foam concrete's thermal benefits with UHPC's acoustic performance can optimize facade solutions for both energy savings and noise reduction.
Durability and Weather Resistance
Foam concrete offers lightweight insulation with moderate durability, making it suitable for non-load-bearing architectural facades but less resistant to harsh weather conditions. Ultra-high-performance concrete (UHPC) provides exceptional durability and superior weather resistance due to its dense microstructure and high compressive strength, ensuring long-term protection against environmental factors like freeze-thaw cycles, corrosion, and abrasion. The enhanced performance of UHPC significantly reduces maintenance costs and extends the lifespan of architectural facades exposed to challenging climates.
Design Flexibility and Aesthetic Appeal
Foam concrete offers superior design flexibility with its lightweight, easily moldable properties, enabling intricate shapes and complex textures for architectural facades. Ultra-high-performance concrete (UHPC) provides exceptional aesthetic appeal through its smooth finish, fine detail precision, and ability to incorporate various pigments and surface treatments. Both materials enhance facade design, but foam concrete excels in customization and sculptural forms, while UHPC delivers durability with sleek, modern aesthetics.
Weight and Structural Implications for Facades
Foam concrete, with its significantly lower density ranging from 400 to 1600 kg/m3, offers lightweight advantages for architectural facades, reducing the load on the supporting structure and enabling easier handling and installation. Ultra-high-performance concrete (UHPC) exhibits densities around 2400 kg/m3 but provides superior compressive strength above 150 MPa, allowing for thinner, more slender facade elements with enhanced durability and resistance to environmental stressors. Selecting between foam concrete and UHPC involves balancing weight reduction benefits against structural performance requirements, where foam concrete optimizes weight-sensitive applications and UHPC excels in high-strength, long-lasting facade designs.
Cost and Sustainability Considerations
Foam concrete offers cost-effective thermal insulation and reduced material consumption, making it a sustainable choice for architectural facades with lower environmental impact due to its lightweight and low cement content. Ultra-high-performance concrete (UHPC) provides superior durability and strength, reducing maintenance costs and extending facade lifespan, though it entails higher initial material and production expenses. The decision between foam concrete and UHPC balances upfront affordability and insulation benefits against long-term resilience and lifecycle sustainability in facade applications.
Installation Techniques and Construction Speed
Foam concrete offers lightweight properties and excellent thermal insulation, enabling faster placement through pumpable mixes and simple formwork, which accelerates installation on architectural facades. Ultra-high-performance concrete (UHPC) requires intricate fabrication methods, including precise casting and curing processes, leading to longer preparation but results in superior durability and fine detail for facade elements. The rapid set time and ease of handling foam concrete enhance overall construction speed, while UHPC's high strength supports thinner facade components but demands specialized labor and equipment, affecting installation timelines.
Selecting the Best Concrete Type for Architectural Facades
Foam concrete offers lightweight properties, excellent thermal insulation, and ease of shaping, making it suitable for non-load-bearing architectural facade panels where energy efficiency is prioritized. Ultra-high-performance concrete (UHPC) provides superior strength, durability, and fine surface finishes, ideal for intricate designs and structural facade elements requiring high impact resistance and longevity. Selecting the best concrete type depends on balancing weight, insulation requirements, structural demands, and aesthetic complexity specific to the architectural facade project.

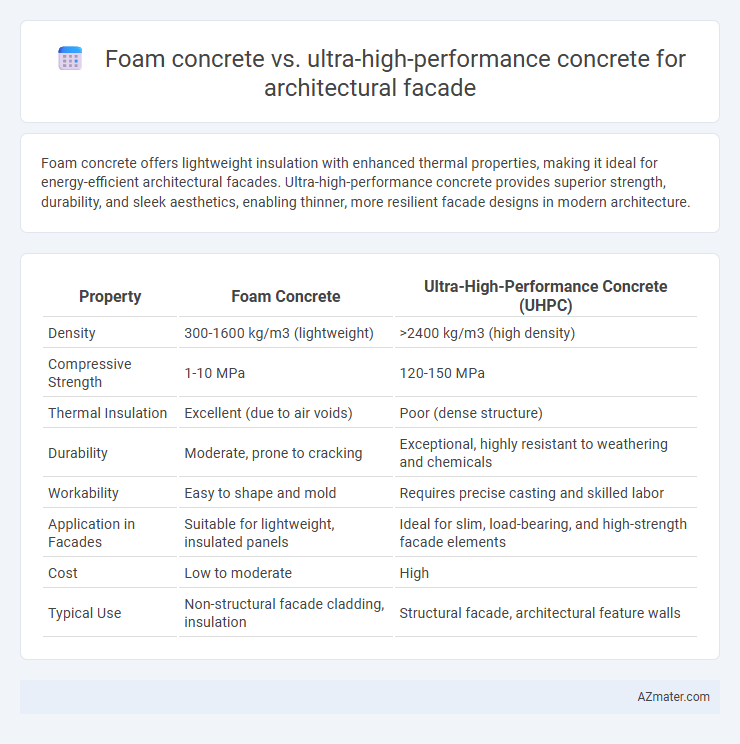

Infographic: Foam concrete vs Ultra-high-performance concrete for Architectural facade
